Washer Fluid Level Switch

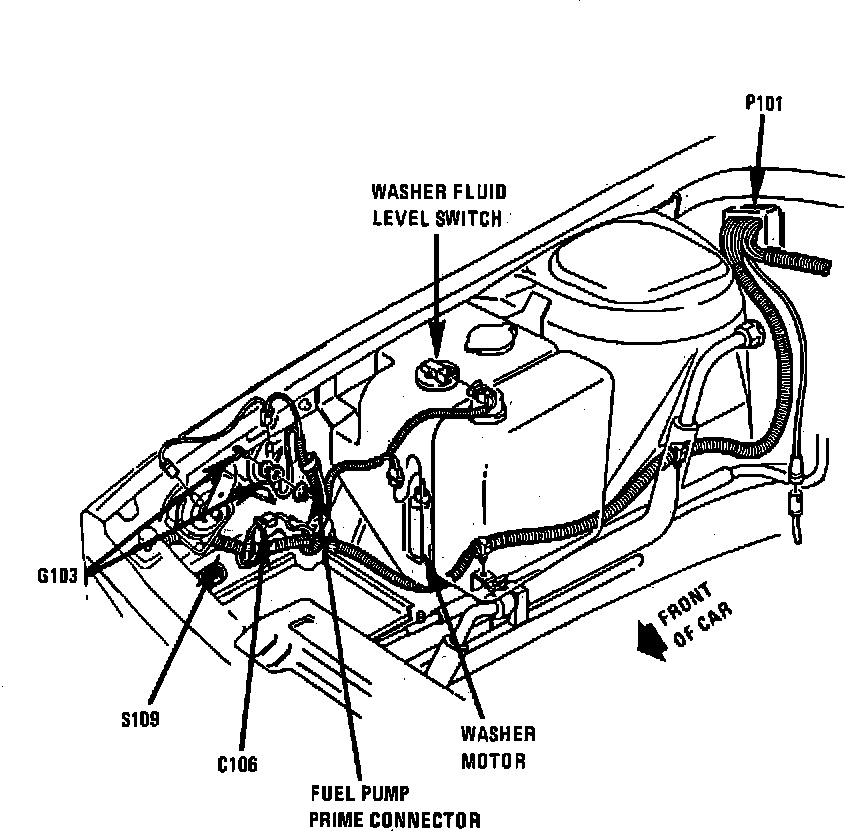

Washer Fluid Level Switch
Fuel Pump Prime Connector.:
RH Side Of Engine Compartment, In Washer Fluid Reservoir
Applicable to: 88 & 98
