Operation CHARM
: Car repair manuals for everyone.
Home
>>
Oldsmobile
>>
1990
>>
Ninety-Eight V6-3800 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
ABS Light
>>
Anti-Lock Indicator Control
Anti-Lock Indicator Control

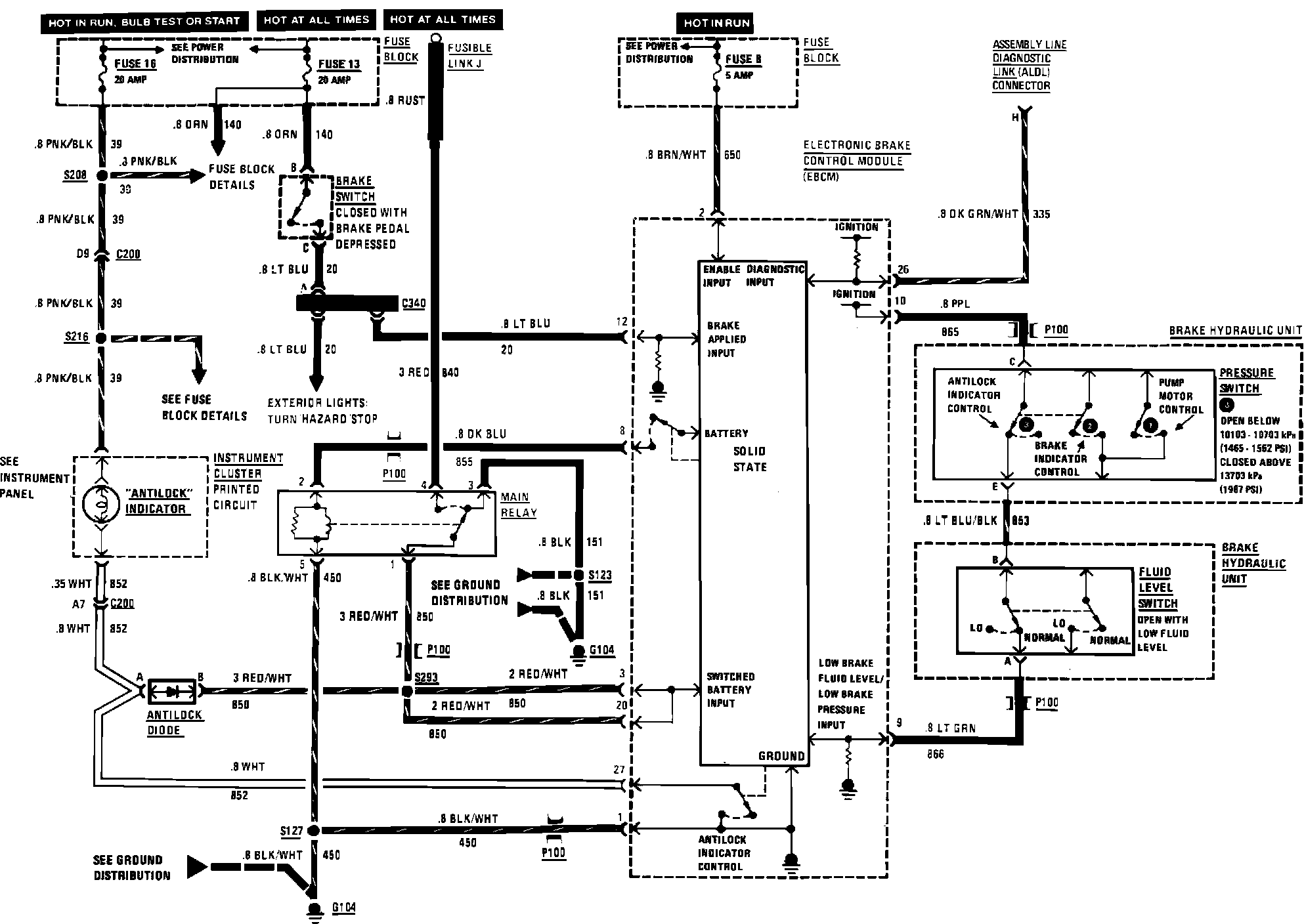

Anti-Lock Brake System. Anti-Lock Indicator Control:
