Home
>>
Oldsmobile
>>
1990
>>
Ninety-Eight V6-3800 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>

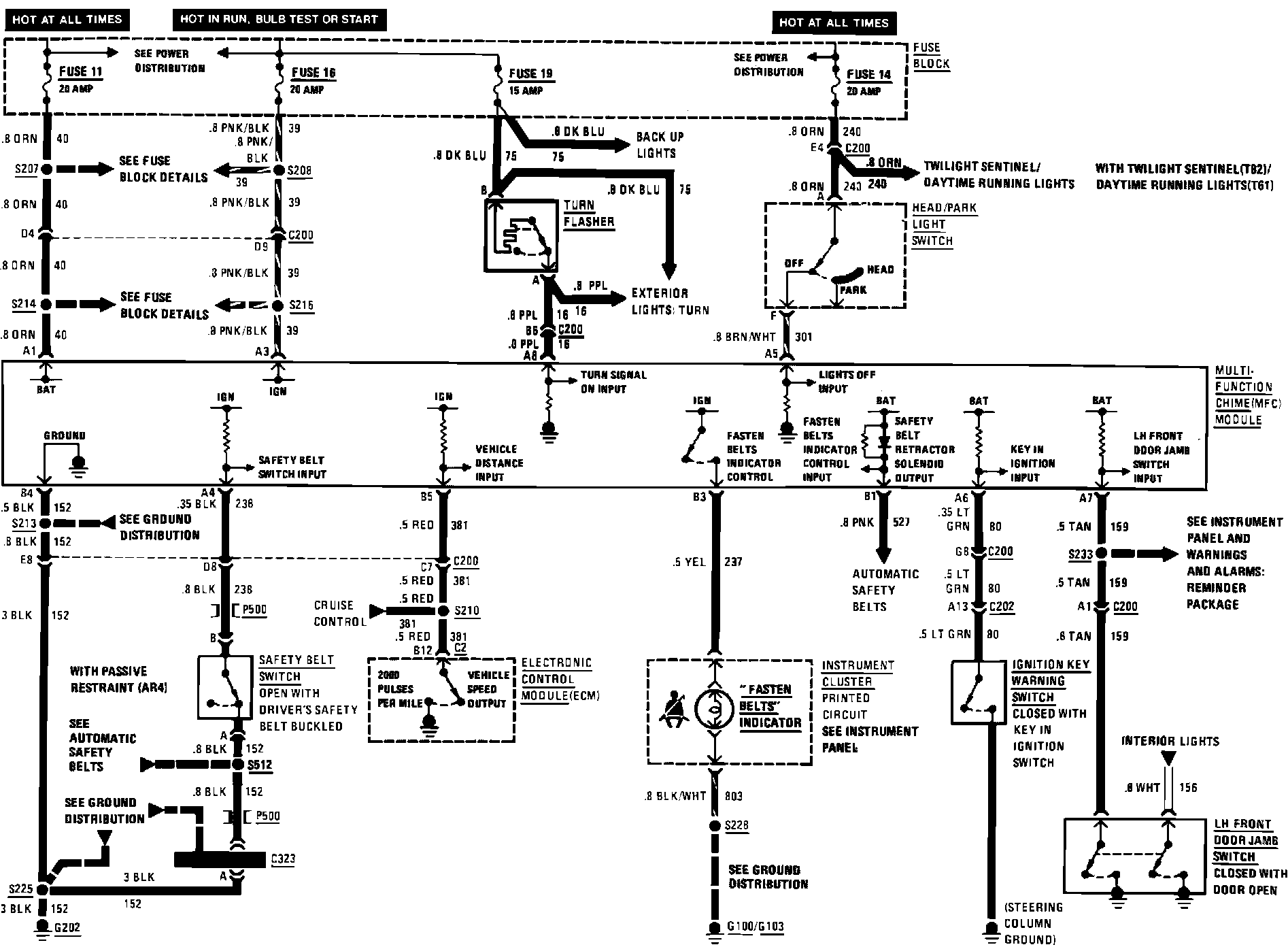

Audible Warning Device
Audible Warning Device
Alarms & Warnings. Chime:
