Instrument Panel, Gauges and Warning Indicators
>>
Volt Meter Gauge
Volt Meter Gauge

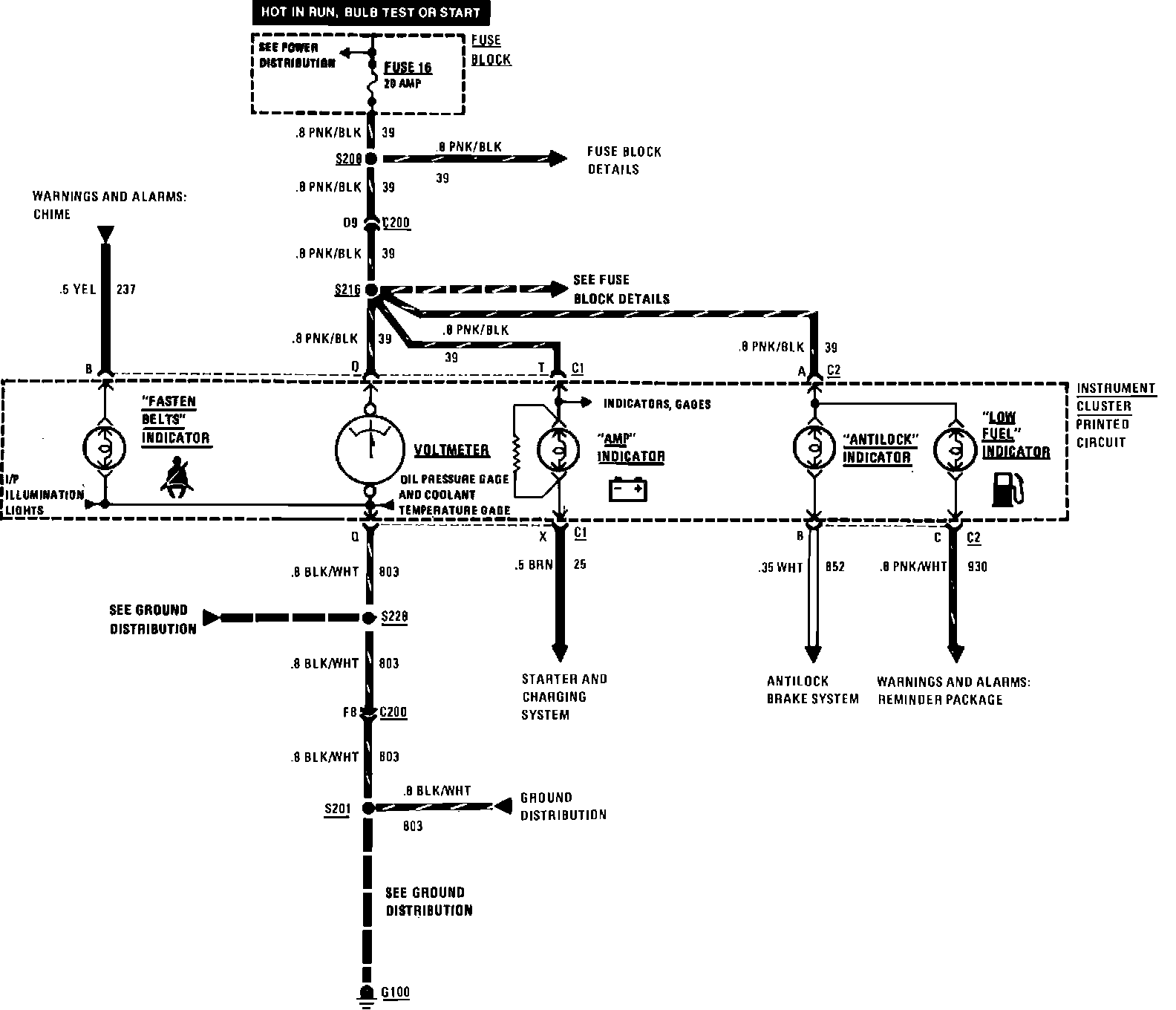

Instrument Panel Gauges Cluster. Indicators & Voltmeter:
