Home >> Oldsmobile >> 1990 >> Ninety-Eight V6-3800 3.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Tail Lamp

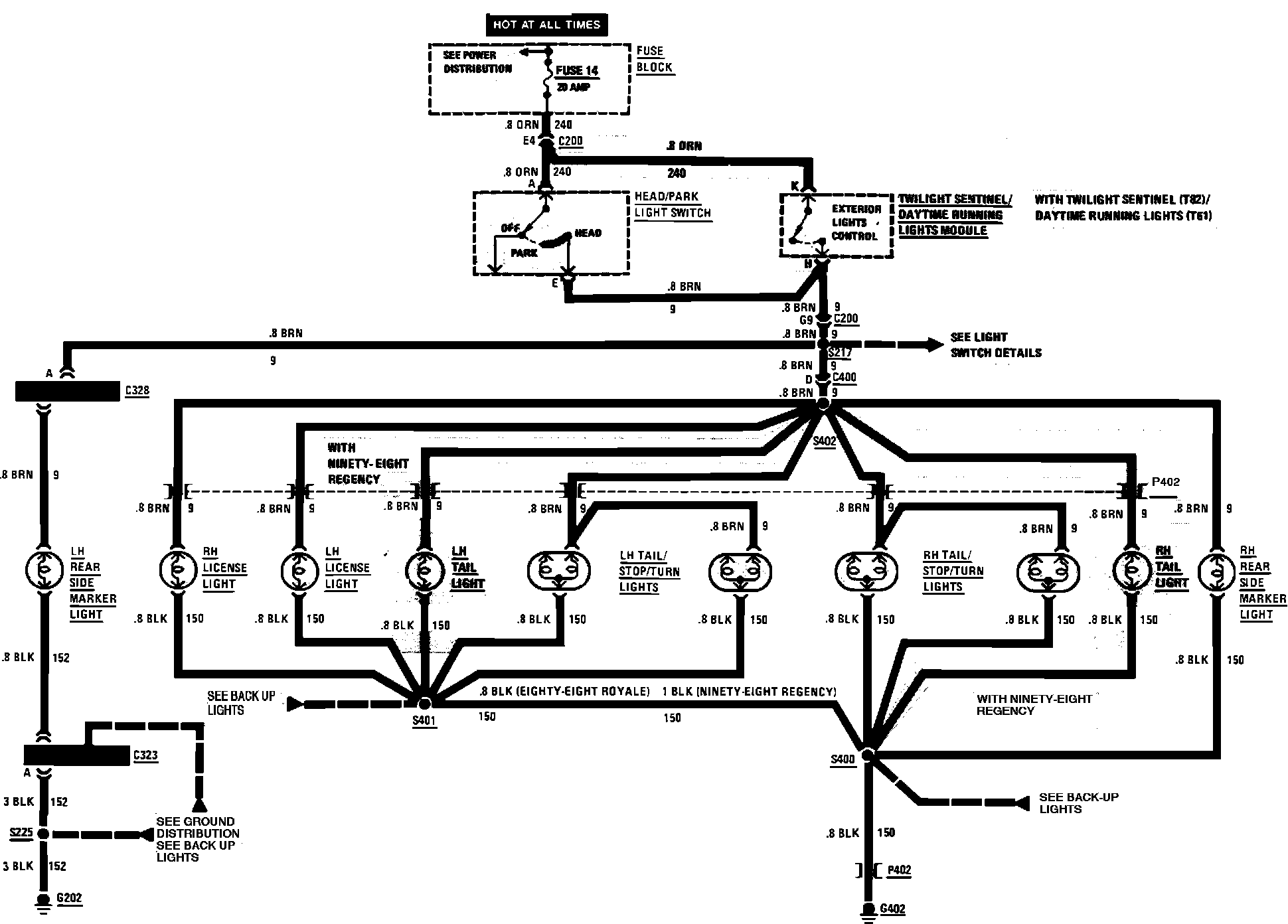

Tail Lamp

Exterior Lamps. License, Rear Marker & Tail:
