Oil Pressure Warning Lamp/Indicator
>>
Digital
Digital

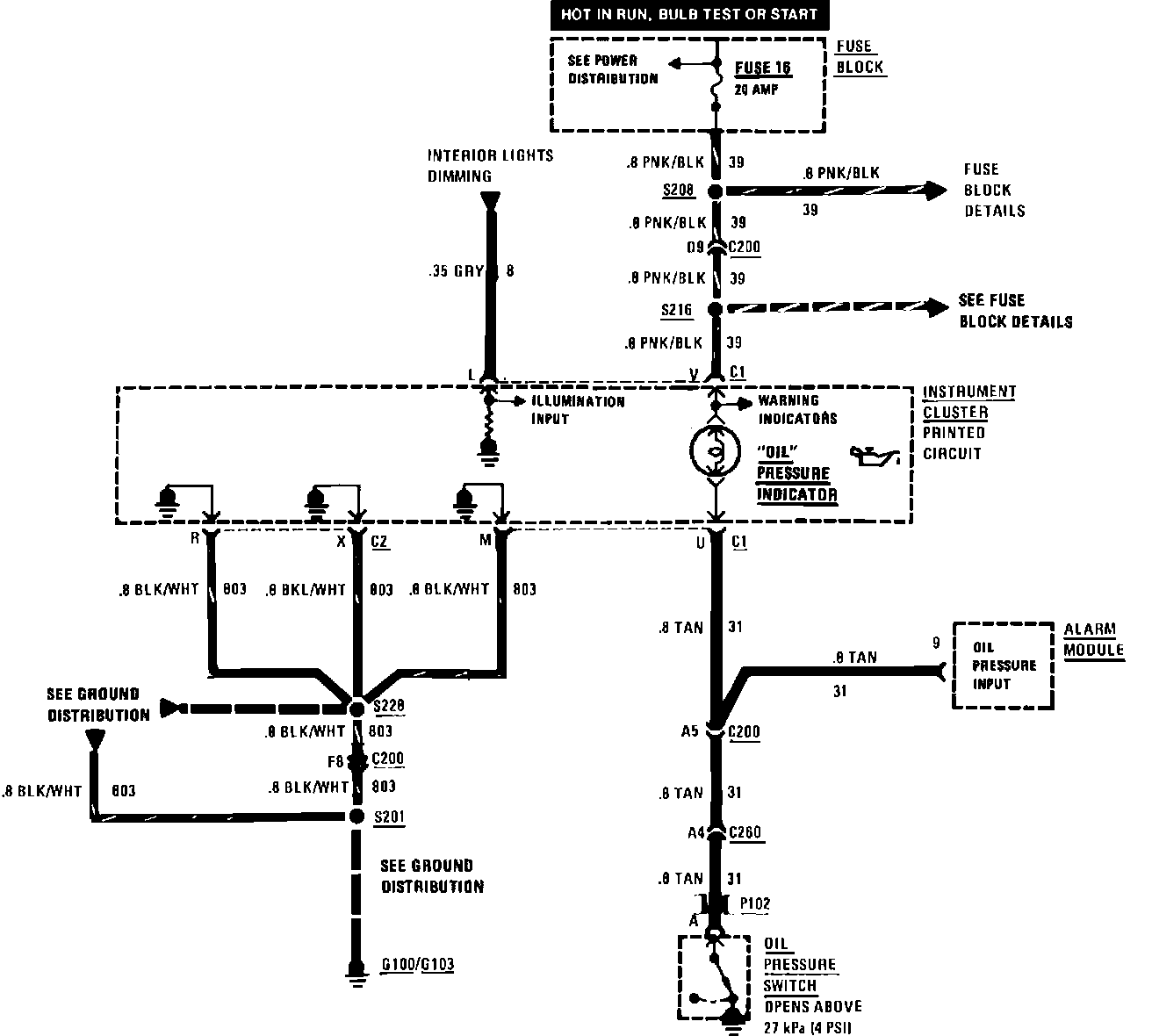

Instrument Panel Digital Cluster. Cluster Illumination & Oil Pressure Indicator:
