Operation CHARM
: Car repair manuals for everyone.
Home
>>
Oldsmobile
>>
1990
>>
Ninety-Eight V6-3800 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>

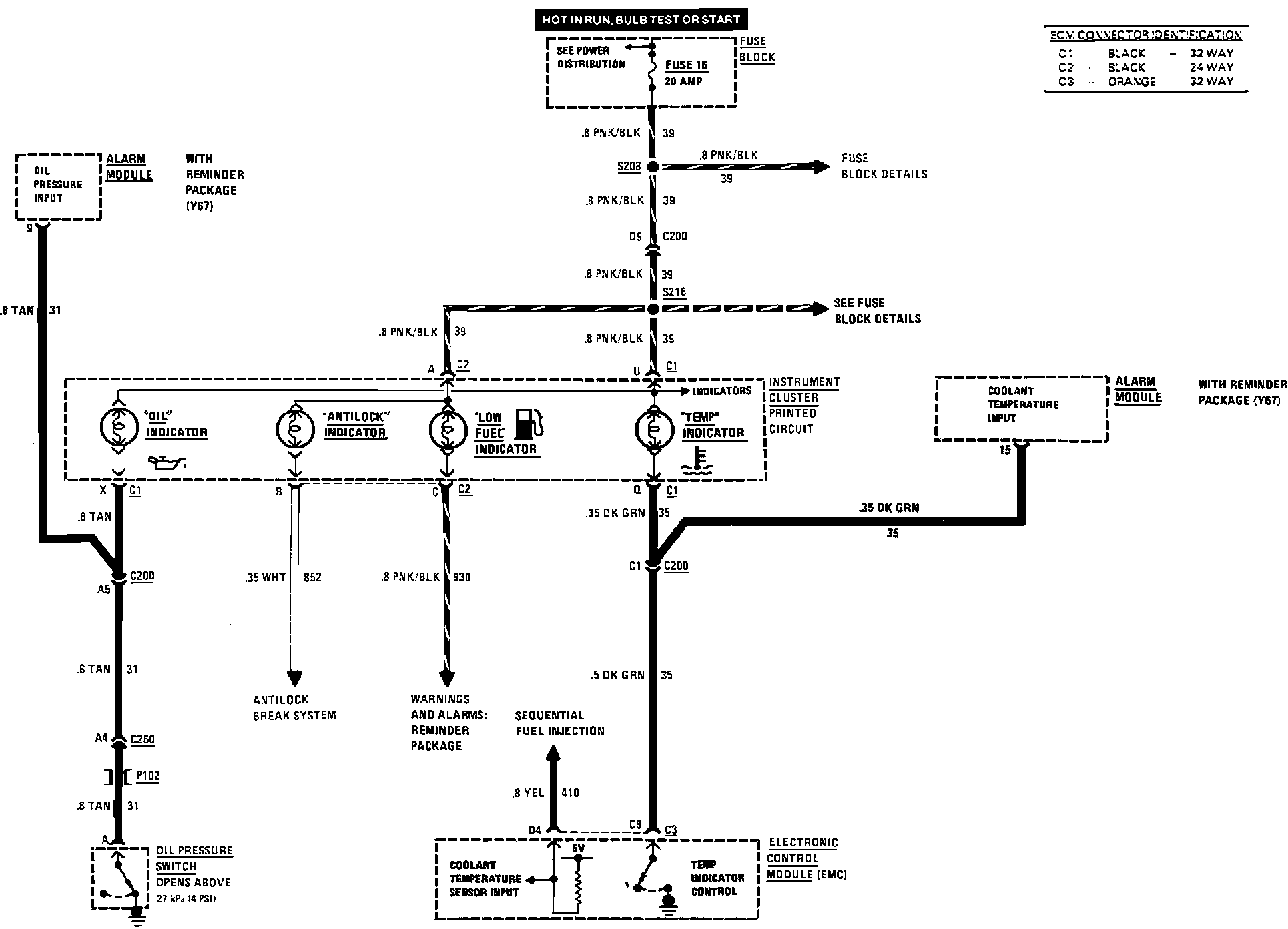

Oil Pressure Warning Lamp/Indicator
>>
Standard
Standard
Instrument Panel Standard Cluster. Indicators. 98 Touring Sedan:
