Ninety-Eight V6-3800 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio, Stereo, and Compact Disc
>>
Less Delco-Bose System
Less Delco-Bose System

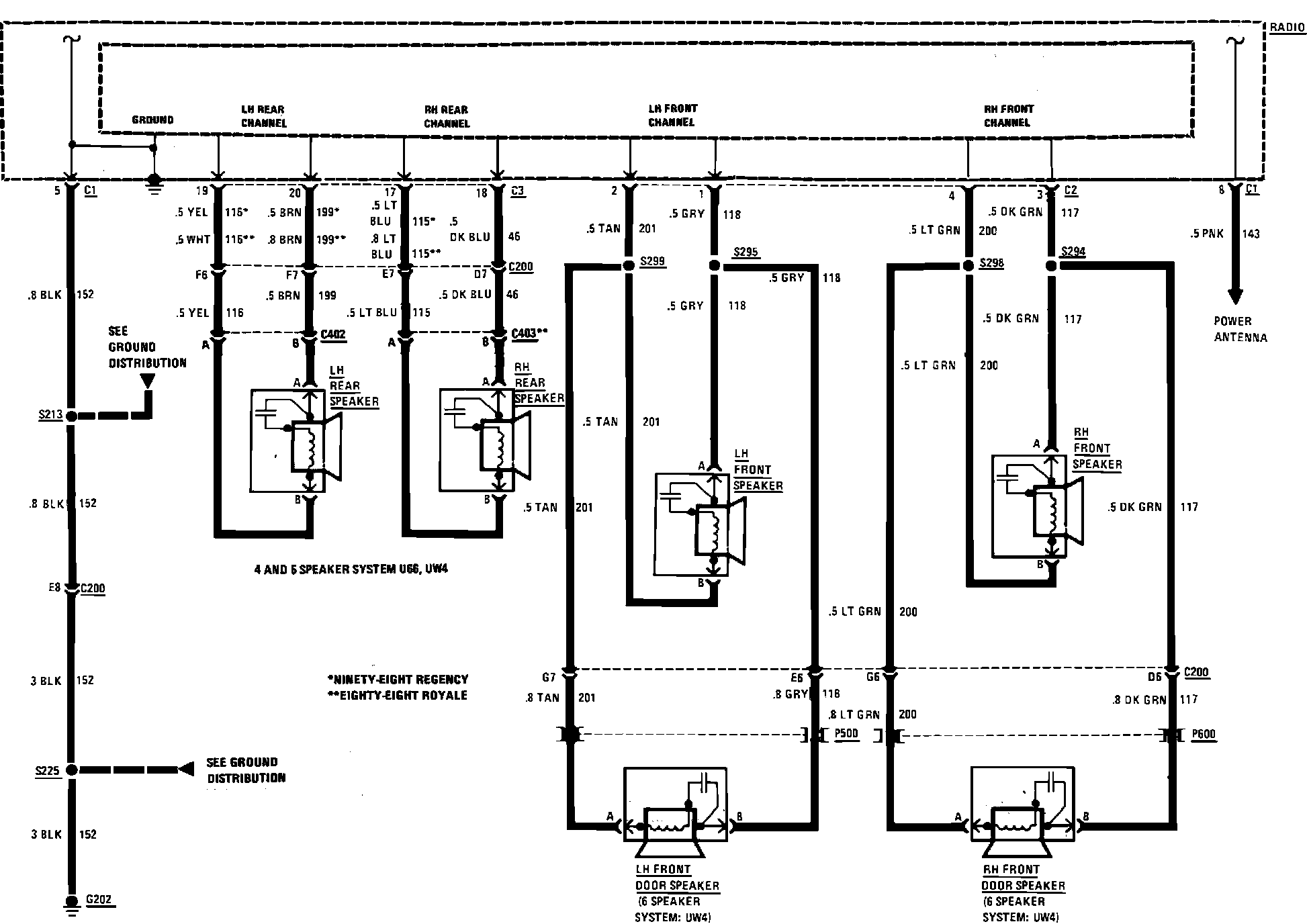

Radio. Less Delco-Bose:
Radio. Less Delco-Bose:
