Home
>>
Oldsmobile
>>
1990
>>
Ninety-Eight V6-3800 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Vacuum and Vapor Hose Diagrams
>>
Heating and Air Conditioning
>>
Air Delivery
Air Delivery

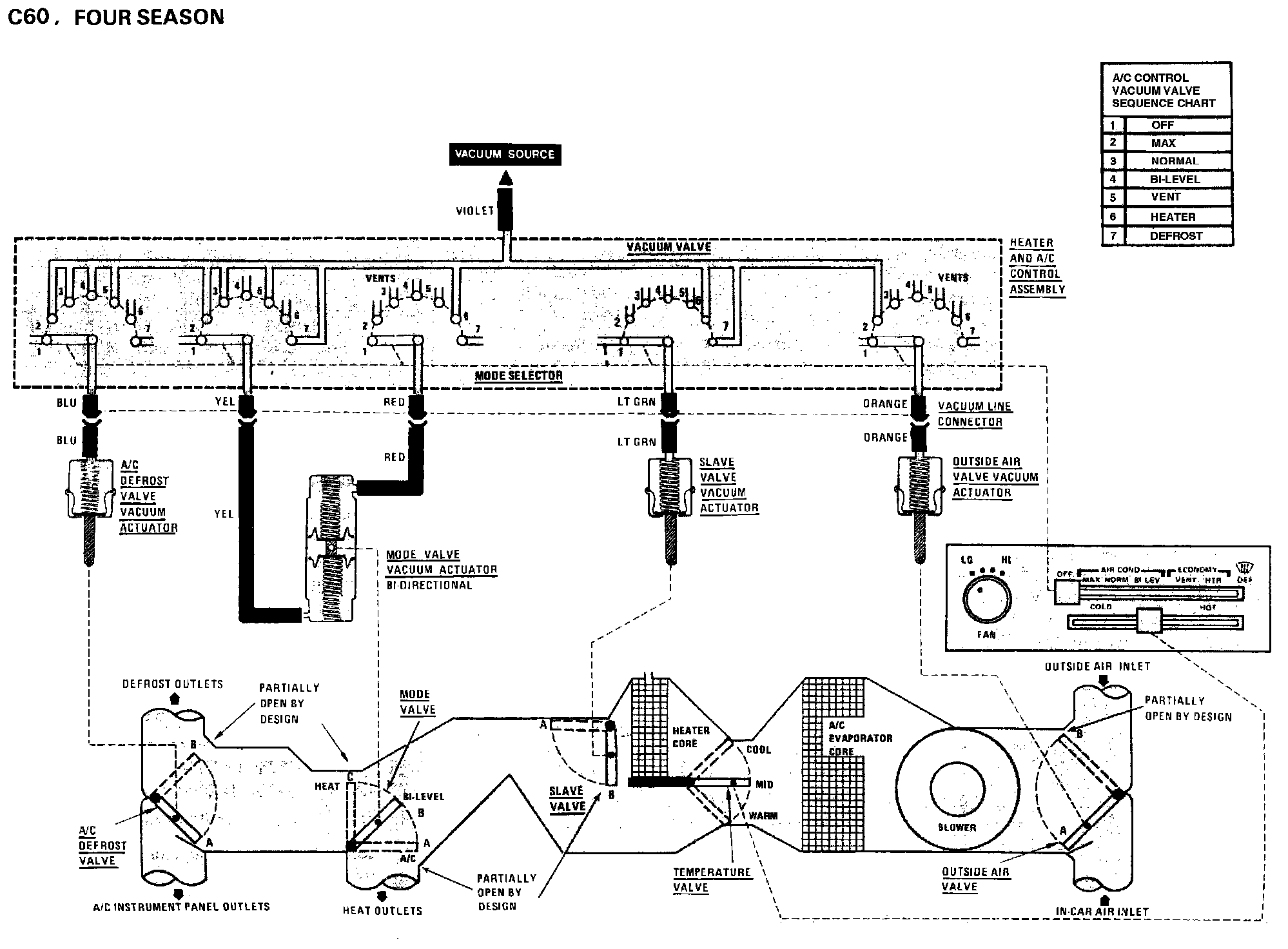

Four Season A/C - C60:
