With Electronic A/C

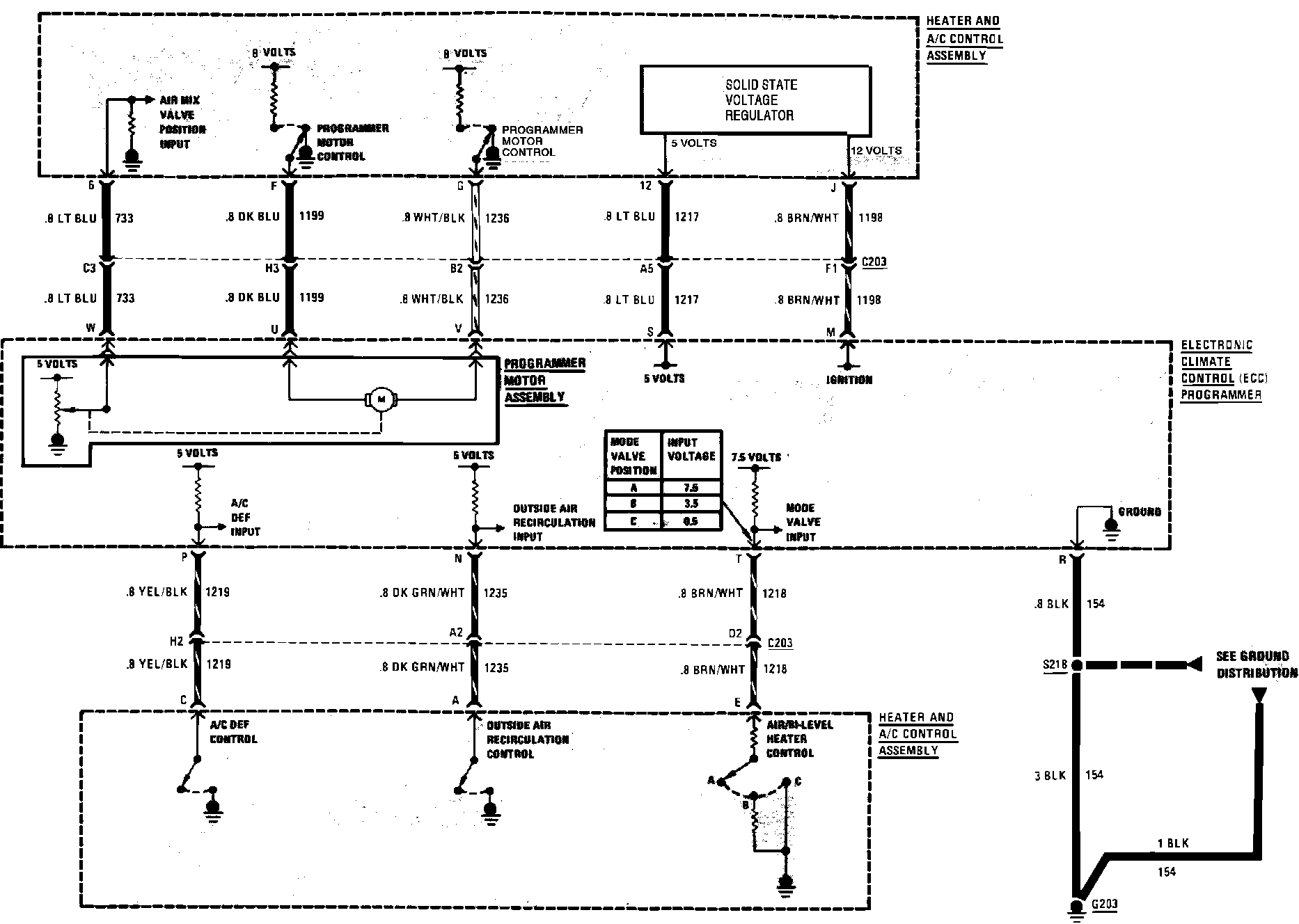

Air Delivery & Temperature Control:

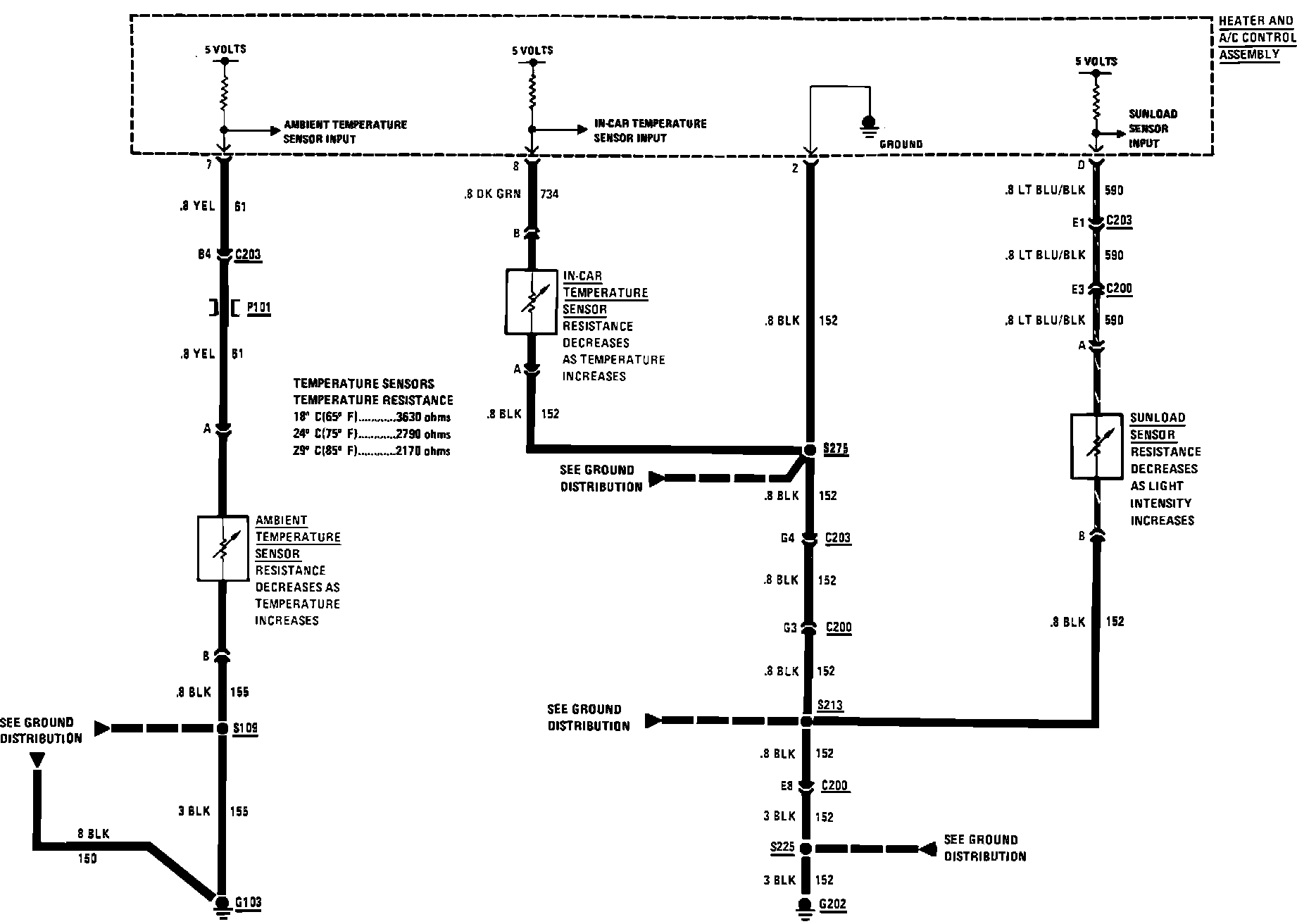

Air Delivery & Temperature Control:

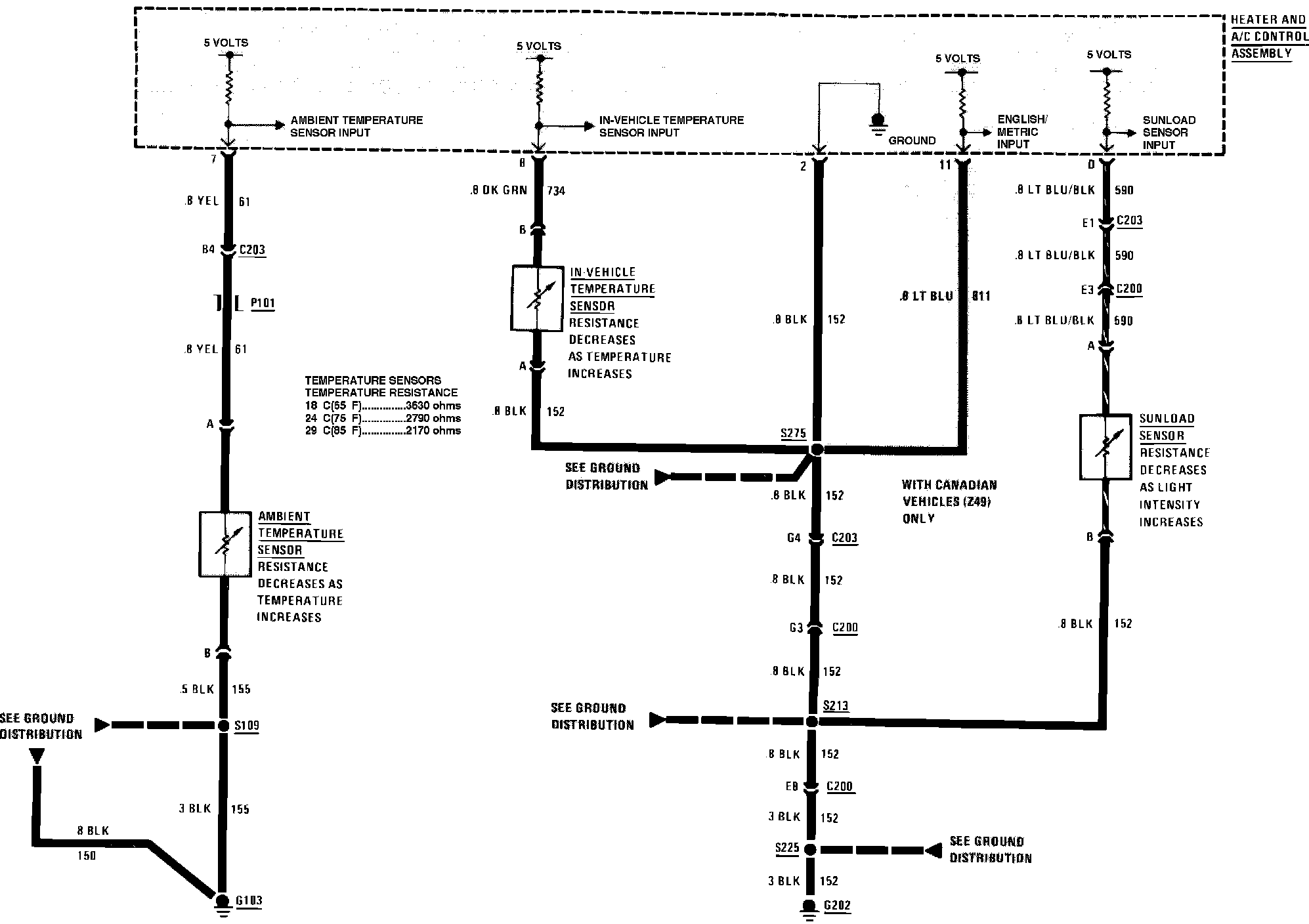

Air Delivery & Temperature Control:

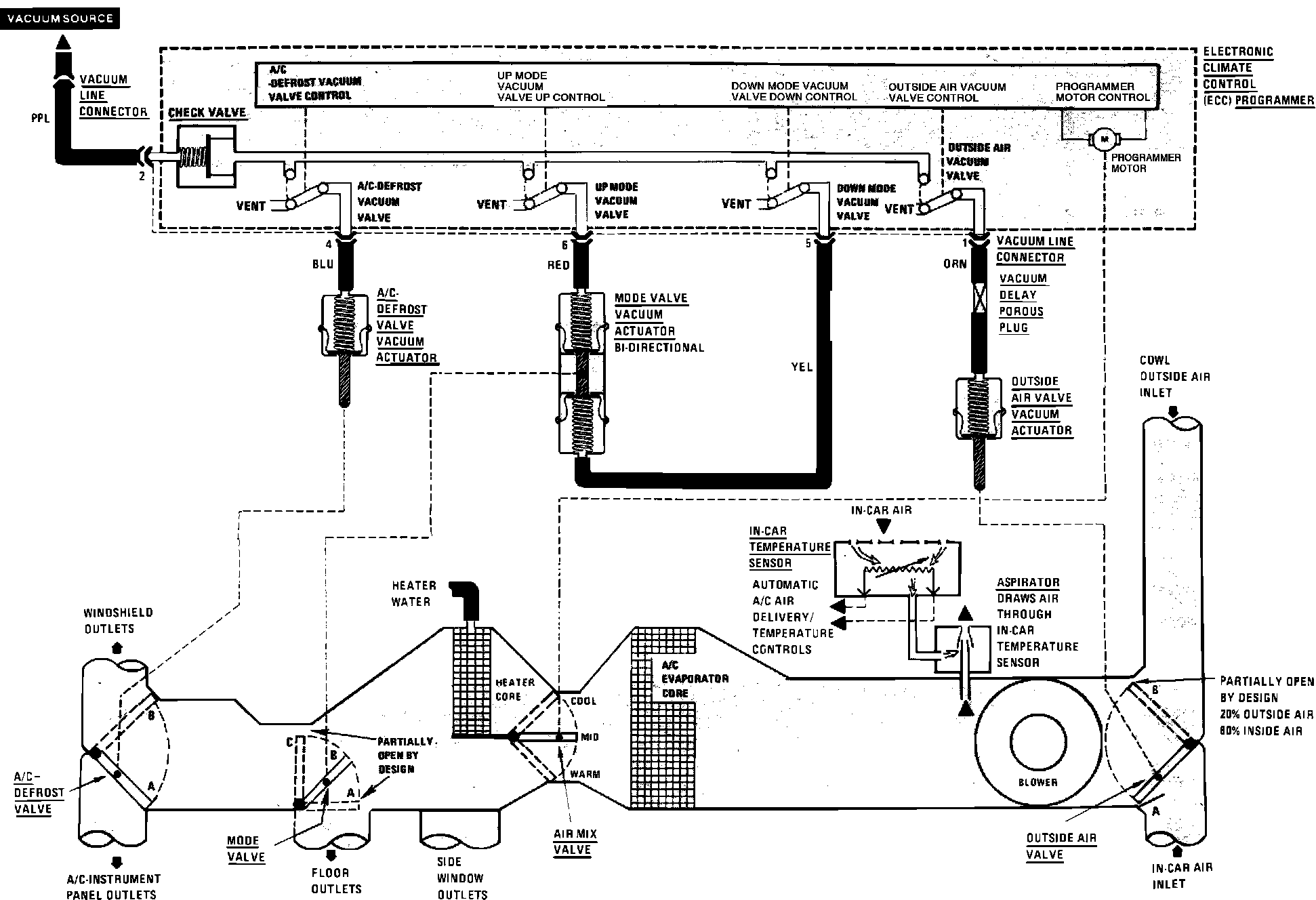

Air Conditioning. Air Delivery. Electronic Temperature Controls:

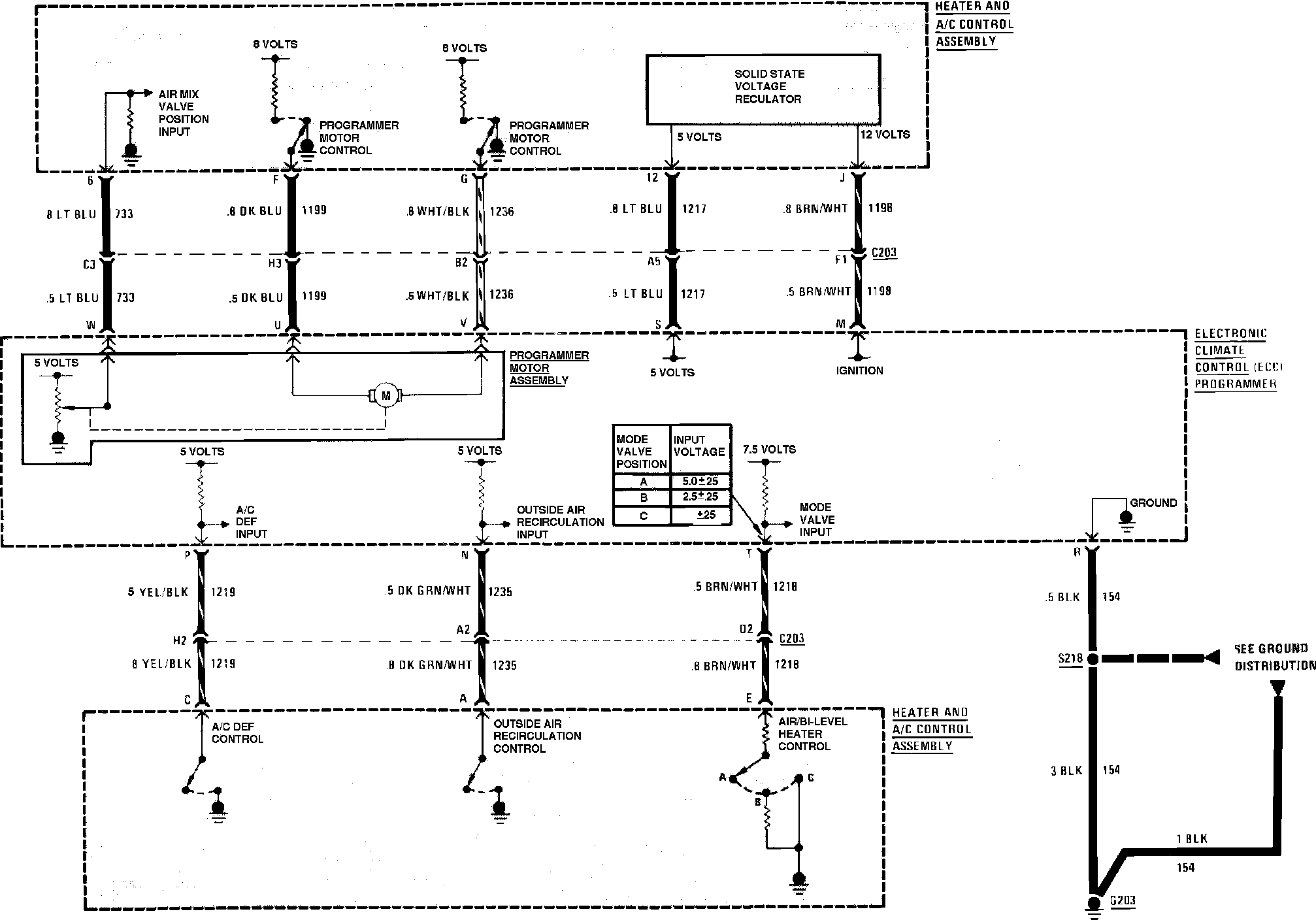

Air Conditioning. Air Delivery. Electronic Temperature Controls:



Air Conditioning. Air Delivery. Electronic Temperature Controls:
