Home
>>
Oldsmobile
>>
1990
>>
Ninety-Eight V6-3800 3.8L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Vacuum and Vapor Hose Diagrams
>>
Air Delivery/Temperature Control
Air Delivery/Temperature Control

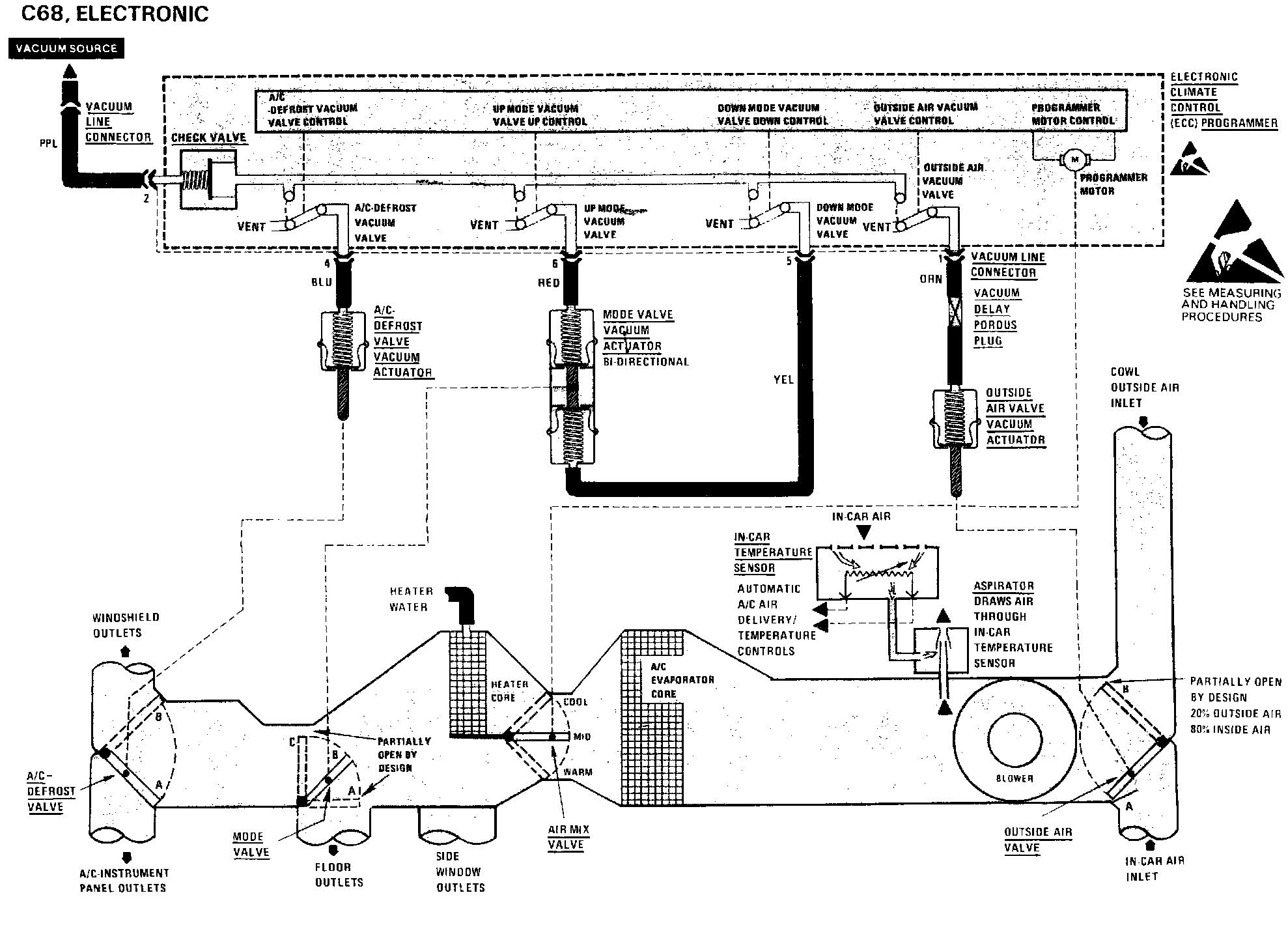

Electronic A/C - C68:
