Instrument Panel, Gauges and Warning Indicators
Instrument Panel, Gauges and Warning Indicators

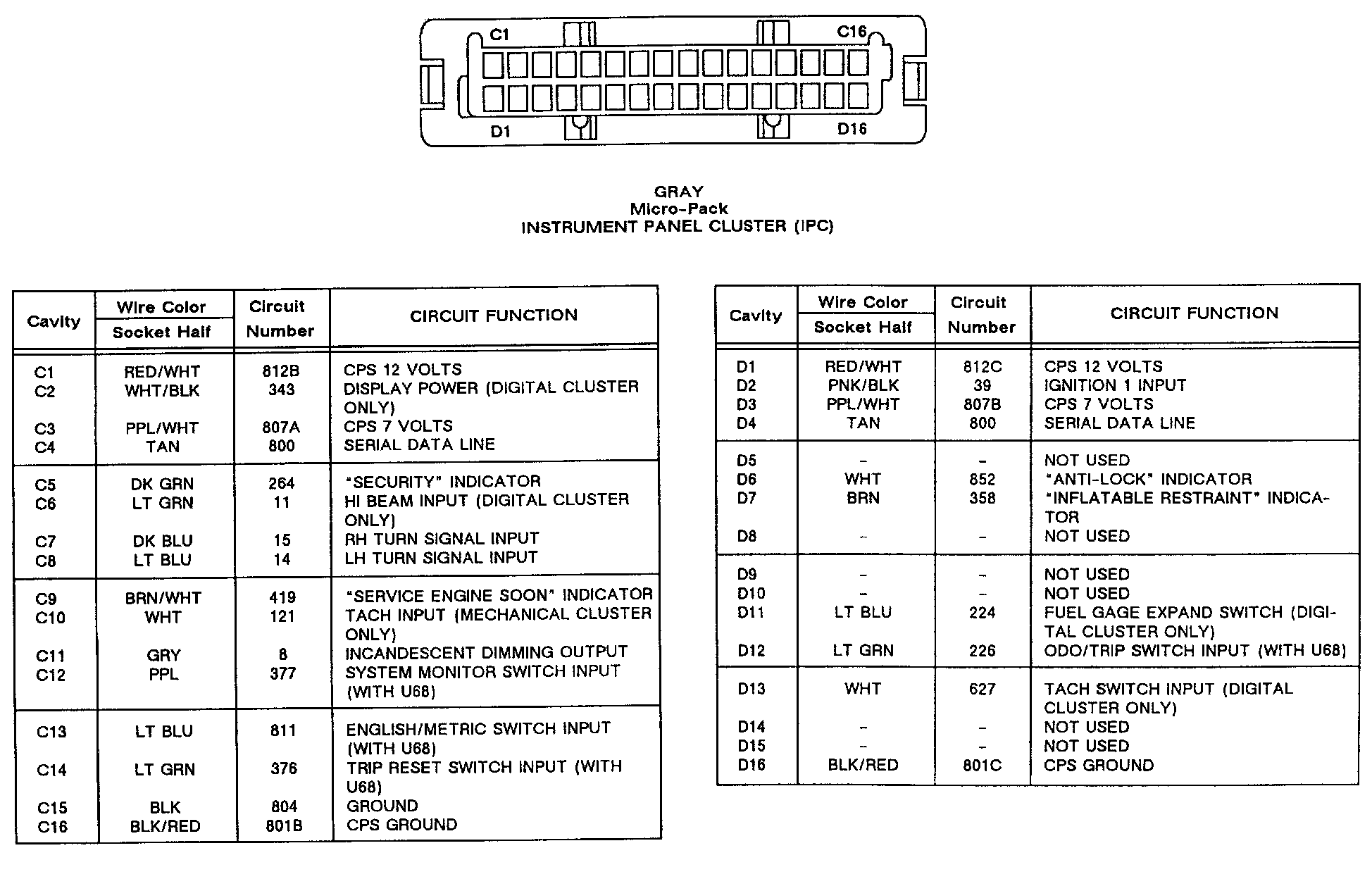

IPC Cluster Connector: W/Digital Or Mechanical Cluster:
