Power Locks
>>
With Keyless Entry
With Keyless Entry

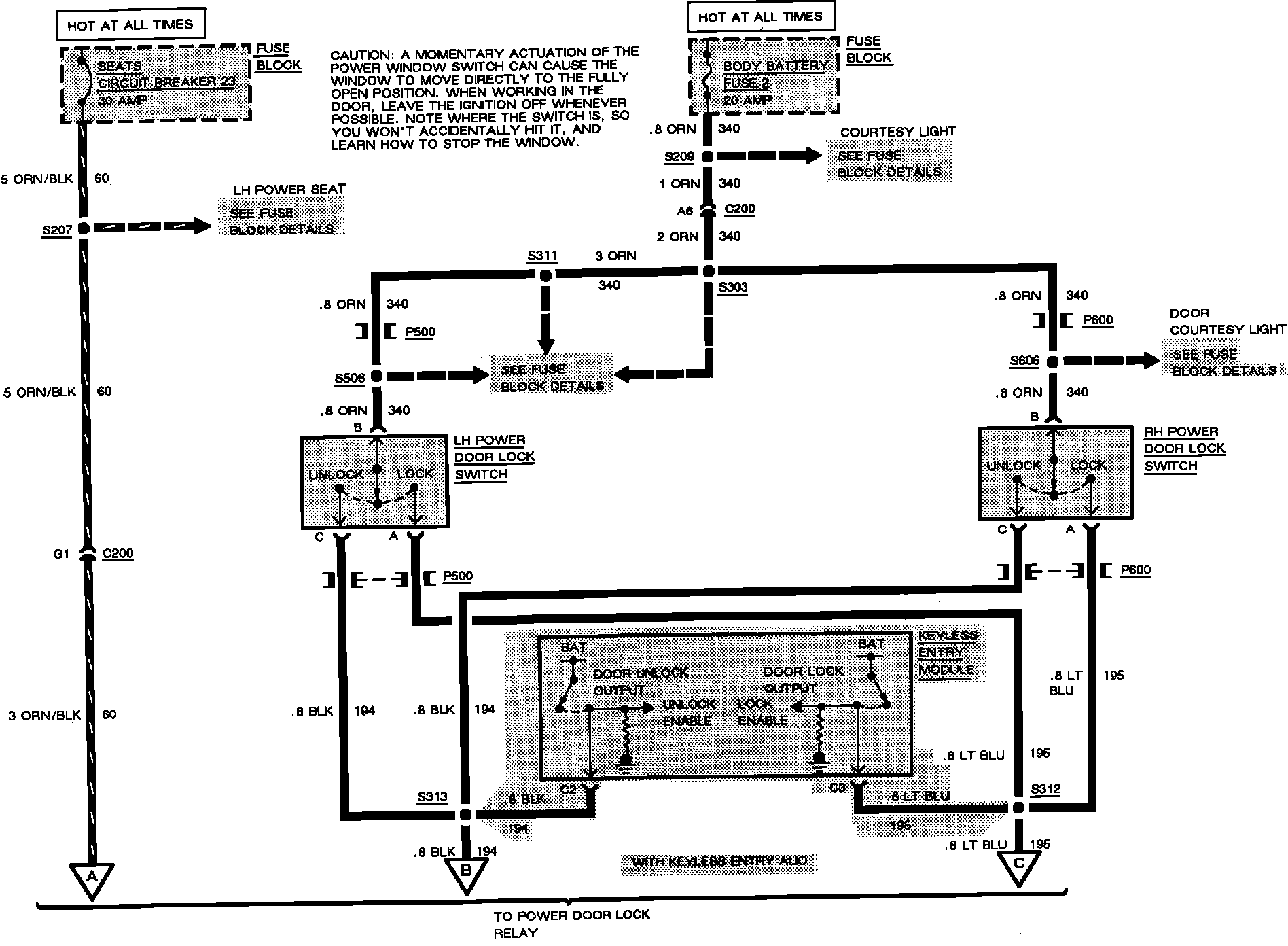

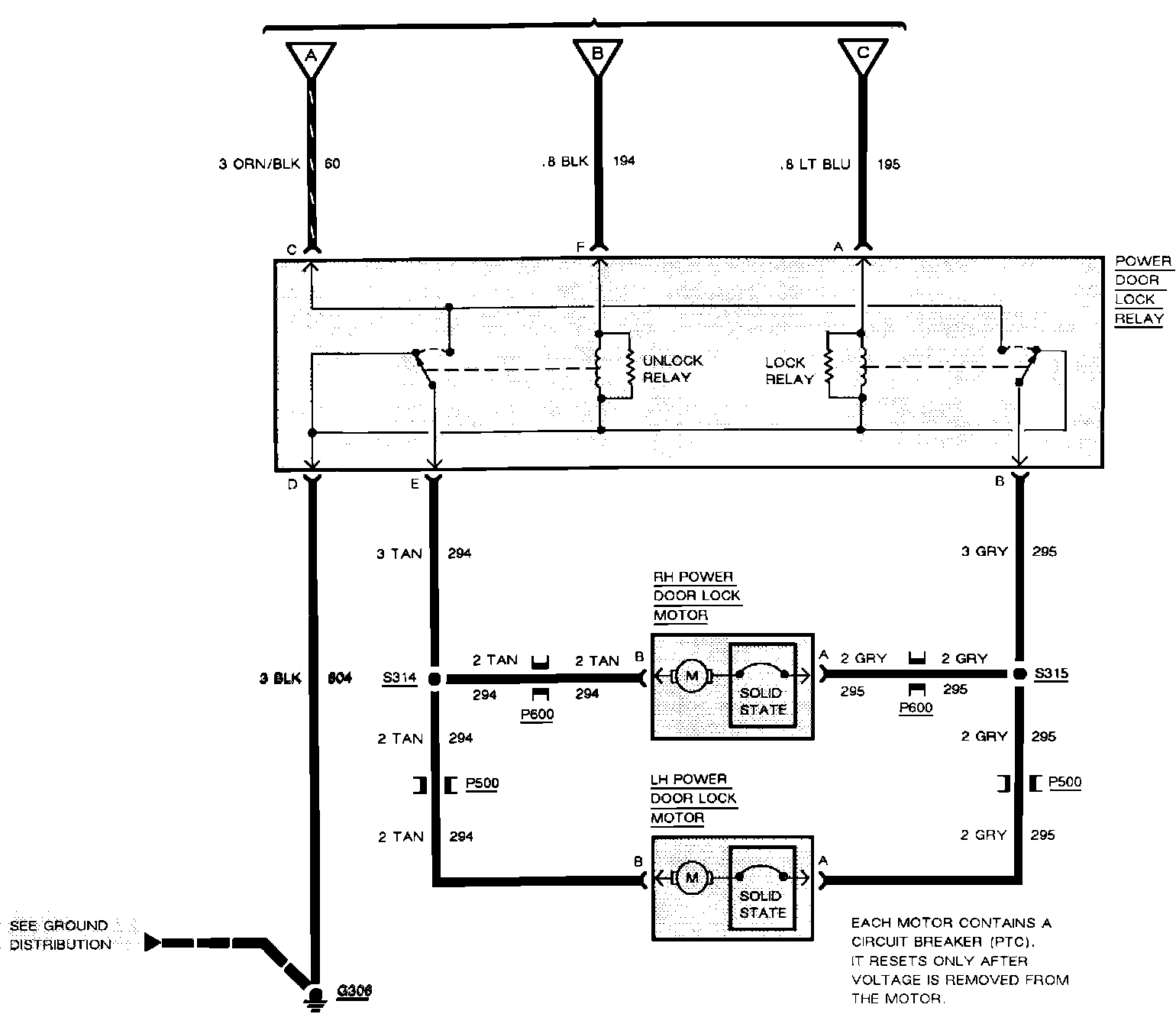

Power Door Locks:
Power Door Locks. Less Keyless Entry:
