Instrument Panel Dimming (with Digital or Mechanical Cluster)

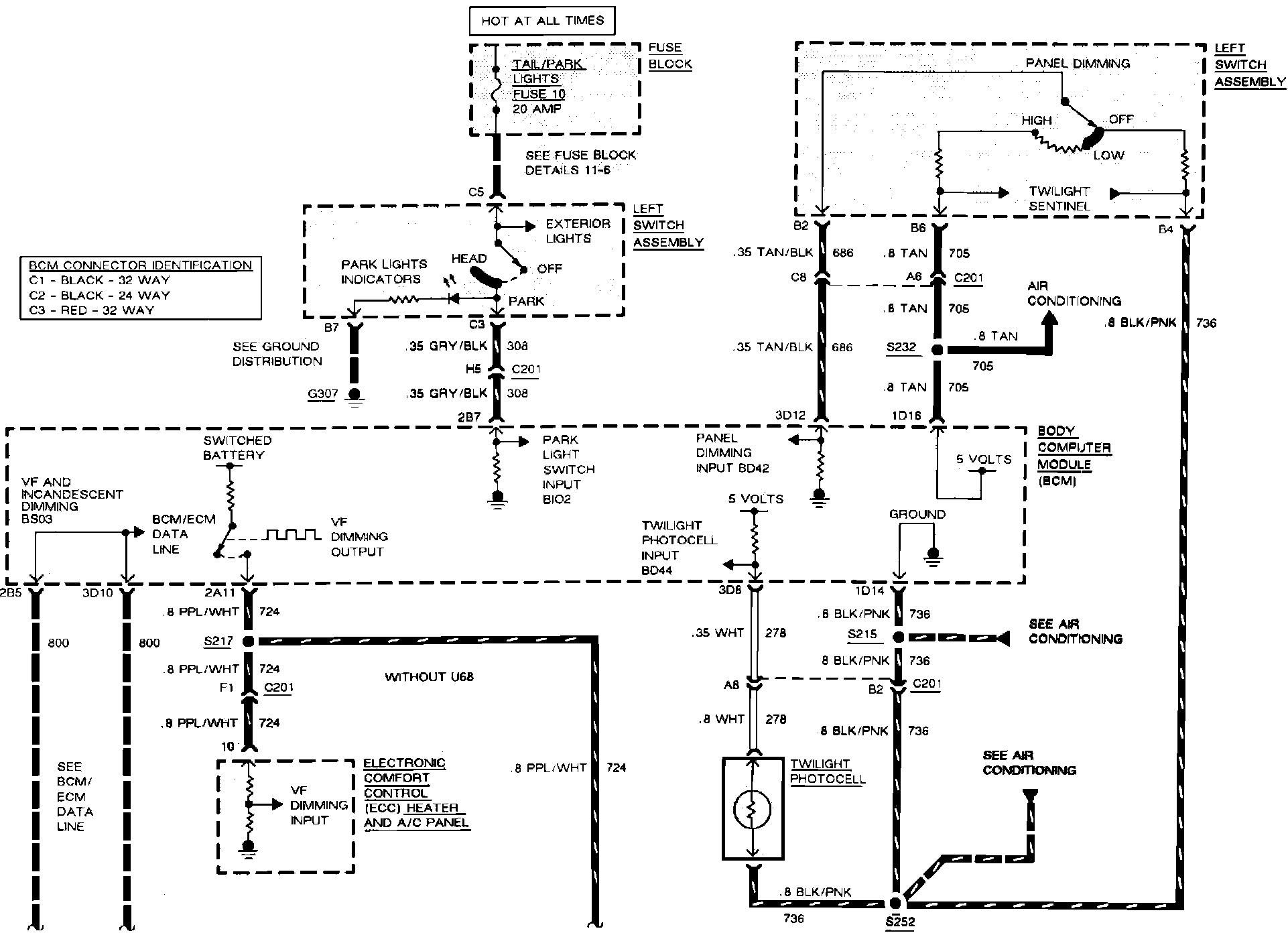

IPC: Dimming W/Digital Or Mechanical Cluster.:



IPC: Dimming W/Digital Or Mechanical Cluster.:



IPC: Dimming W/Digital Or Mechanical Cluster.:



IPC: Dimming W/Digital Or Mechanical Cluster.:
