Power & Grounds
Power & Grounds

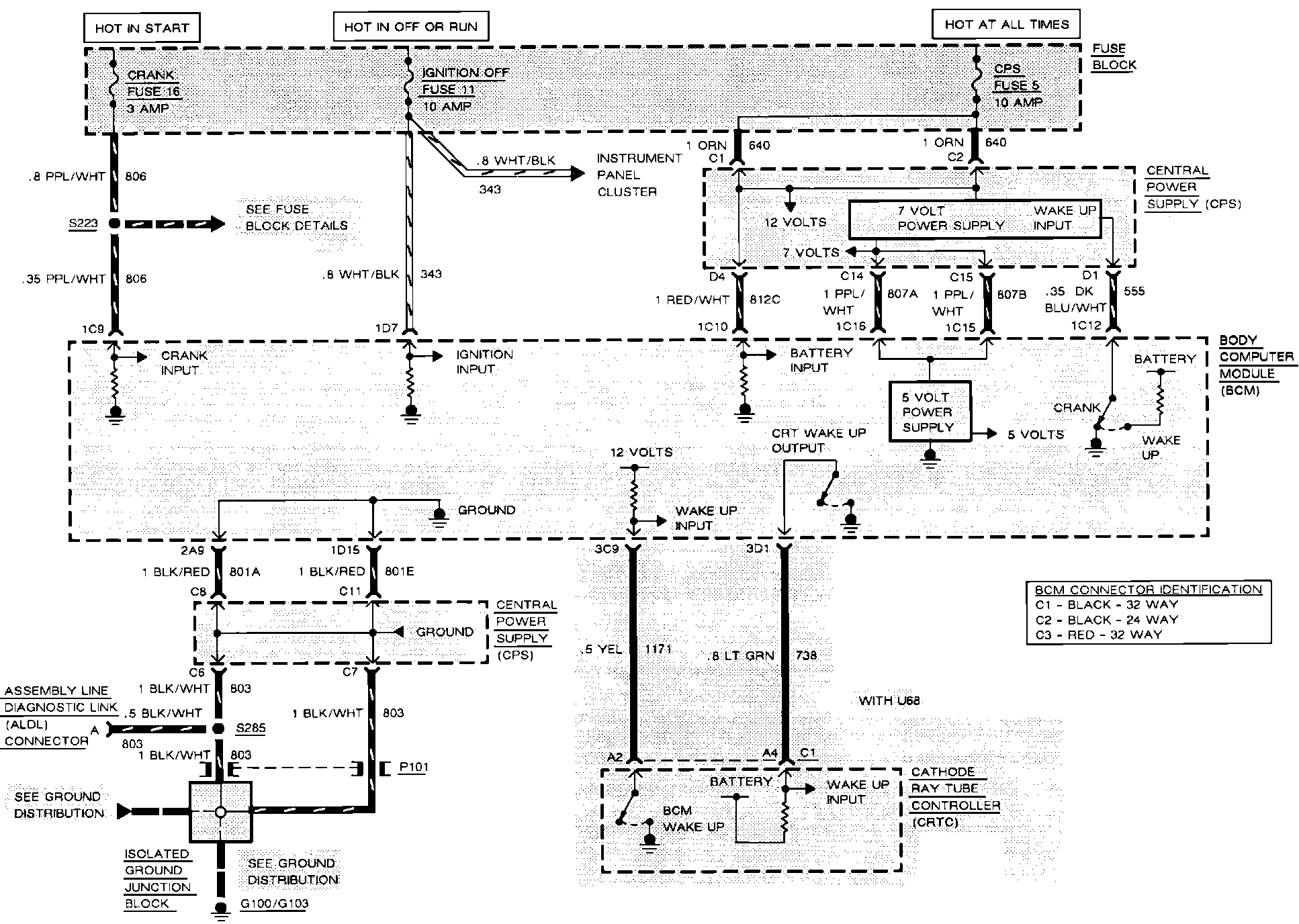

BCM/ECM Data Line Power & Grounds:

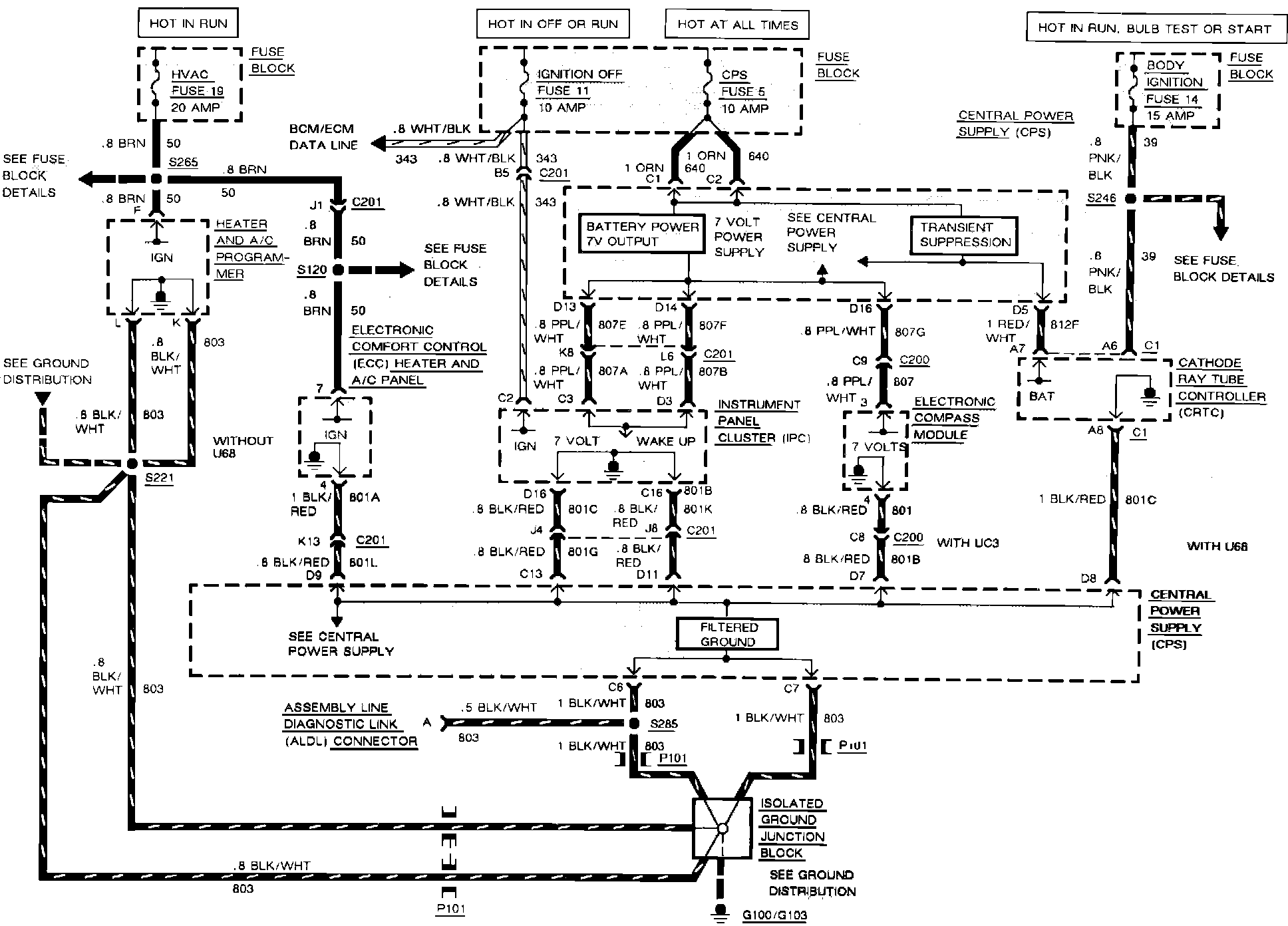

BCM/ECM Data Line Power & Grounds:
