Electrical Diagrams

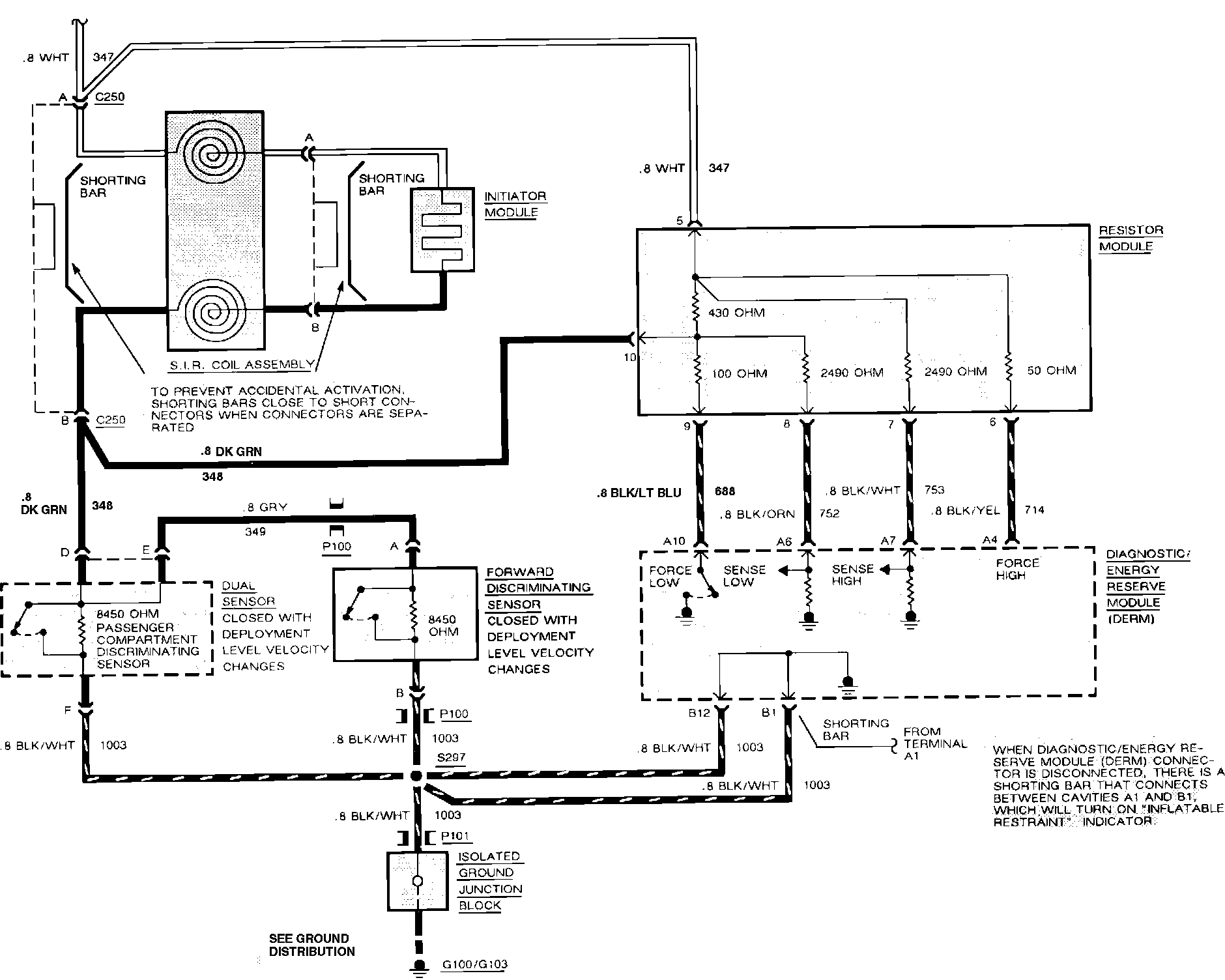

Supplemental Inflatable Restraint System:

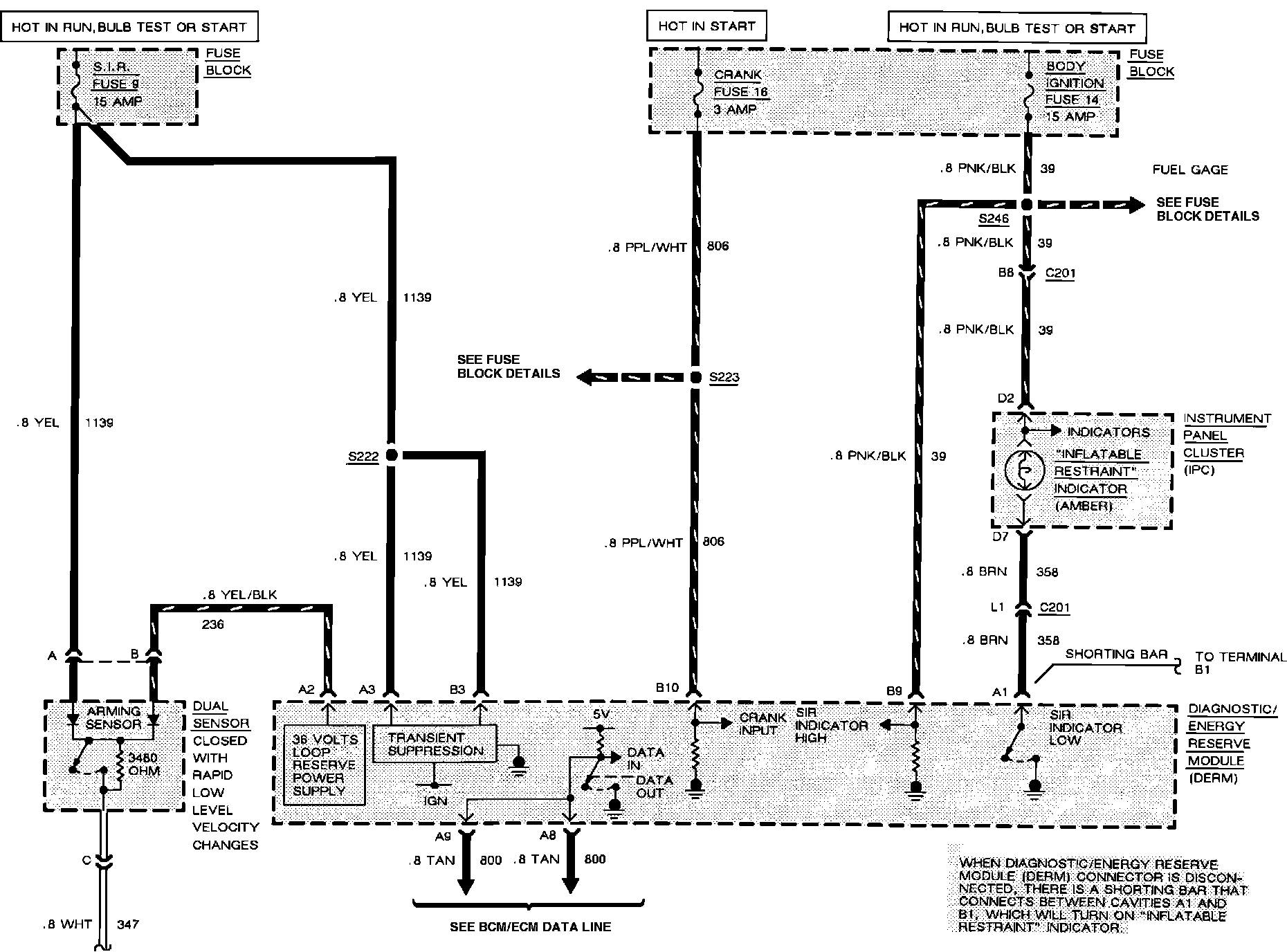

Supplemental Inflatable Restraint System:
