Turn Signals
Turn Signals

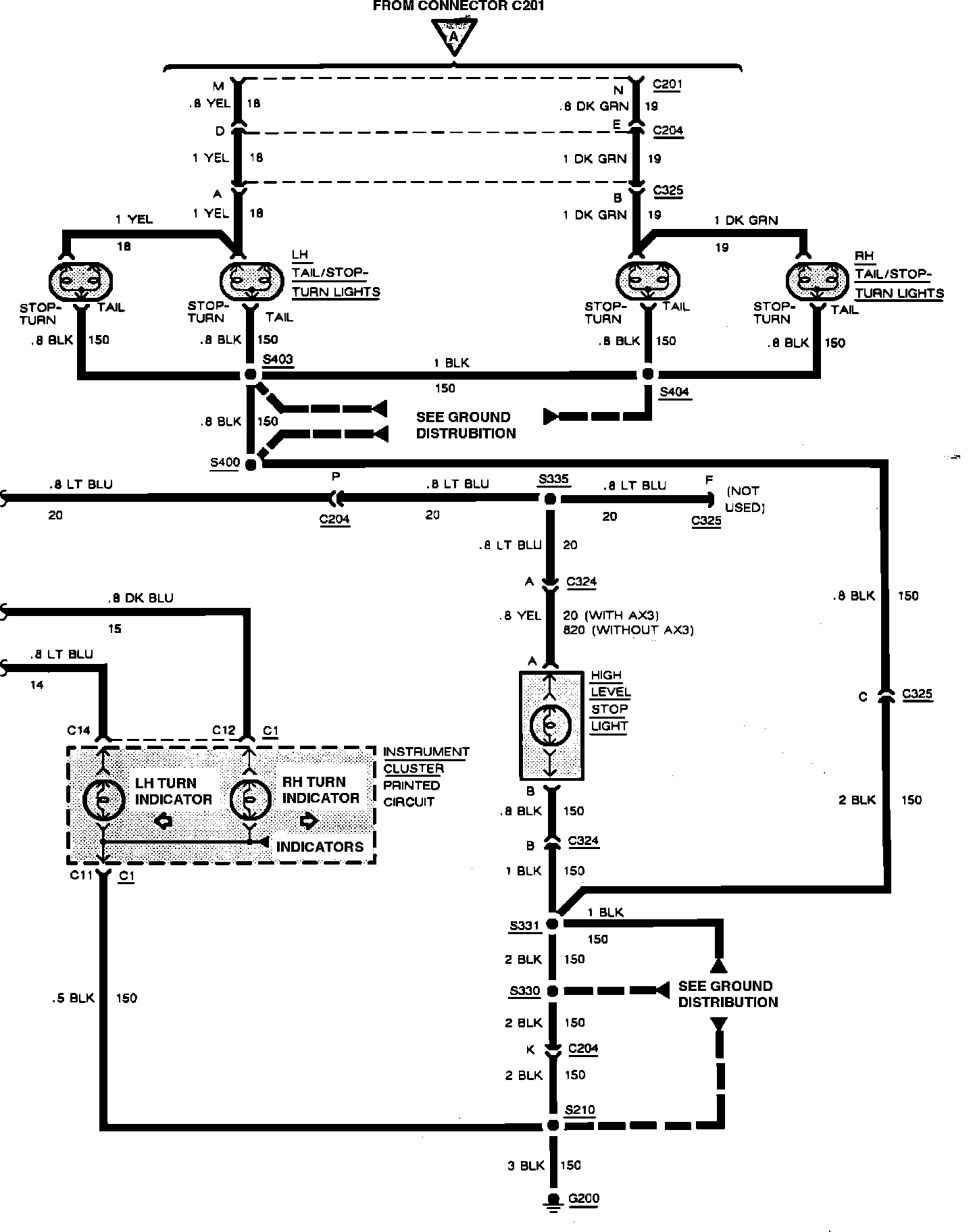

Exterior Lights (Hazard, Front Marker, Front Park, Turn & Stop):
Exterior Lights (Hazard, Front Marker, Front Park, Turn & Stop):
