A/C - Revised Wiring Diagrams & Diagnosis

9232oldsmobile01

NUMBER: 92-U-32

CORP.REF.NO: 218104

DATE: May 1992

SECTION: 1B, 1C, 8A


SUBJECT:
REVISED A/C WIRING DIAGRAMS AND DIAGNOSIS


MODELS/YEARS:
1991-92 CUSTOM CRUISER


1991 and 1992 Electrical Diagnosis Section 8A-68 is being revised to give corrected wiring diagrams and improved air conditioning diagnosis procedures.

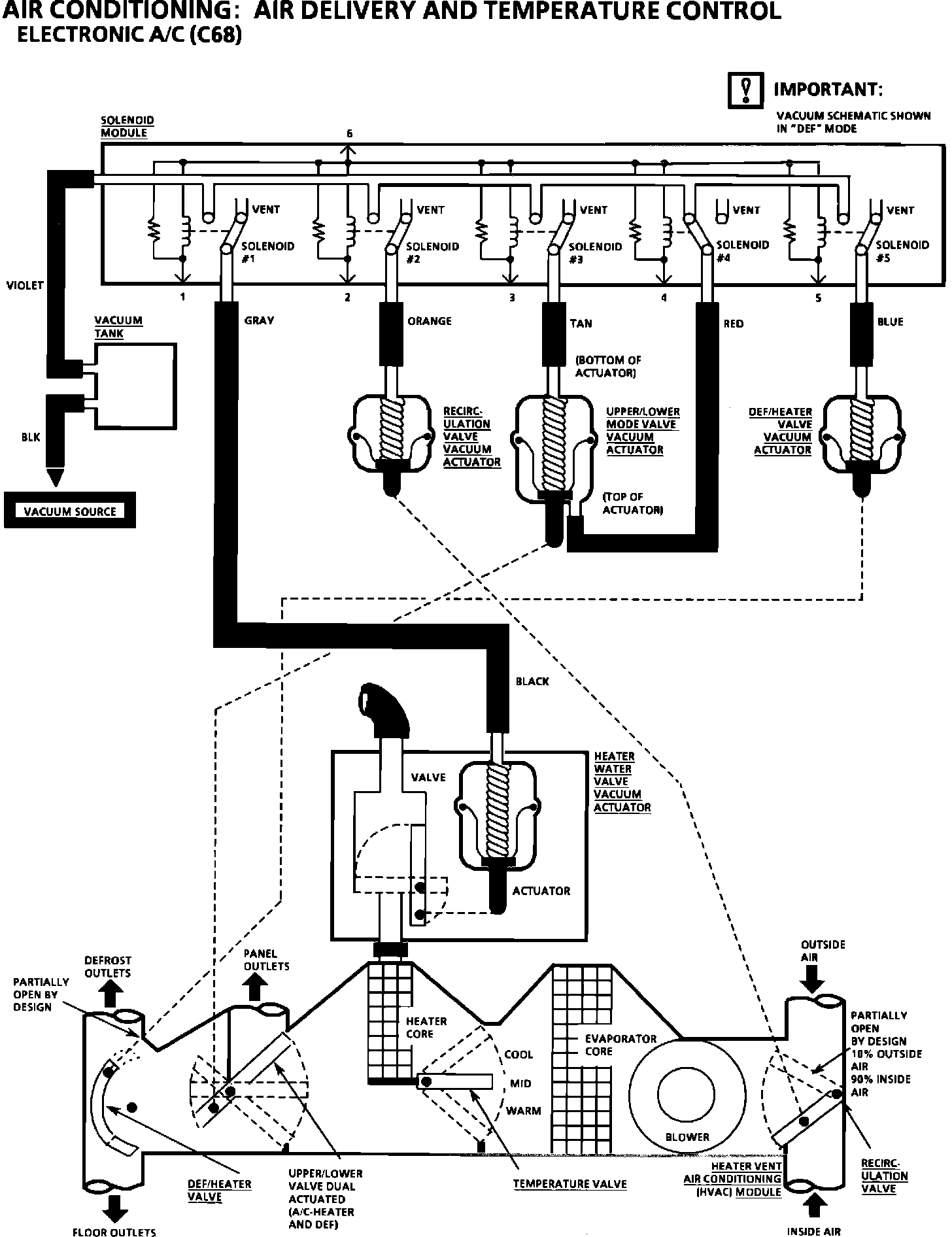

AIR CONDITIONING WIRING AND VACUUM DIAGRAMS

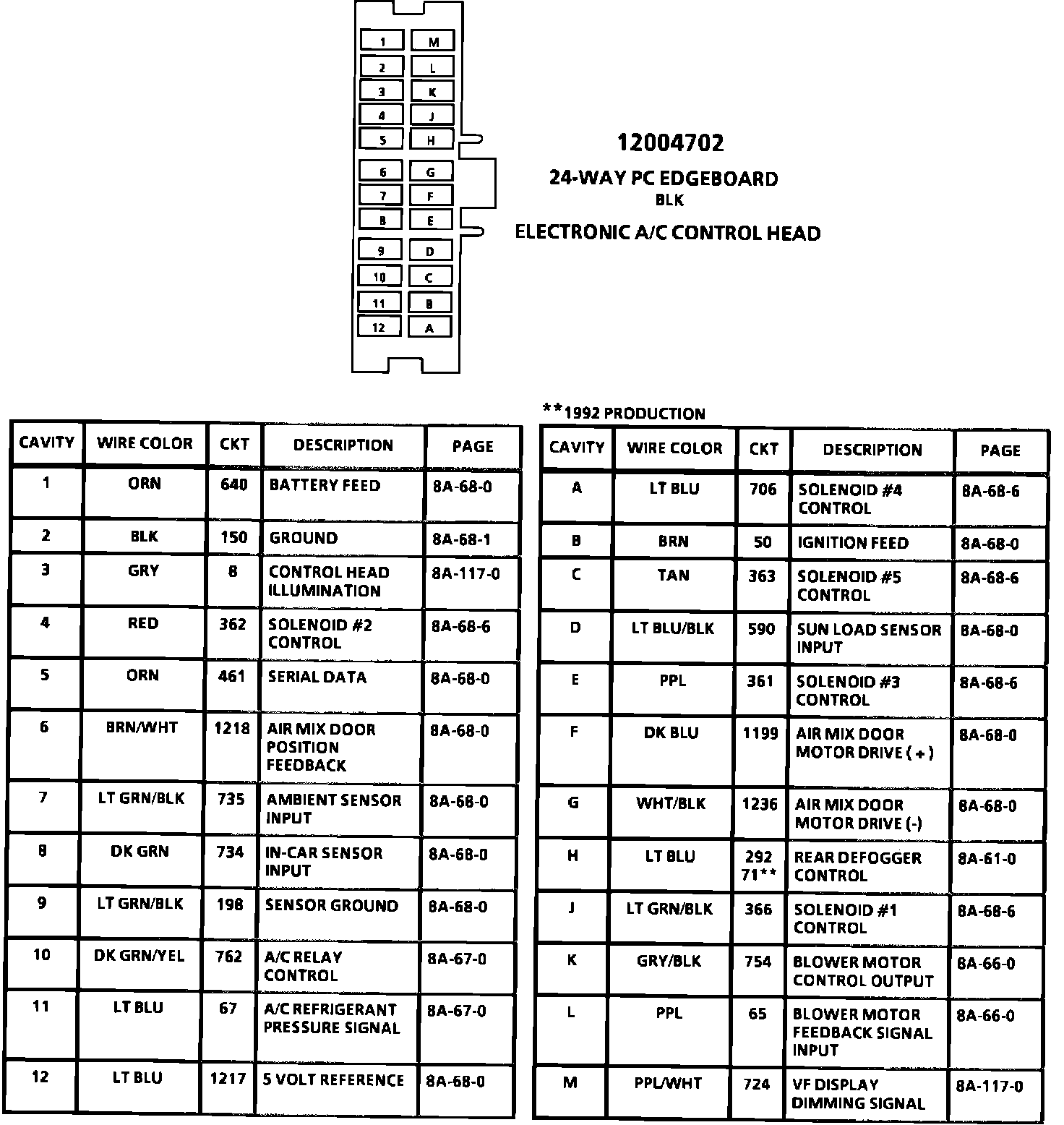

CONTROL HEAD CONNECTOR ID

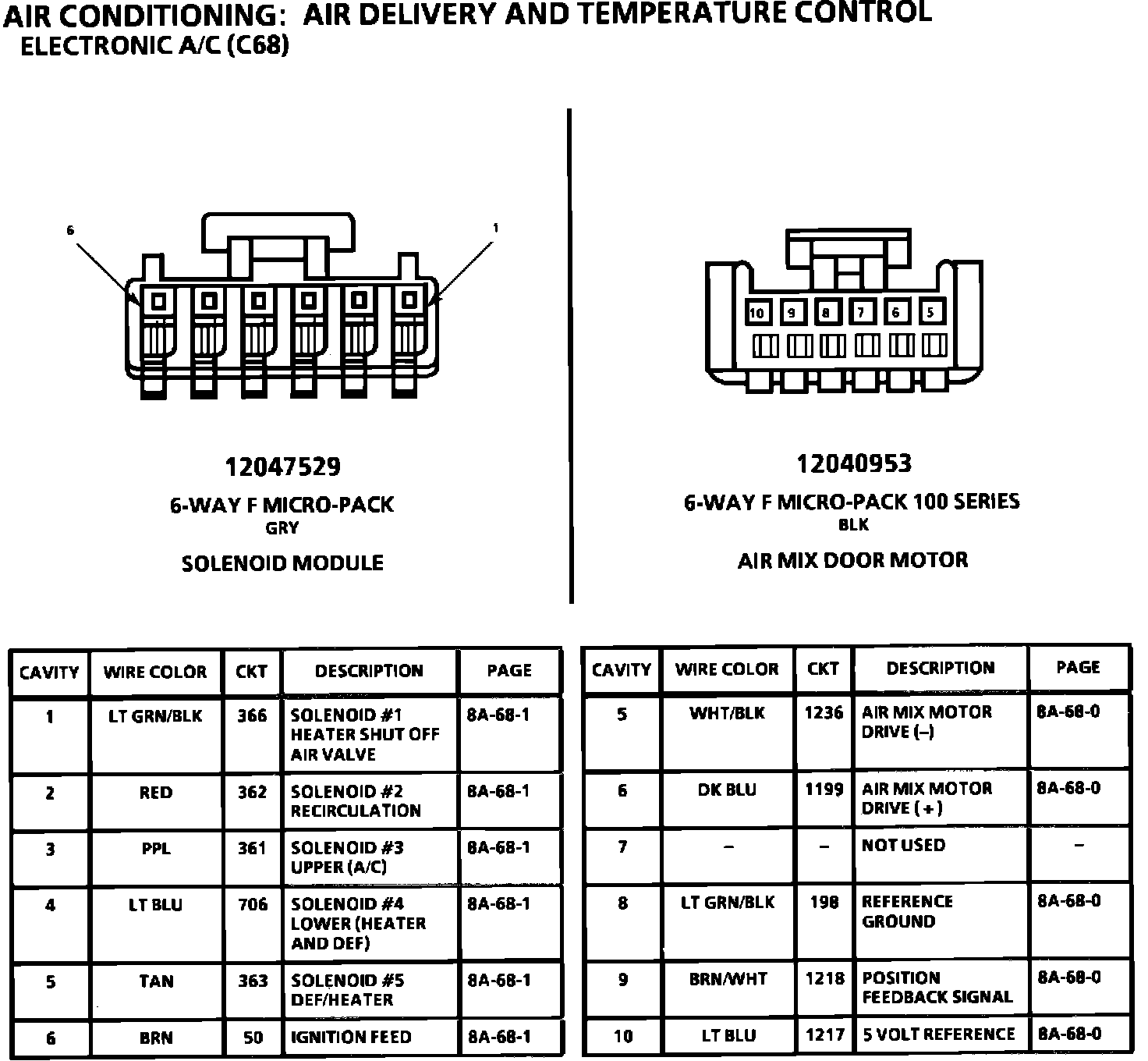

SOLENOID MODULE AND AIR MIX DOOR MOTOR CONNECTOR ID

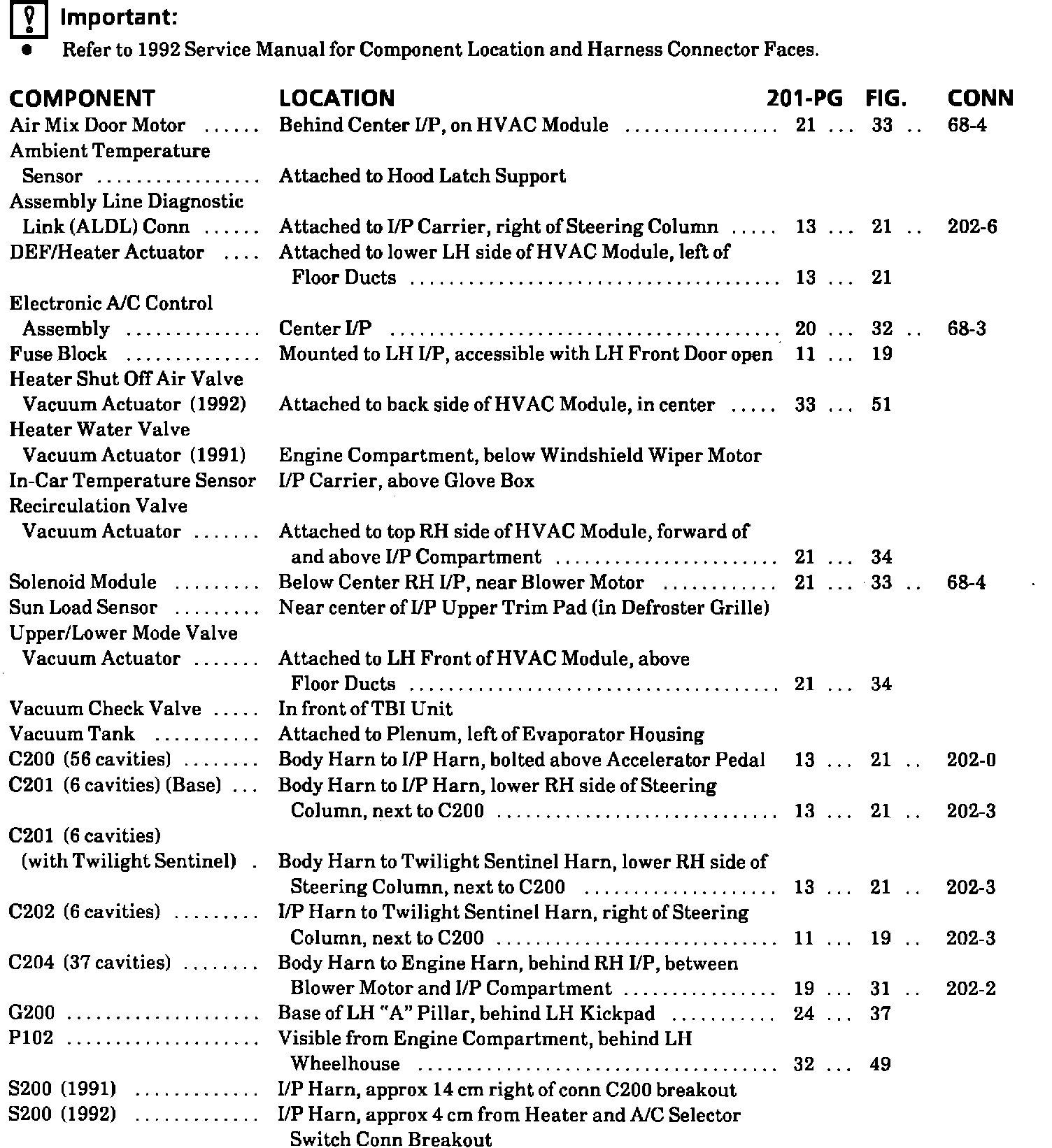

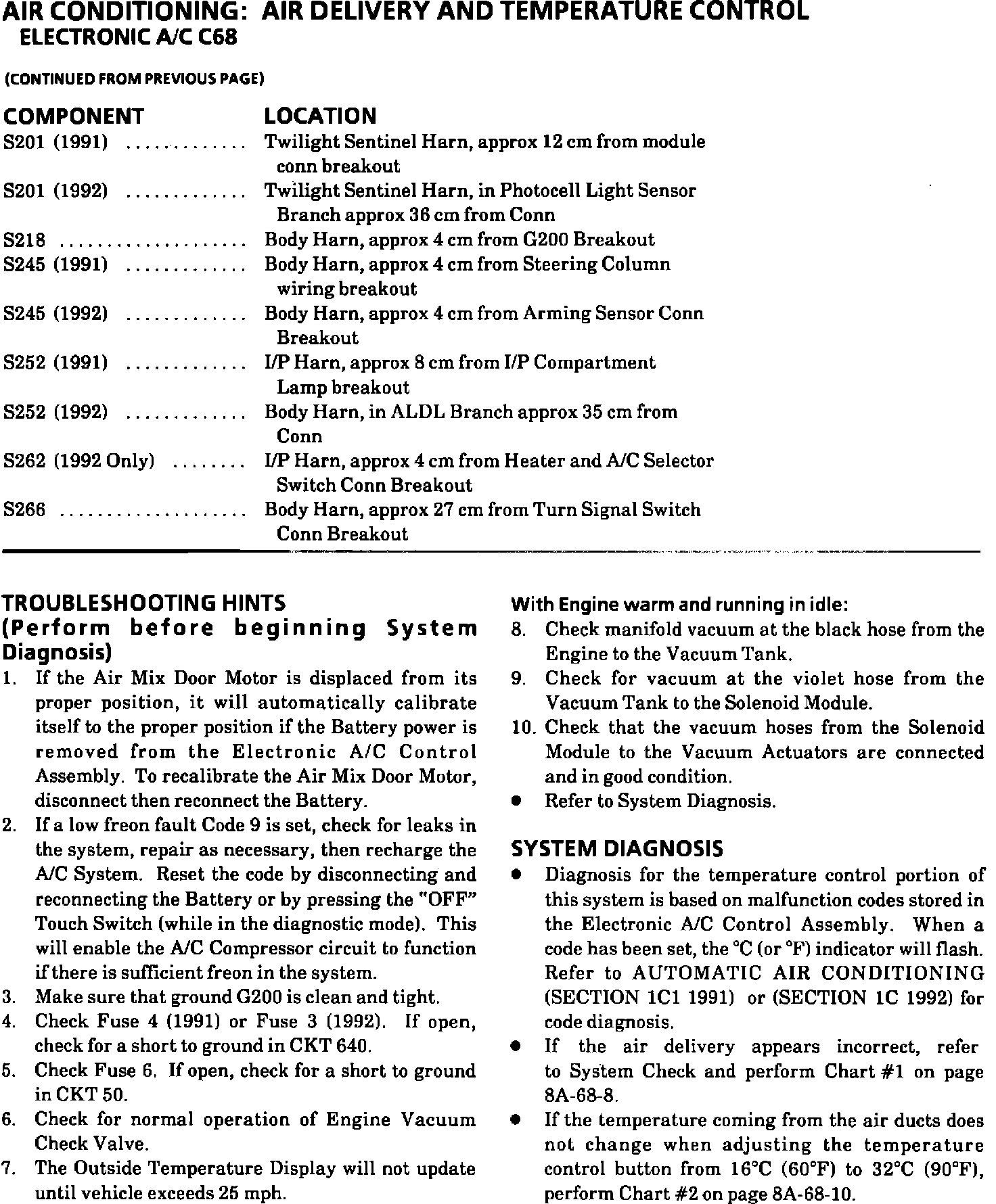

COMPONENT CONNECTOR LOCATION SPLICES AND TROUBLESHOOTING HINTS

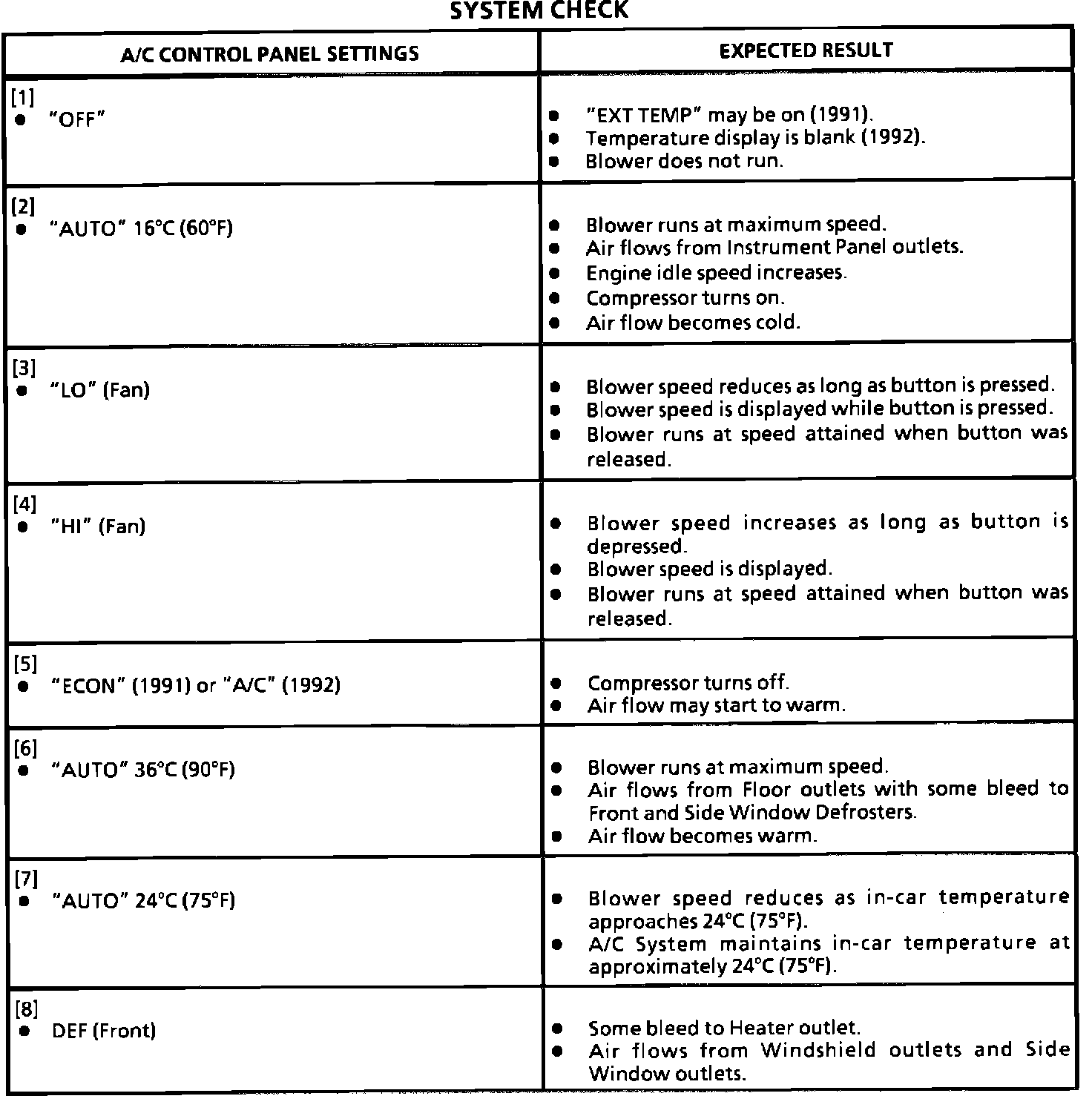

SYSTEM CHECK

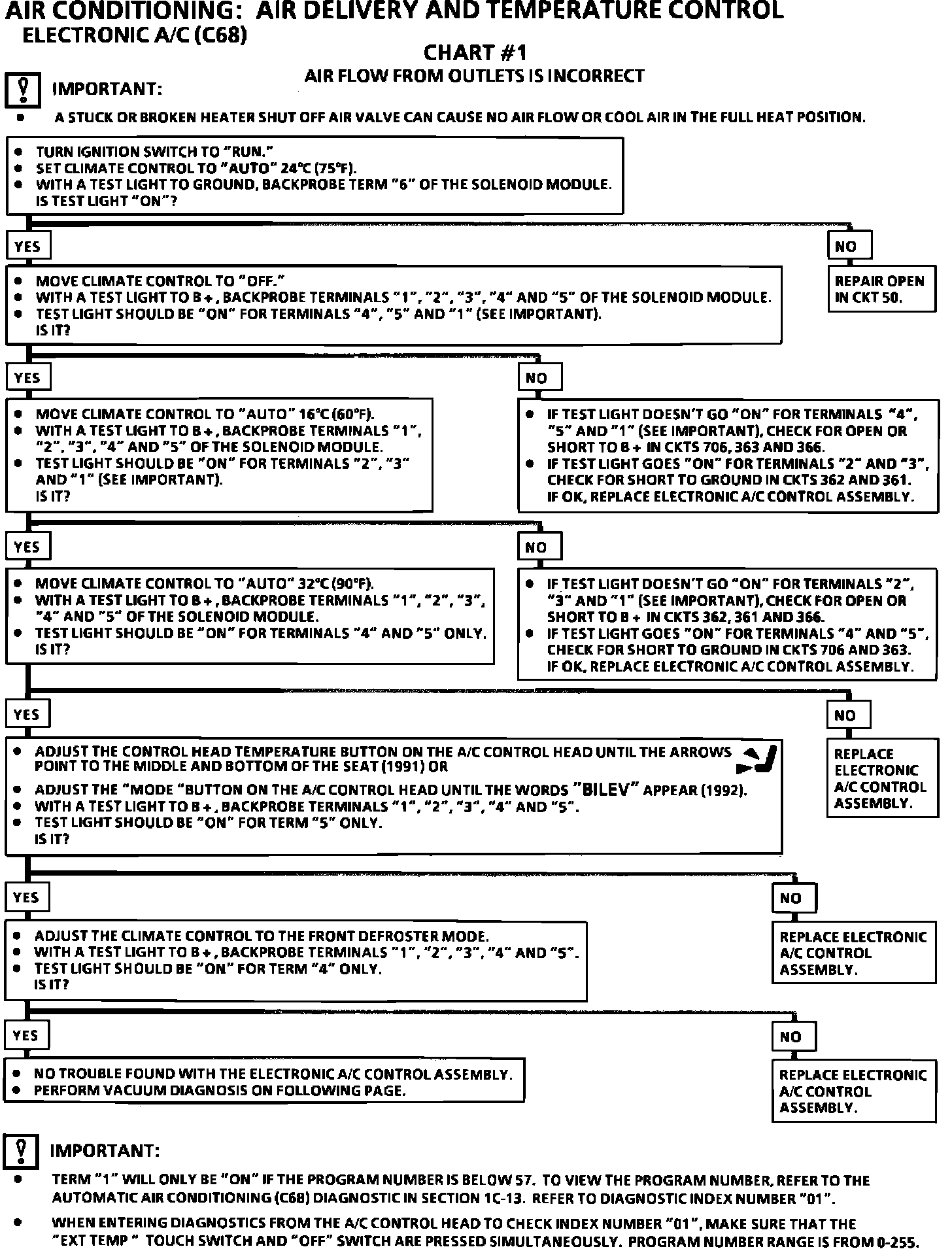

CHART # 1 AIR FLOW FROM OUTLETS IS INCORRECT





CHART # 2

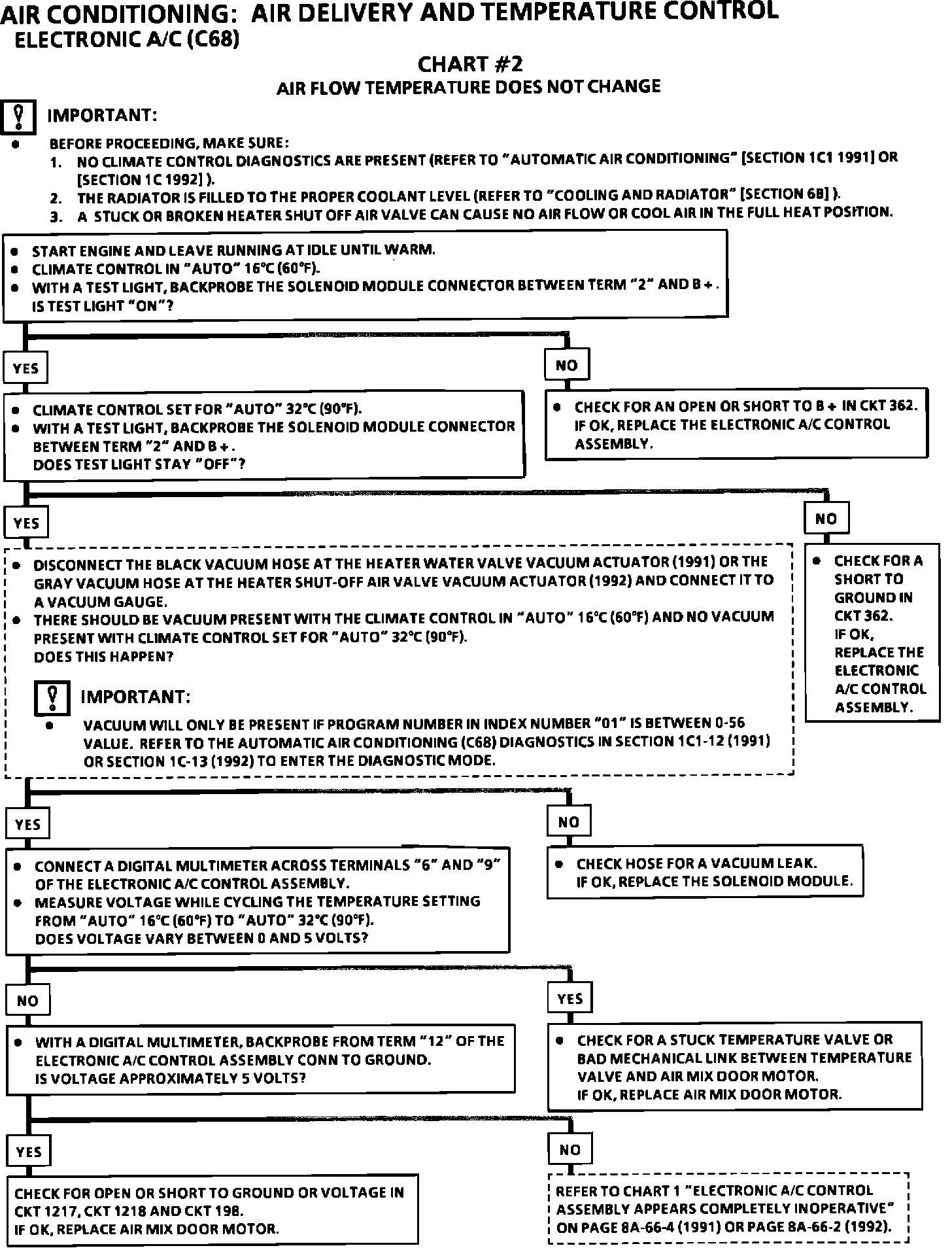

AIR FLOW TEMPERATURE DOES NOT CHANGE








CIRCUIT OPERATION (AIR DELIVERY & TEMPERATURE CONTROL)
