Rear Suspension - Revised Illustration

9218oldsmobile05

NUMBER: 91-T-85

CORP.REF.NO: 133401

DATE: April 1991

SECTION: 3D


SUBJECT:
SERVICE MANUAL UPDATE - REAR SUSPENSION - REPLACE PAGE 3D-1

MODELS/YEARS:
1991 CUTLASS CIERA AND CUTLASS CRUISER

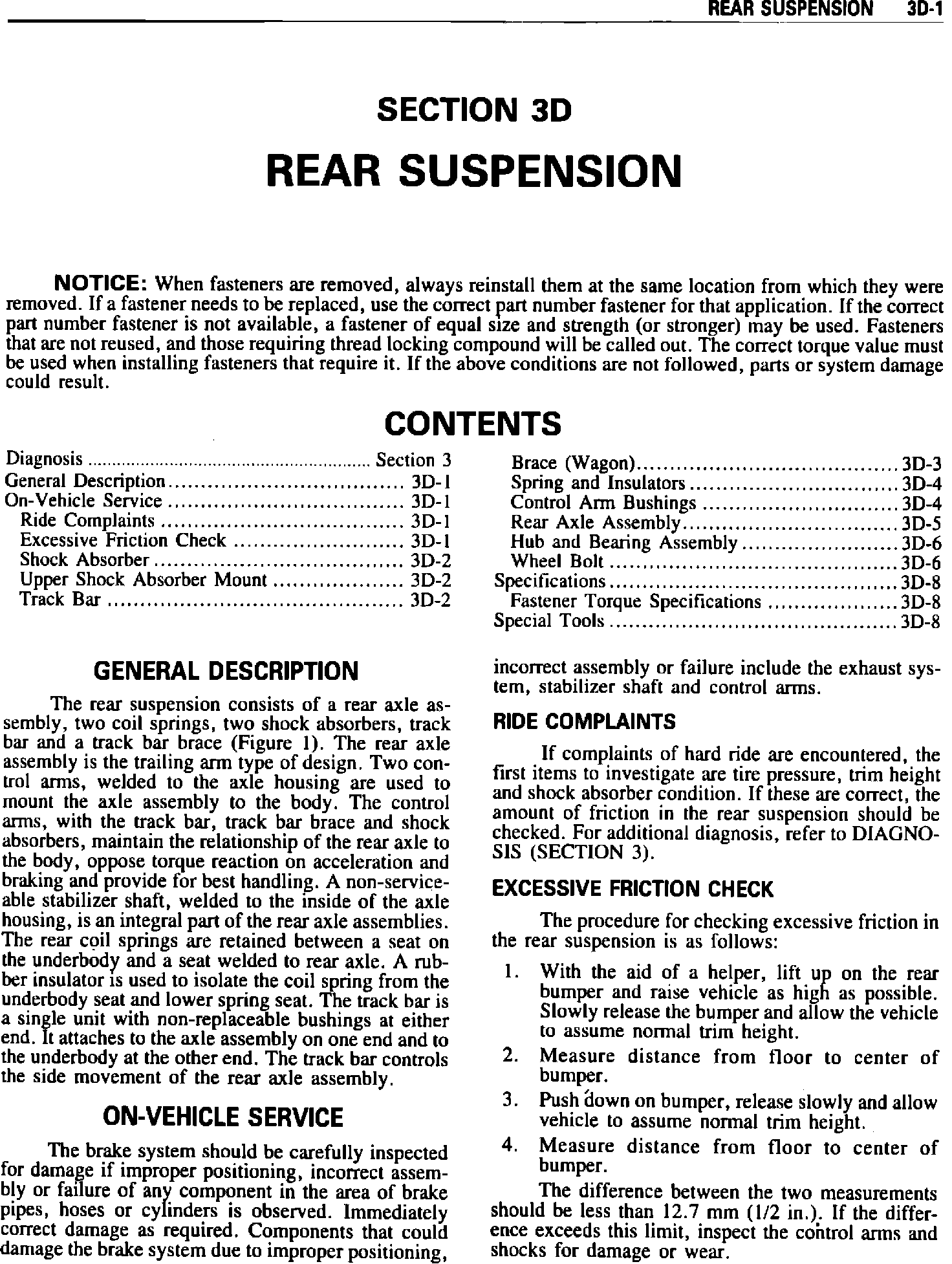

The illustration on this bulletin replaces page 3D-1 of the 1991 Cutlass Ciera and Cutlass Cruiser Service Manual.

Please mark a reference to this bulletin in your copy(s) of that manual.
