Underbody, Engine Compartment, Hood - Revised


9218oldsmobile05

NUMBER: 91-T-78

CORP.REF.NO: 131008

DATE: March 1991

SECTION: 10


SUBJECT:
SERVICE MANUAL UPDATE - UNDERBODY, ENGINE COMPARTMENT, FRONT DOOR AND HOOD HINGE DIMENSIONS CHANGE

MODELS/YEARS:
1982-91 CUTLASS CIERA/CUTLASS CRUISER











Due to a redesigned front fender wheelhouse panel, the body alignment dimensions and measurement locations at the strut towers have changed. Reference Point "D" has changed from the center of strut shock tower front attaching hole, to the center of the strut tower 90 mm (3-9/16") hole.

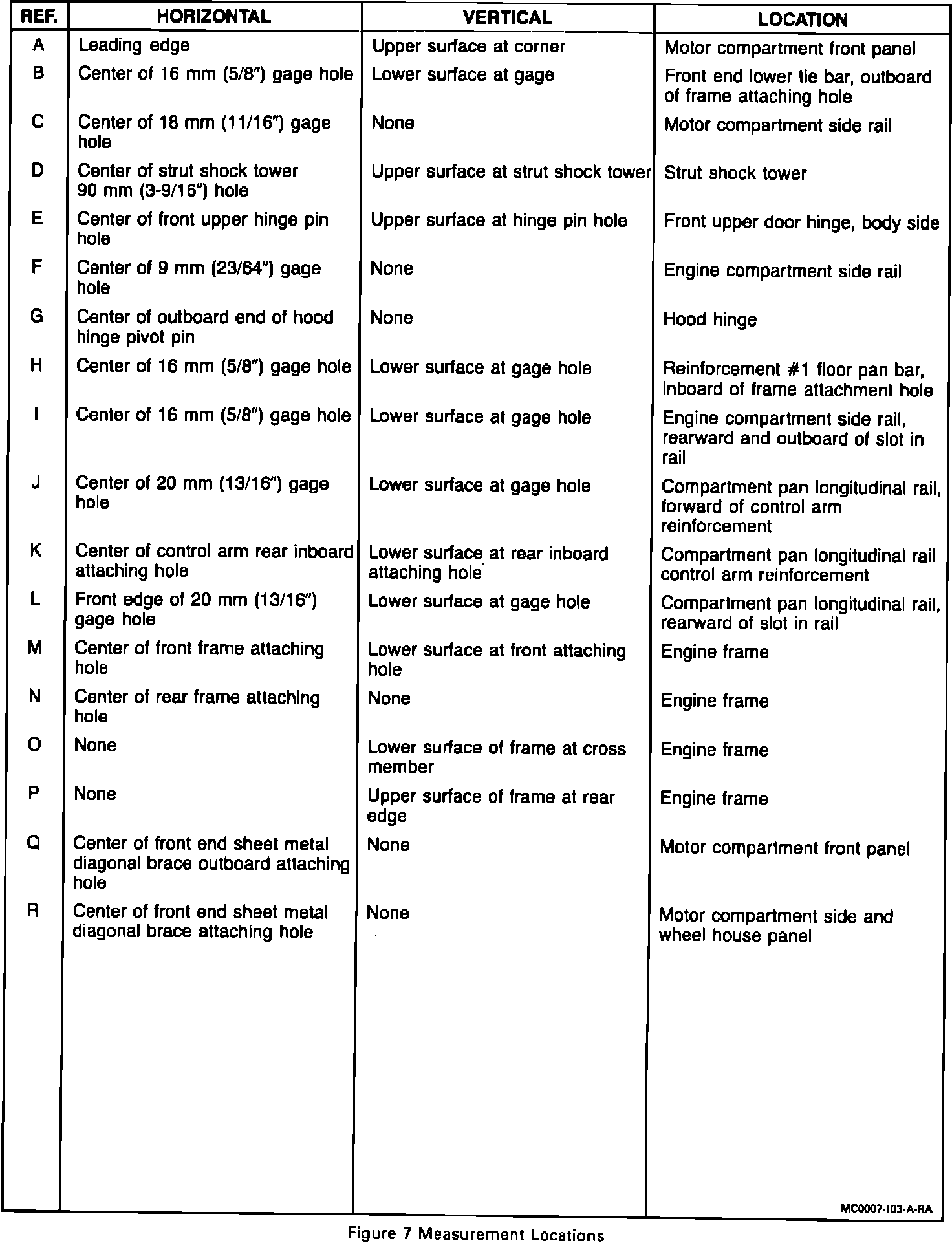

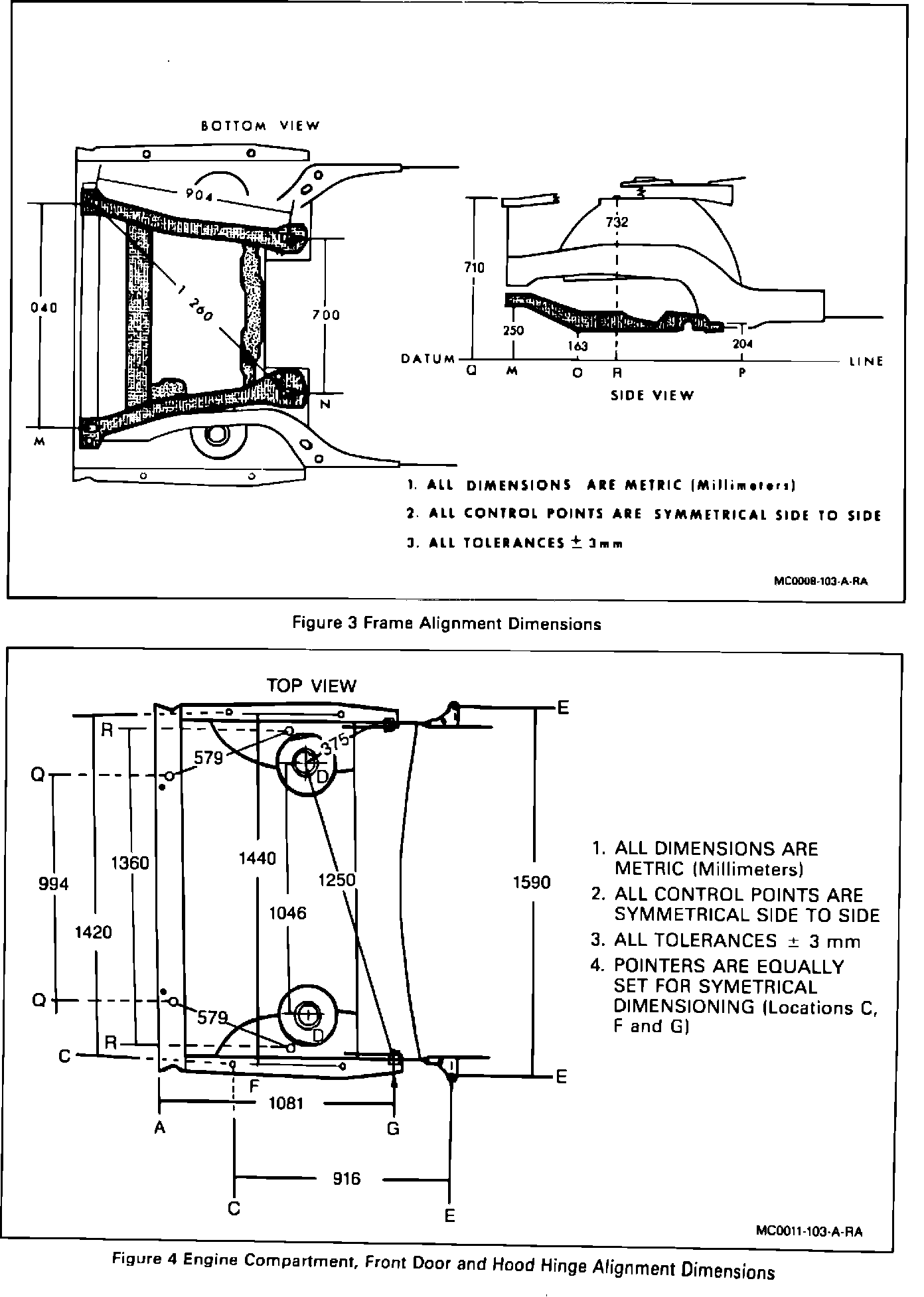

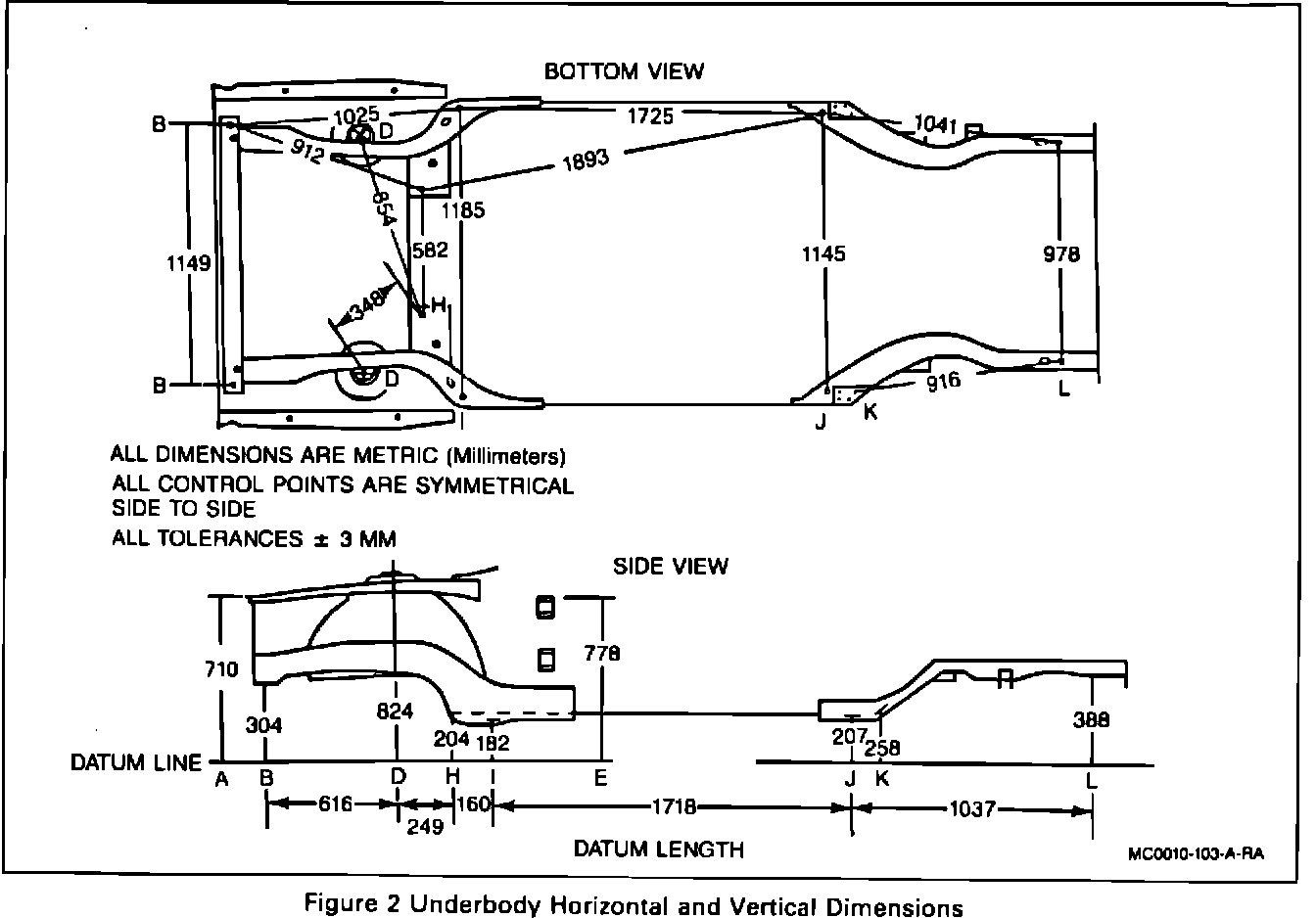

The following information replaces Figures 2, 3,4,7 and 8 in the 1991 Cutlass Ciera and Cutlass Cruiser Service Manuals, Section 10-3.

Section 10-3 with these revised dimensions should be used for all prior model year Cutlass Cieras and Cutlass Cruisers replacing any information in prior manuals referring to the frame and underbody.

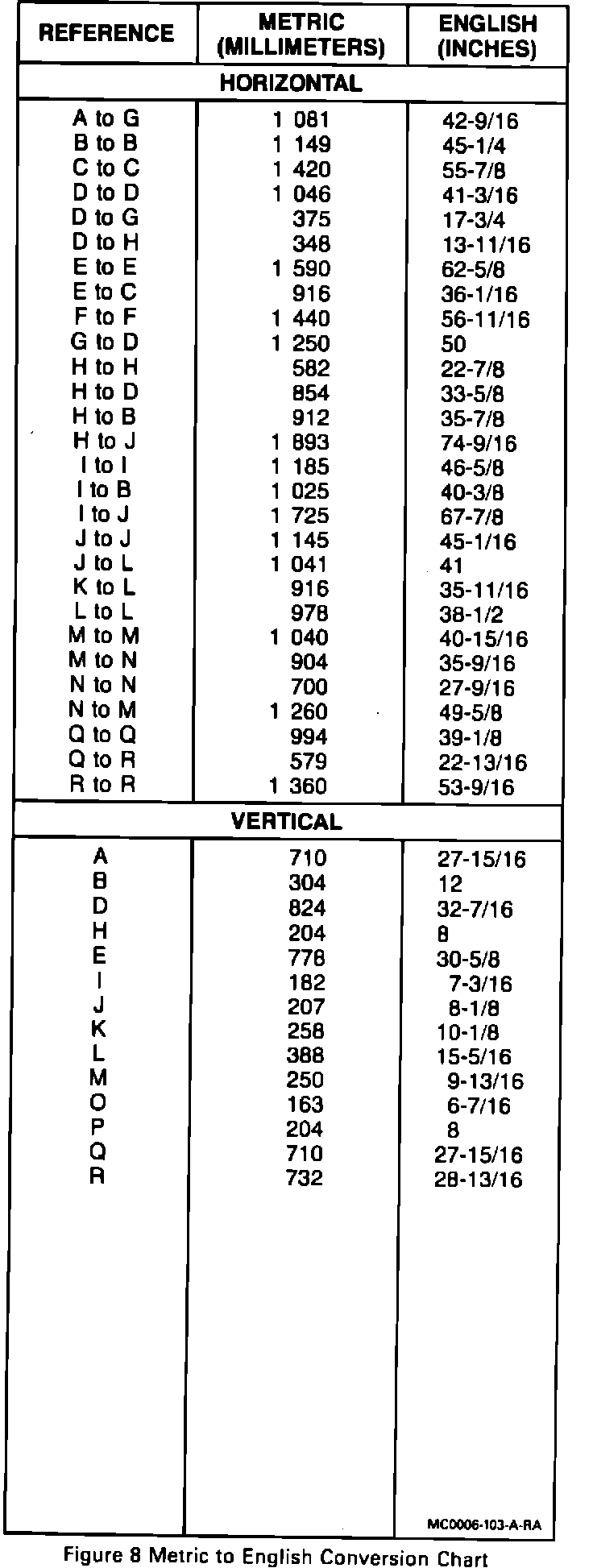

Metric to English Conversion Chart
