Home >> Oldsmobile >> 1991 >> Cutlass Ciera Cruiser L4-151 2.5L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Parking Lamp >> Part 3 of 3

Part 3 of 3

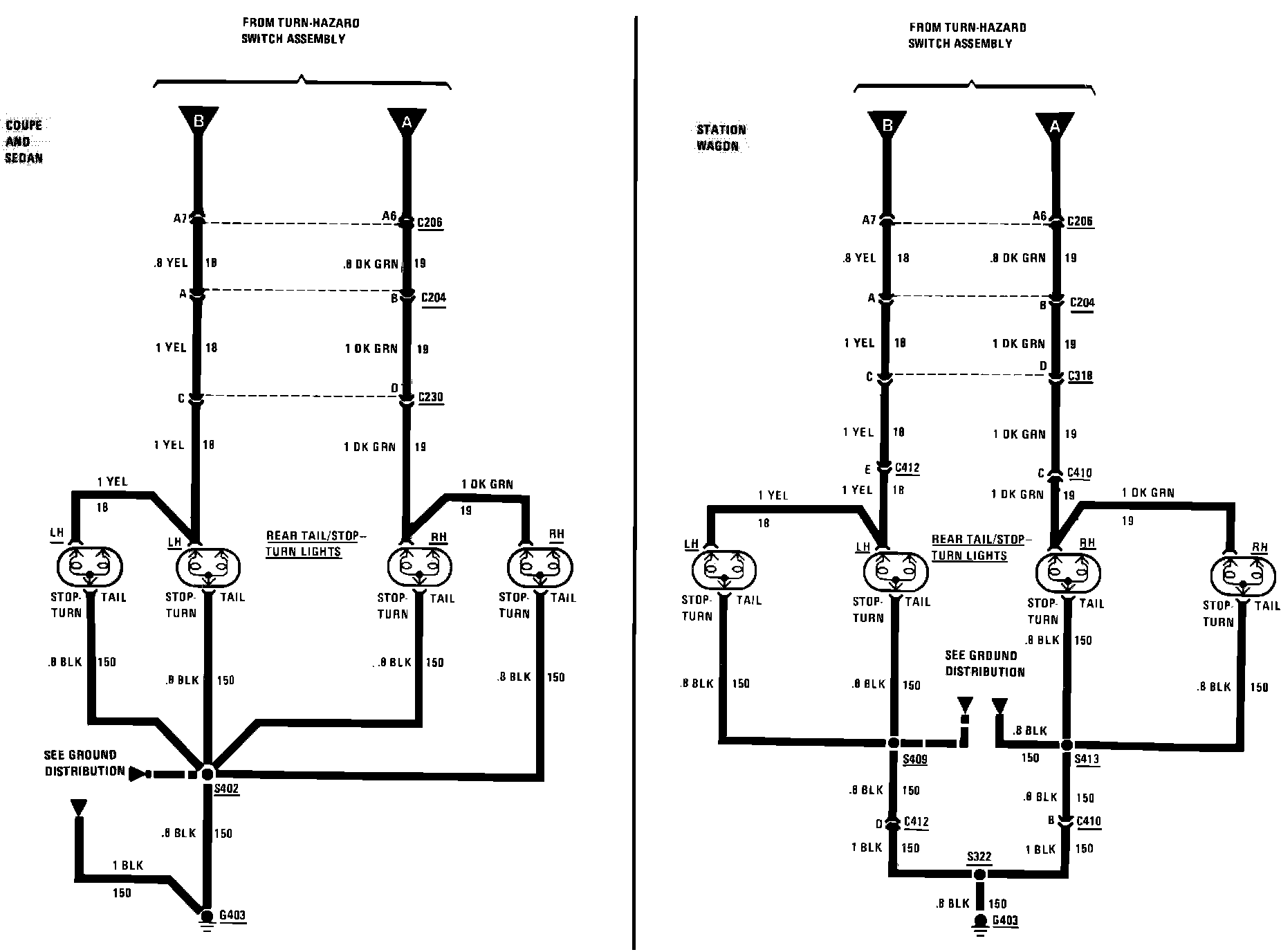

Exterior Lamps: Turn, Hazard, Front Marker, Park & Stop:
