Cutlass Ciera Cruiser L4-151 2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Tail Lamp
>>
Coupe & Sedan
Coupe & Sedan

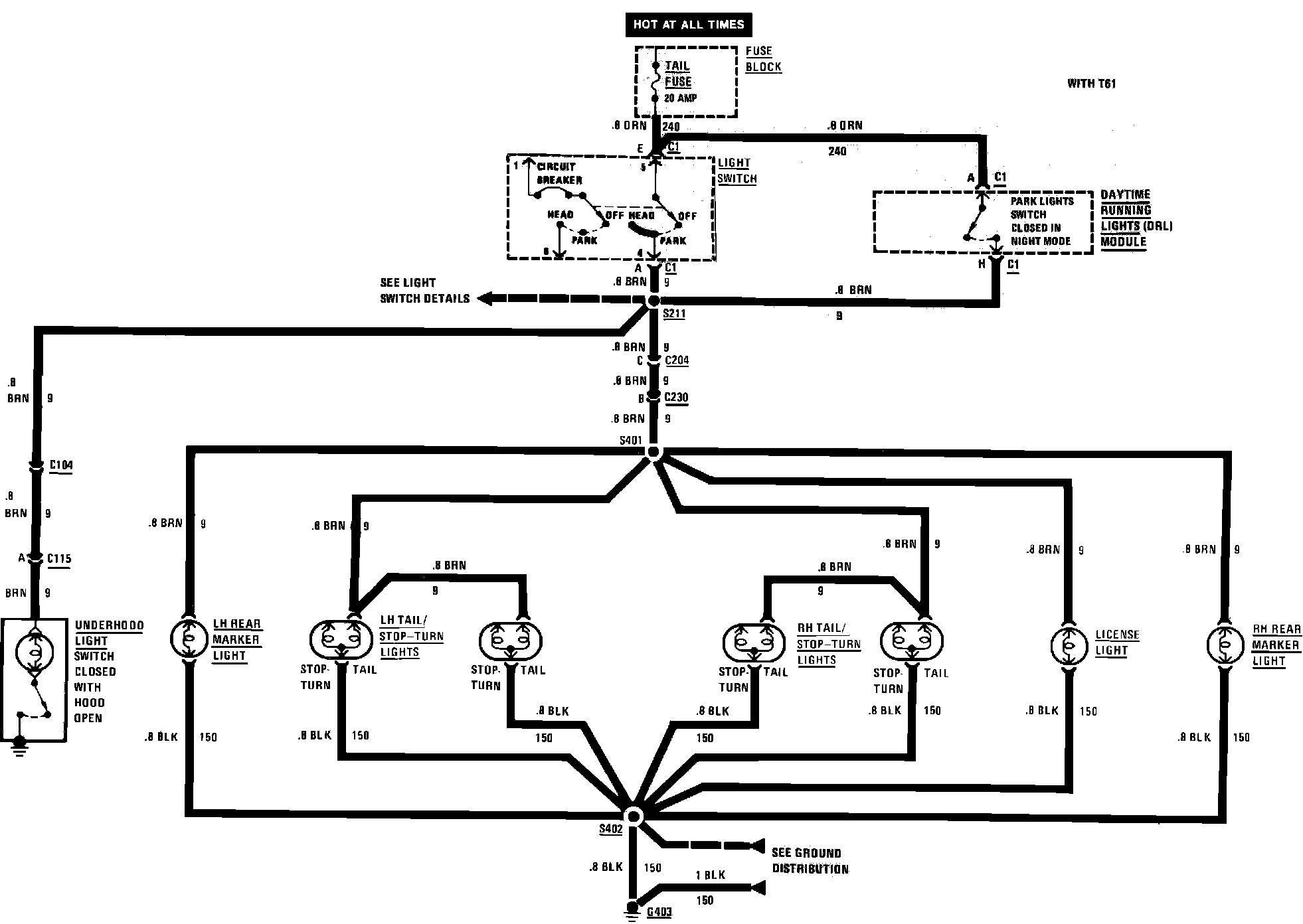

Exterior Lamps: Rear Marker, Tail, License & Underhood:
