Mass Air Flow (MAF) & Idle Air Control (IAC)

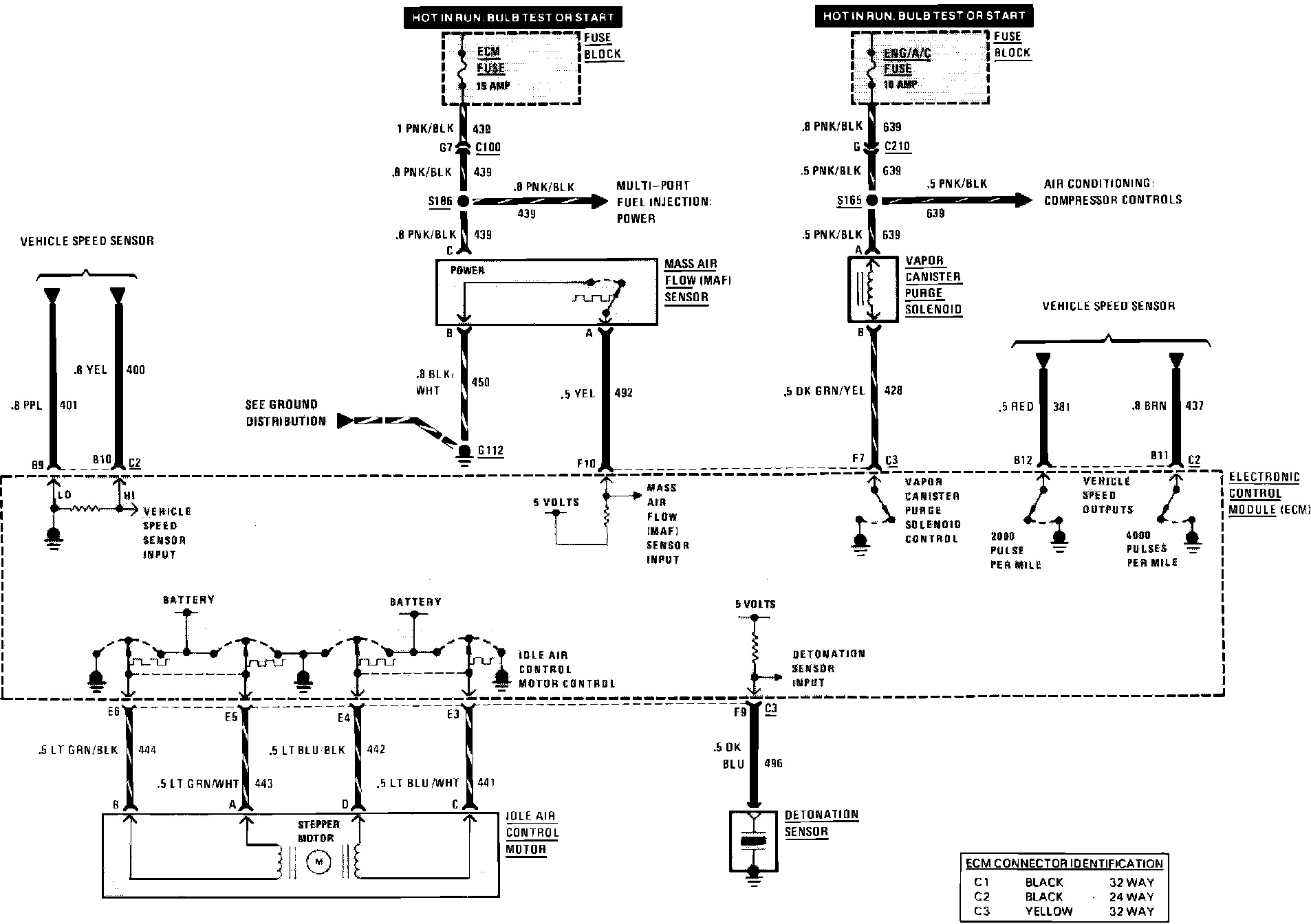

Multi-Port Fuel Injection: Mass Air Flow Sensor & Idle Air Control:
