Direct Ignition System
Direct Ignition System

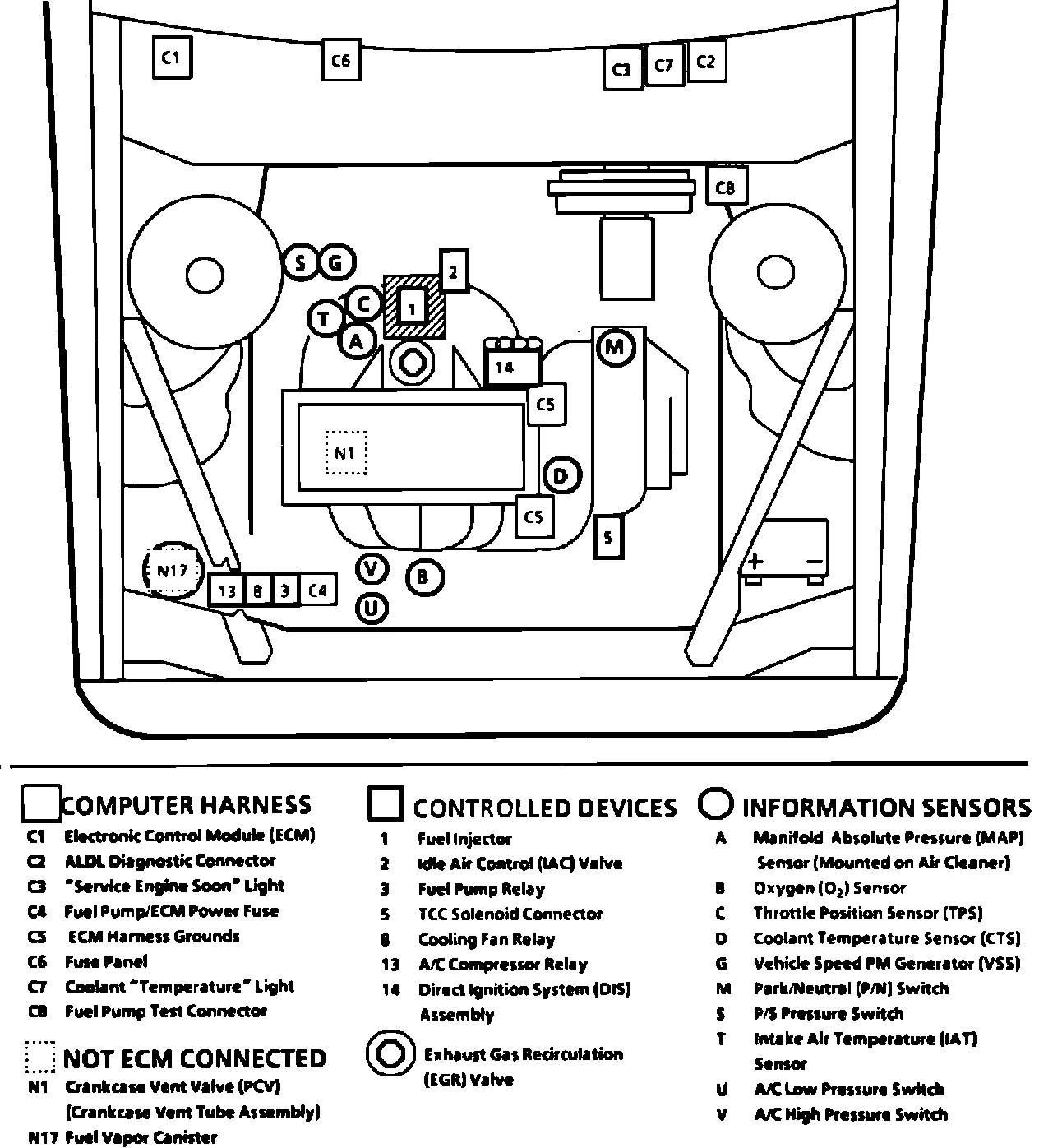

Engine Component Location.:
LH Rear Of Engine, Above Transaxle
