Instrument Panel Dimming
Instrument Panel Dimming

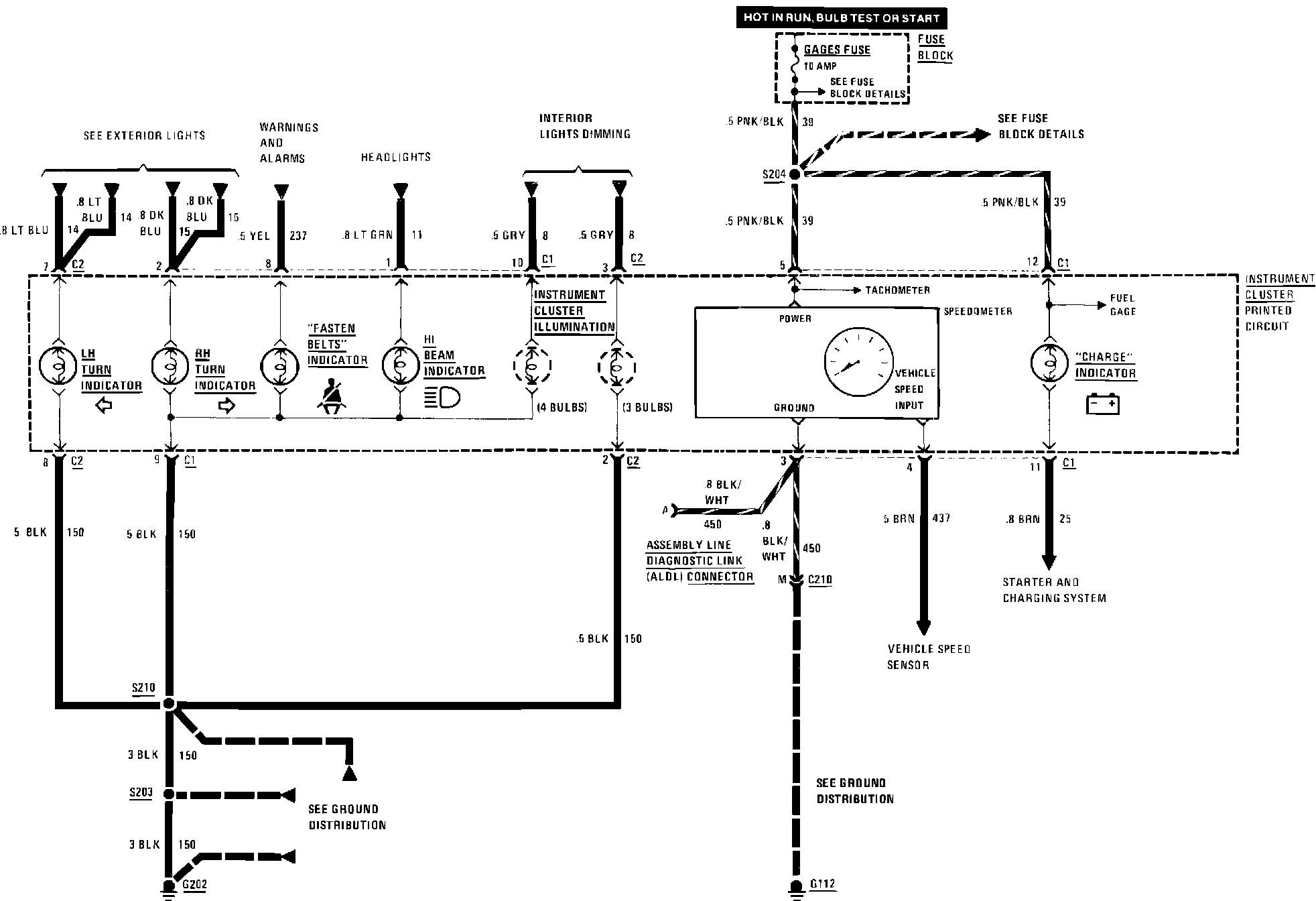

Instrument Panel: Gauges Cluster (Indicator, Illumination & Speedometer):
