Home >> Oldsmobile >> 1991 >> Cutlass Supreme FWD V6-189 3.1L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Tail Lamp

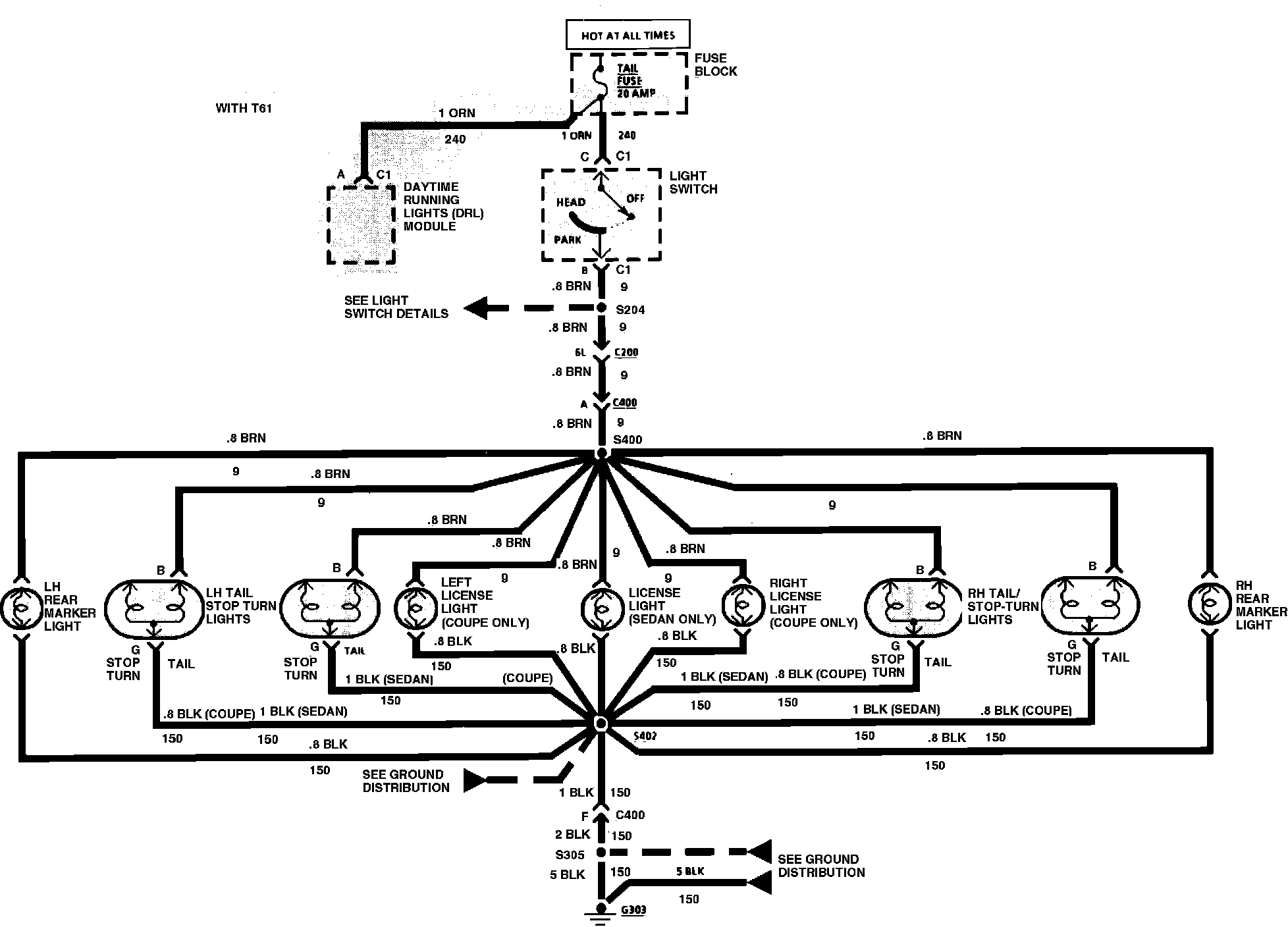

Tail Lamp

Exterior Lights (License, Rear Marker & Tail):
