HVAC, Radio & Redundant Steering Controls Data Line

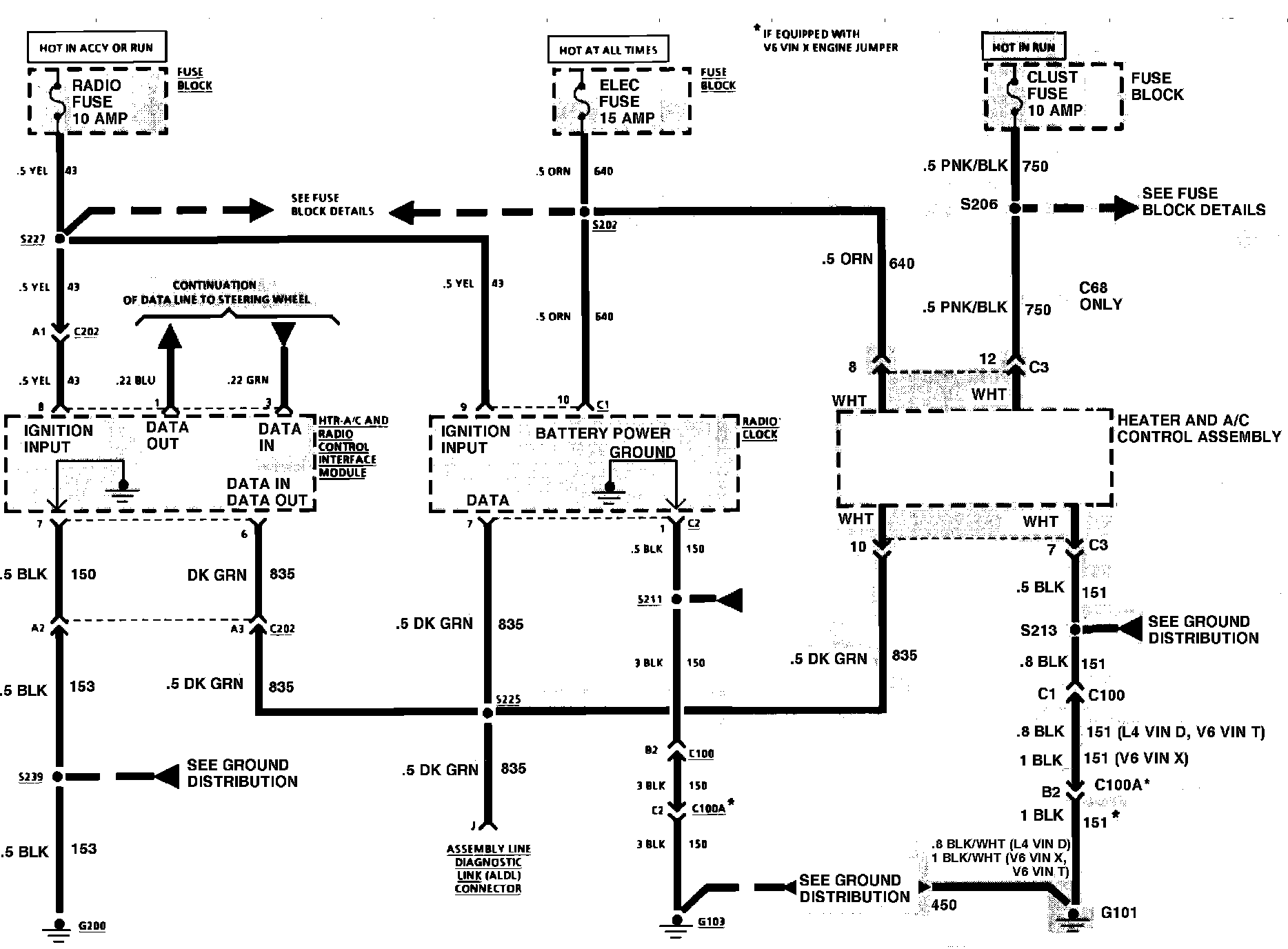

Data Line (HVAC, Radio & Redundant Steering Controls):
