Transmission Shift Position Indicator Lamp: Locations

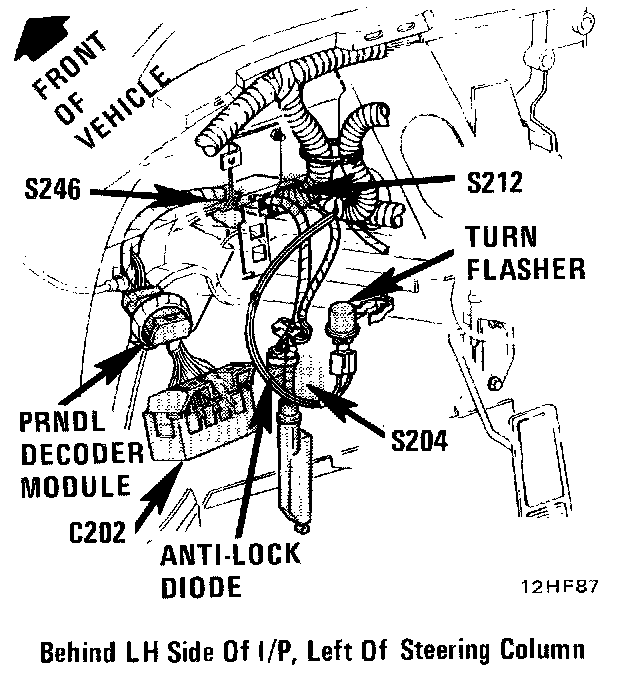

PRNDL DECODER MODULE






The PRNDL Decoder Module is located behind LH side of Instrument Panel, taped to composite harness left of steering column.
