Electrical Diagrams

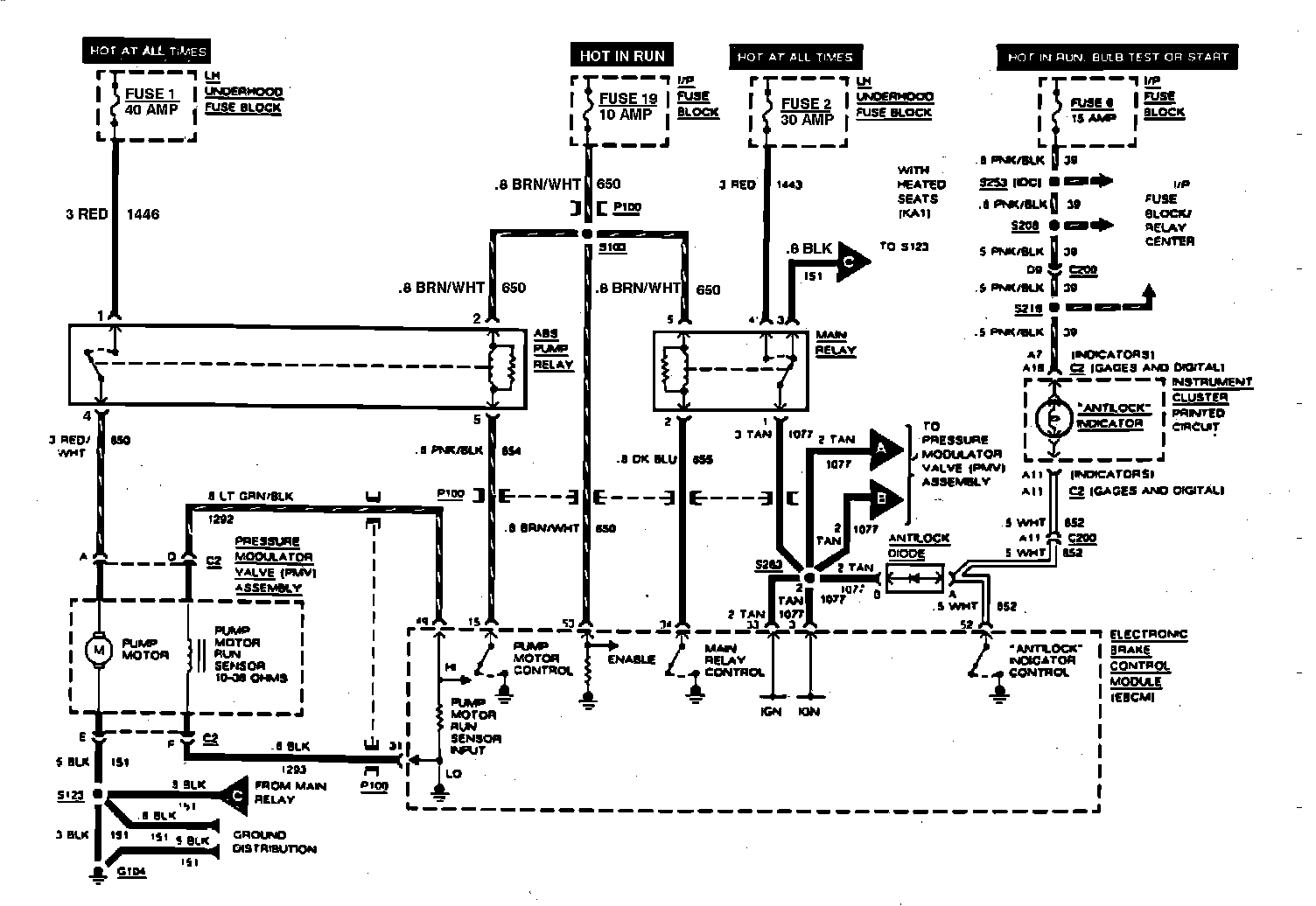

Fig. 45 Anti-lock Brake System Wiring Circuit (Part 1 Of 4). 98 & Park Ave:



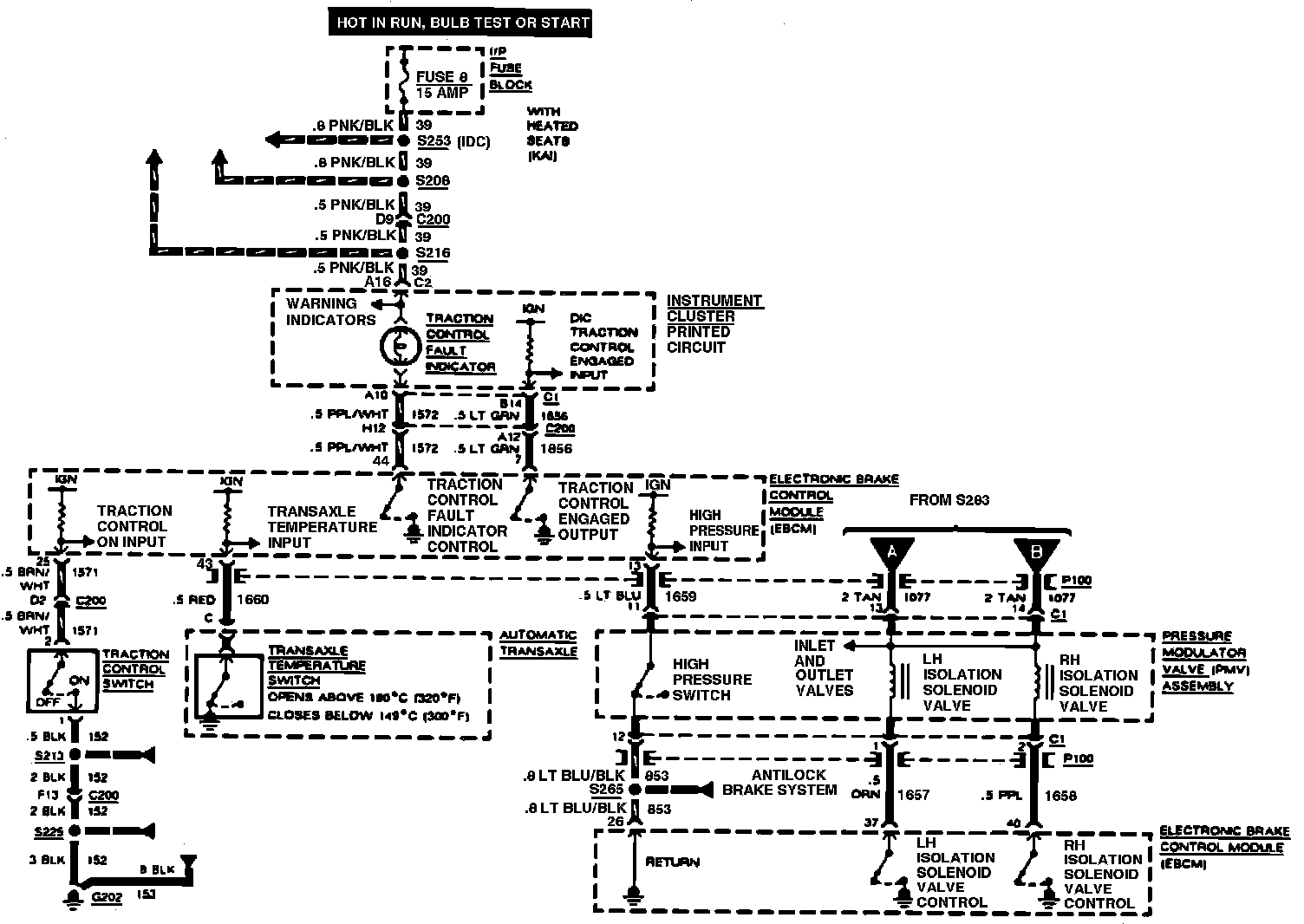

Fig. 45 Anti-lock Brake System Wiring Circuit (Part 2 Of 4). 98 & Park Ave:



Fig. 45 Anti-lock Brake System Wiring Circuit (Part 3 Of 4). 98 & Park Ave:



Fig. 45 Anti-lock Brake System Wiring Circuit (Part 4 Of 4). 98 & Park Ave:
