Chart K

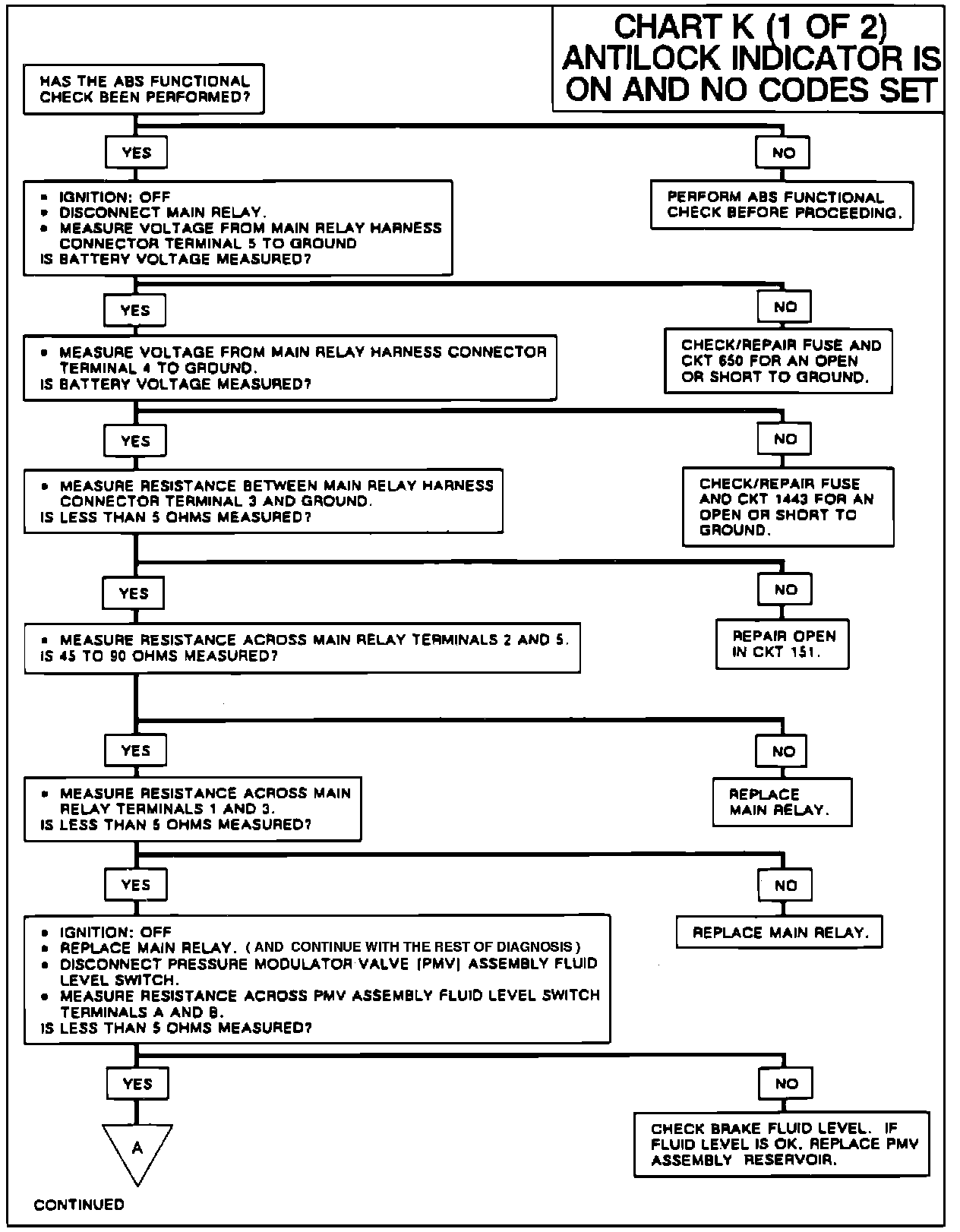

Fig. 21 Chart K (Part 1 Of 2). Except DeVille & Fleetwood:



Fig. 21 Chart K (Part 2 Of 2). Except DeVille & Fleetwood:
