Door Switch
Door Switch

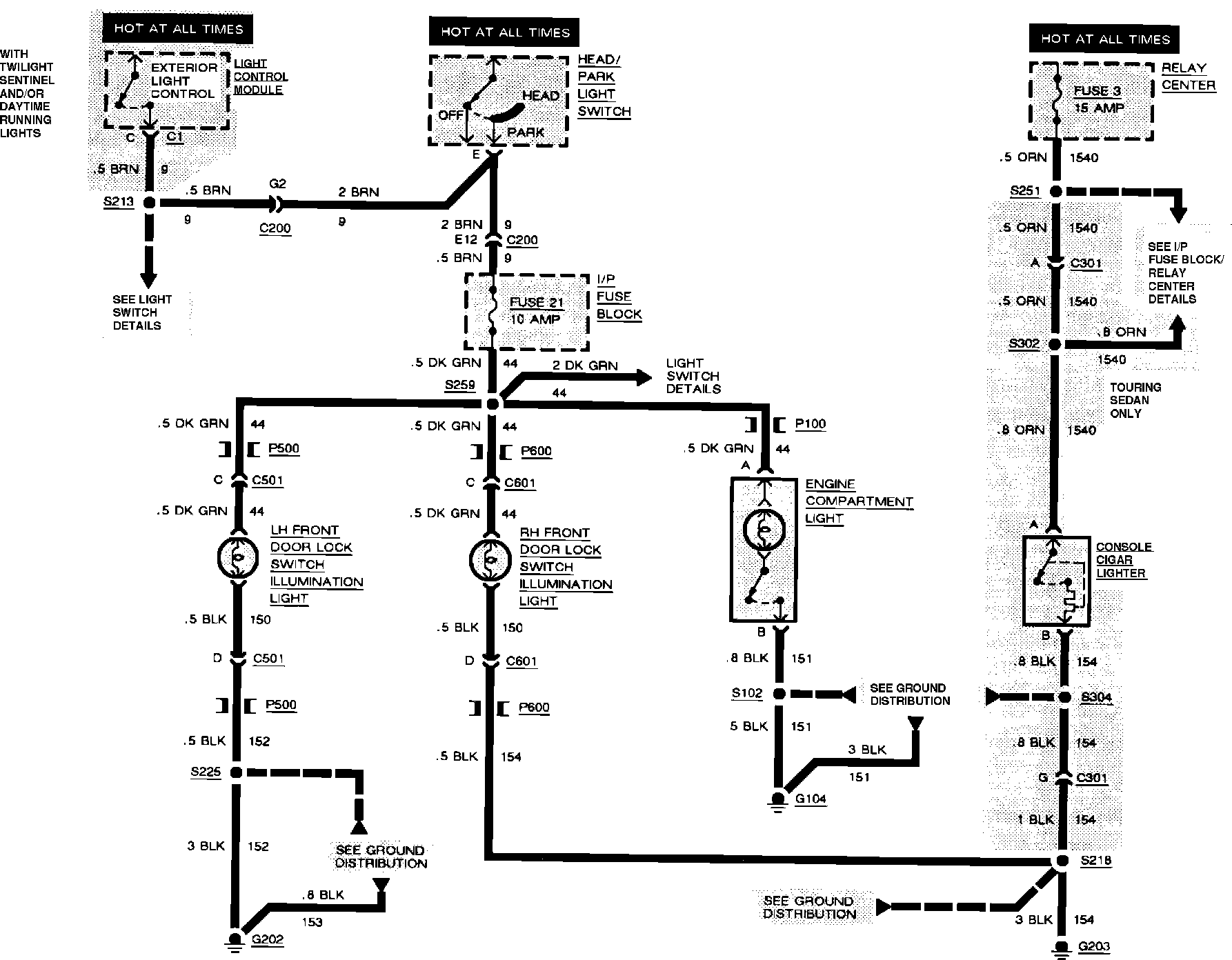

Interior Lights. Door Lock Illumination, Engine Compartment & Console Cigar Lighter:
