Brake Lamp

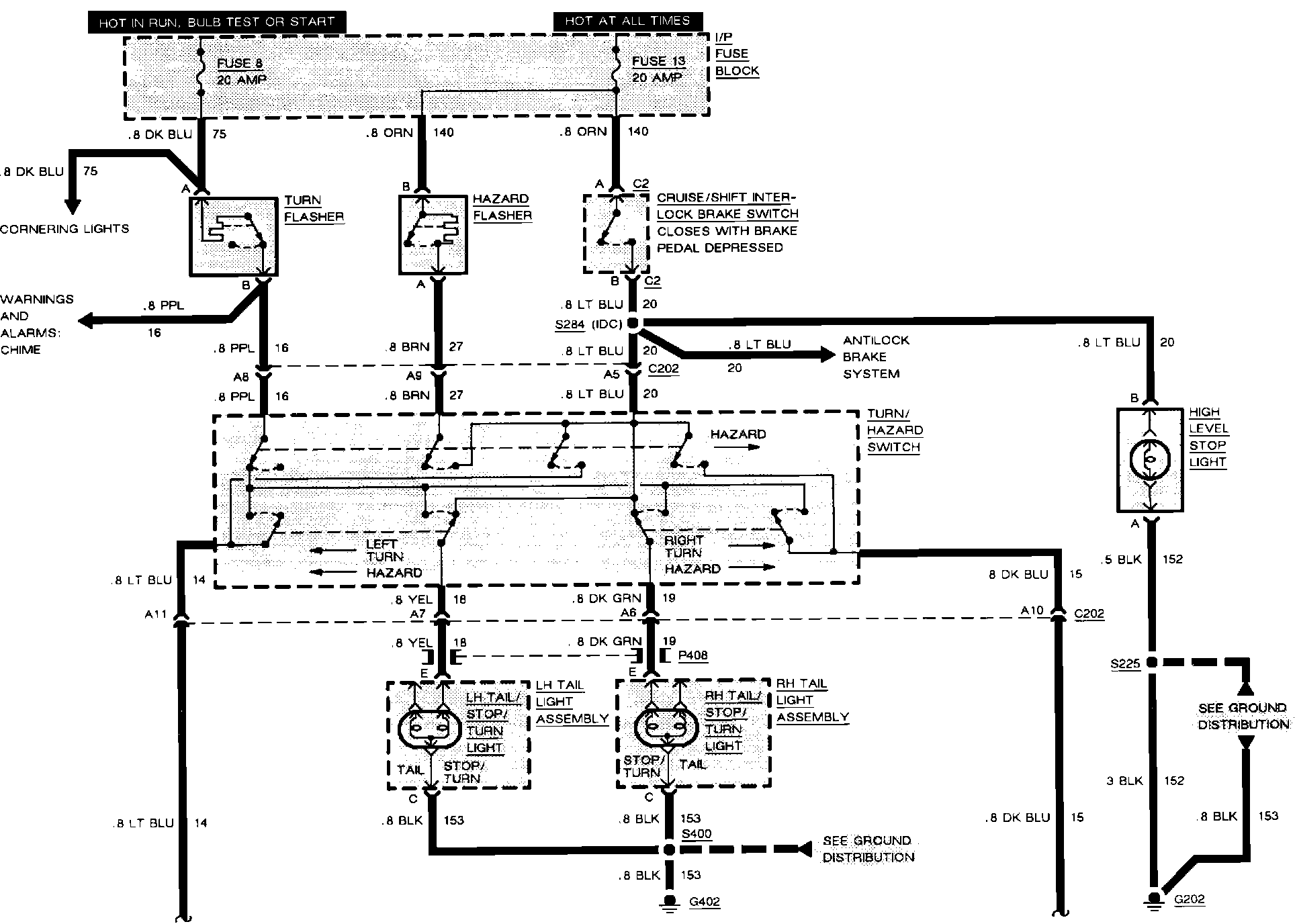

Exterior Lights. Turn, Hazard, Stop, Park & Side Marker. Regency - Less Driver Information Center:



Exterior Lights. Turn, Hazard, Stop, Park & Side Marker. Regency - Less Driver Information Center:
