Home >> Oldsmobile >> 1991 >> Ninety-Eight V6-3800 3.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Seats >> Royale (AG1 & AG2 Option)

Royale (AG1 & AG2 Option)

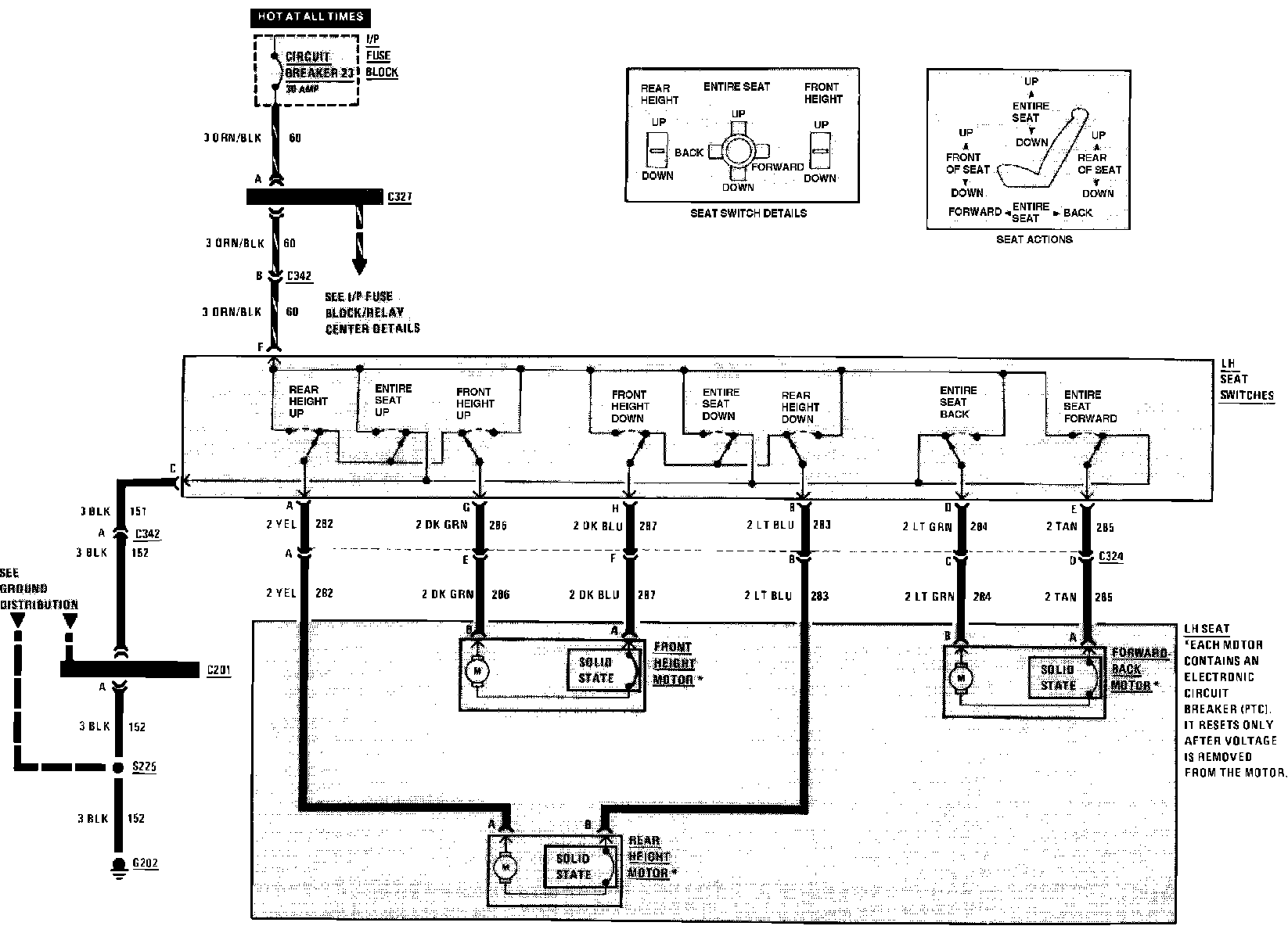

Power Seats:



Power Seats:
