Home
>>
Oldsmobile
>>
1991
>>
Ninety-Eight V6-3800 3.8L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Electrical Diagrams
>>
Air Delivery and Temperature Control
Air Delivery and Temperature Control

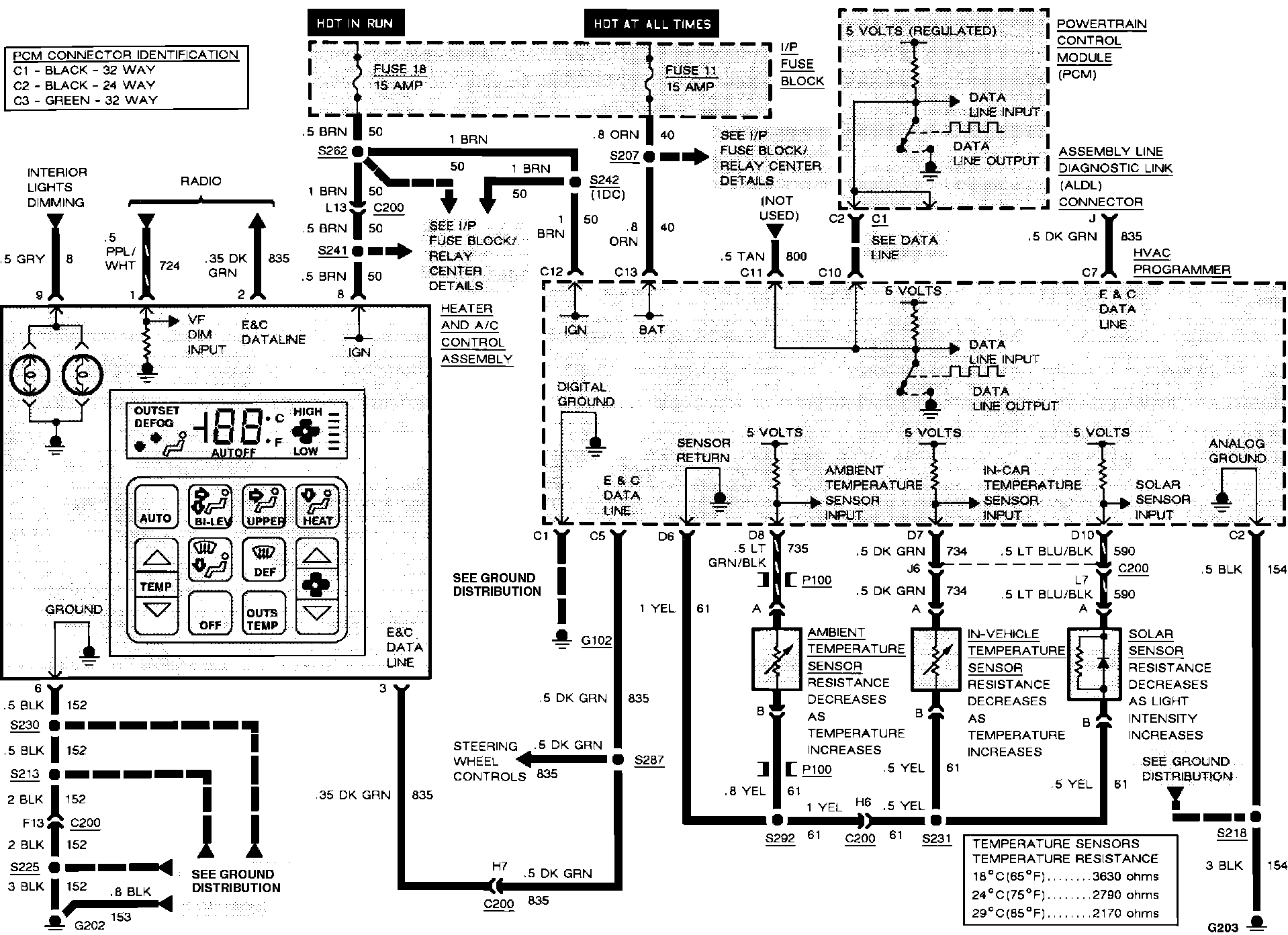

Air Delivery & Temperature Control:

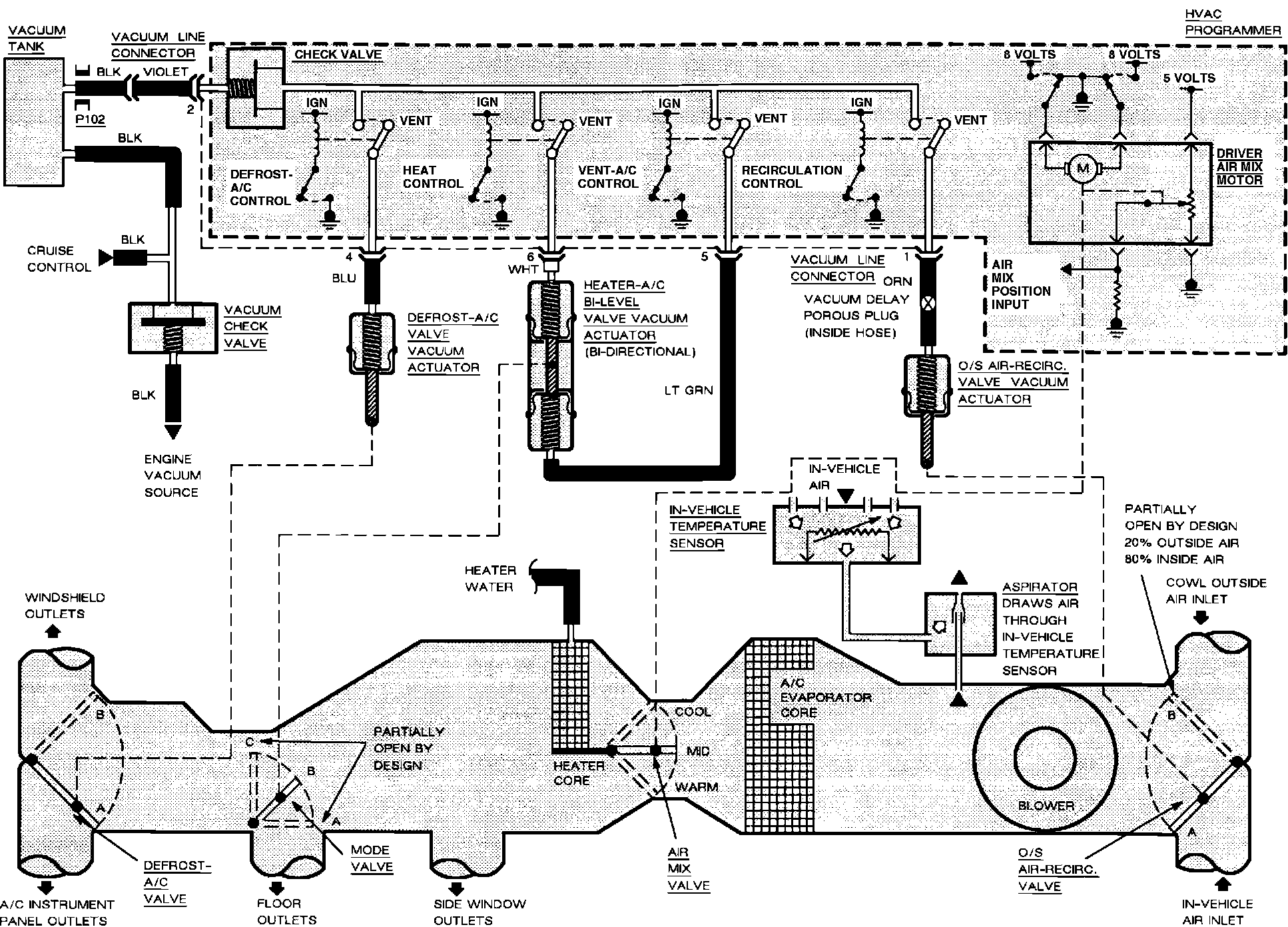

Air Conditioning Air Delivery & Temperature Control:
