Vehicle Speed Sensor (VSS)

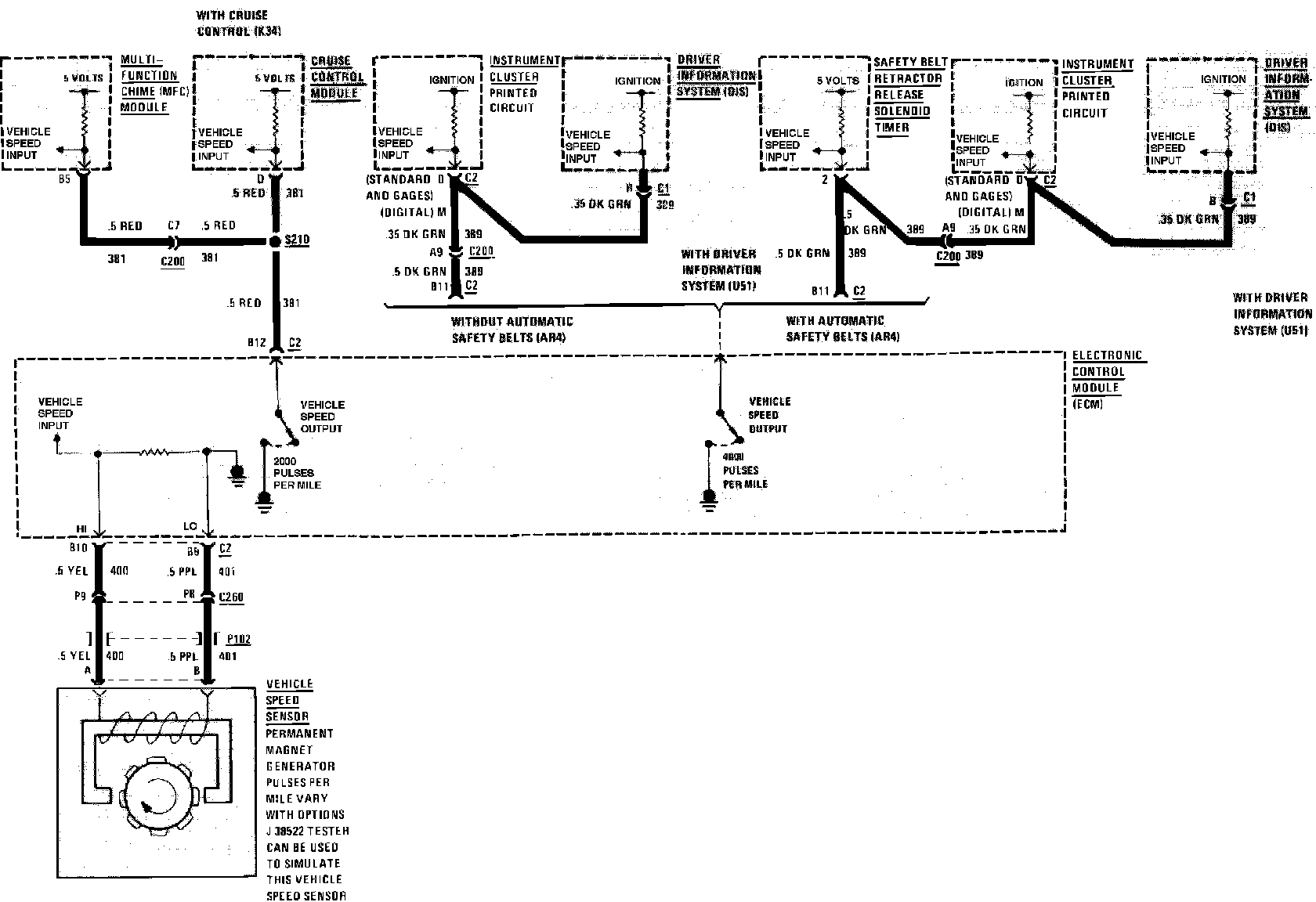

Vehicle Speed Sensor. Permanent Magnet Generator:



Vehicle Speed Sensor (VSS). Permanent Magnet Generator:
