Pictorial View

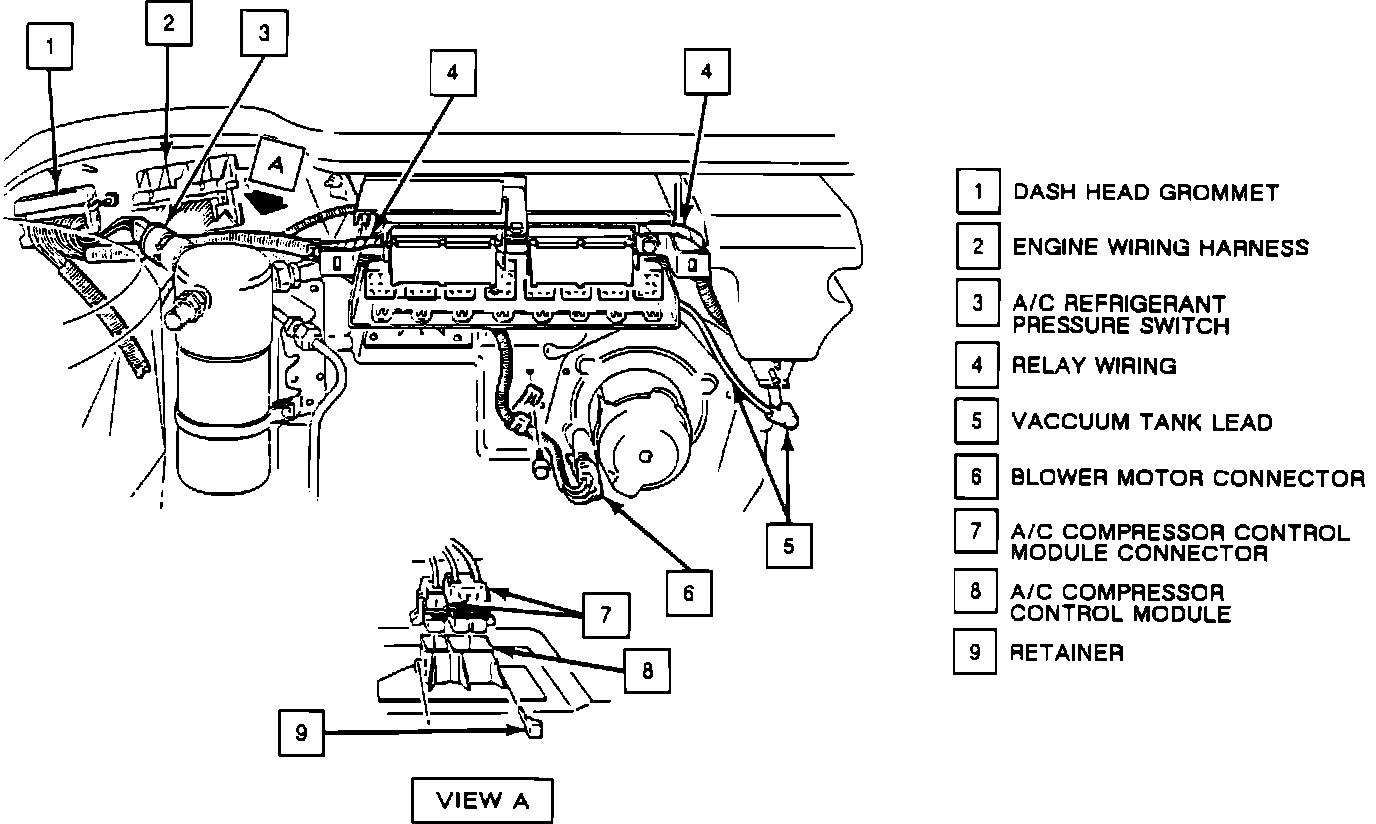

Pictorial View:

1 = DASH HEAD GROMMET
2 = ENGINE WIRING HARNESS
3 = A/C REFRIGERANT PRESSURE SWITCH
4 = RELAY WIRING
5 = VACUUM TANK LEAD
6 = BLOWER MOTOR CONNECTOR
7 = A/C COMPRESSOR CONTROL MODULE CONNECTOR
8 = A/C COMPRESSOR CONTROL MODULE
9 = RETAINER

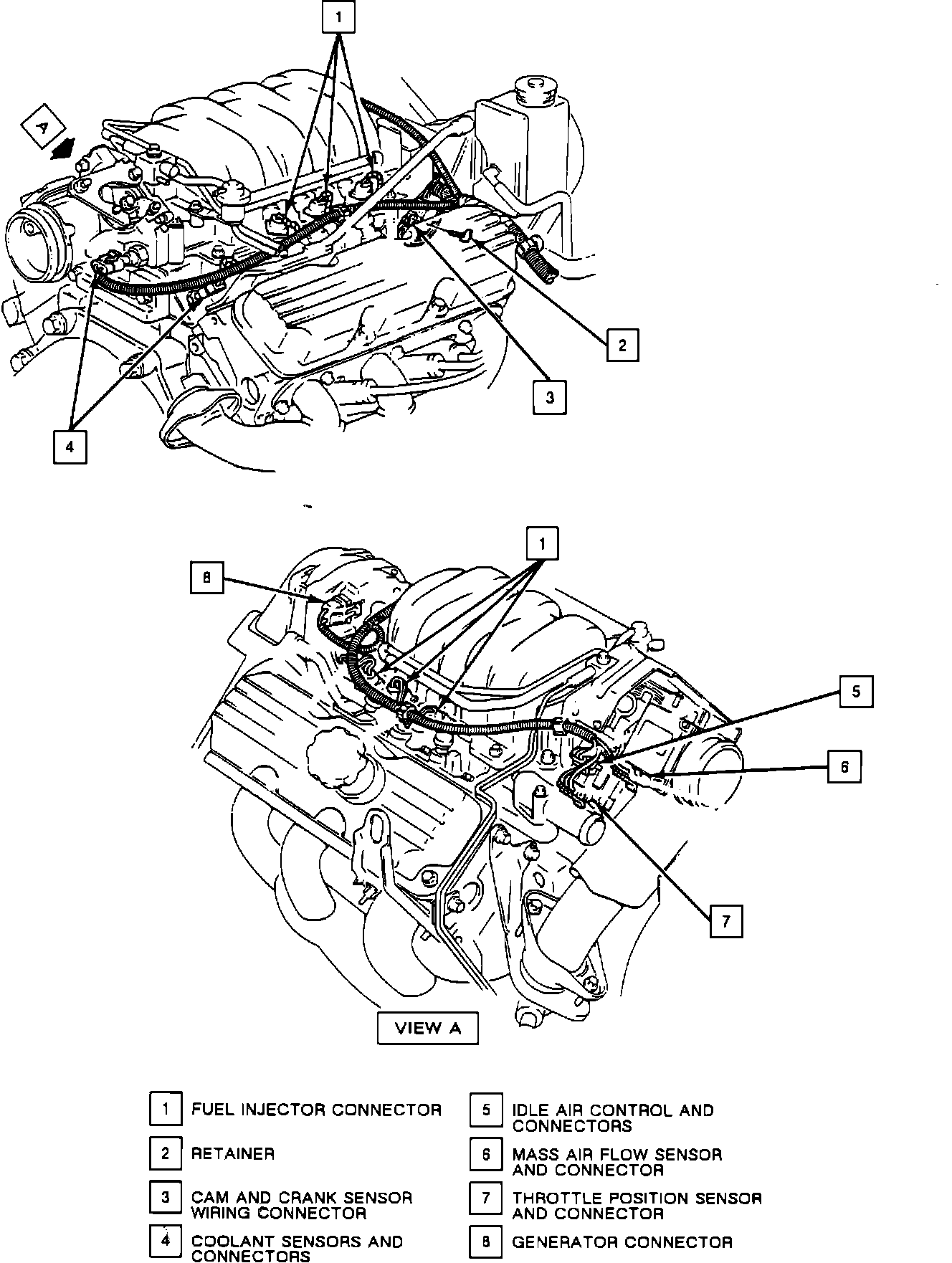

Pictorial View:

1 = FUEL INJECTOR CONNECTOR
2 = RETAINER
3 = CAM AND CRANK SENSOR WIRING CONNECTOR
4 = COOLANT SENSORS AND CONNECTORS
5 = IDLE AIR CONTROL AND CONNECTORS
6 = MASS AIR FLOW AND CONNECTOR
7 = THROTTLE POSITION SENSOR AND CONNECTOR
8 = GENERATOR CONNECTOR

Pictorial View:

1 = ENGINE HARNESS
2 = CAM AND CRANK HARNESS SENSOR
3 = ENGINE HARNESS GROUND
4 = A/C COMPRESSOR CONNECTOR
5 = A/C PRESSURE SWITCH CONNECTOR
6 = OIL PRESSURE SWITCH CONNECTOR
7 = LOW OIL LEVEL SENSOR CONNECTOR
8 = A/C COMPRESSOR CUT-OFF SWITCH CONNECTOR
9 = DETONATION SENSOR CONNECTOR
10 = VEHICLE SPEED SENSOR

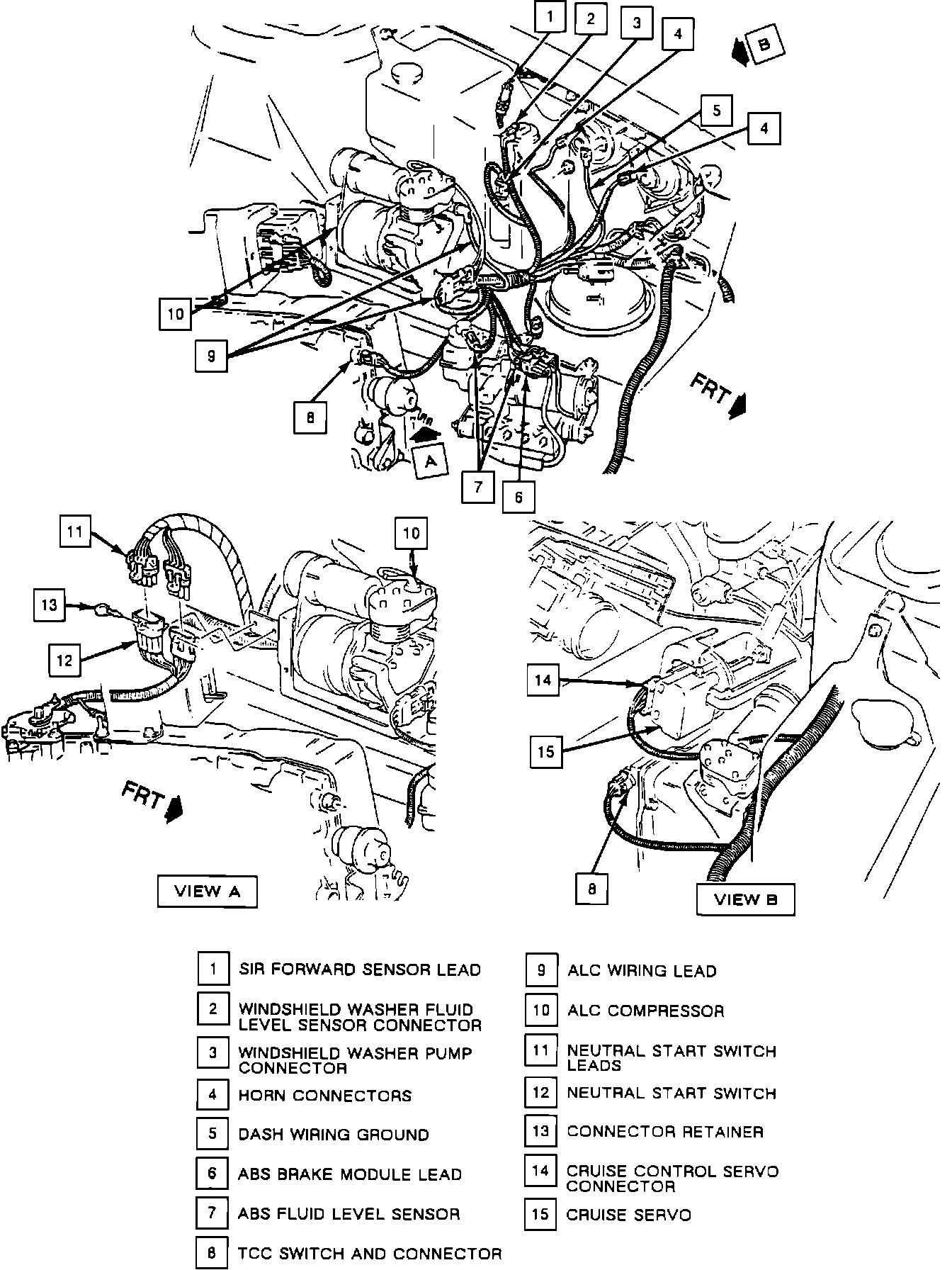

Pictorial View:

1 = SIR FORWARD SENSOR LEAD
2 = WINDSHIELD WASHER FLUID LEVEL SENSOR CONNECTOR
3 = WINDSHIELD WASHER FLUID LEVEL SENSOR CONNECTOR
4 = HORN CONNECTOR
5 = DASH WIRING GROUND
6 = ABS BRAKE MODULE LEAD
7 = ABS FLUID LEVEL SENSOR
8 = TCC SWITCH AND CONNECTOR
9 = ALC WIRING
10 = ALC COMPRESSOR
11 = NEUTRAL START SWITCH LEAD
12 = NEUTRAL START SWITCH
13 = CONNECTOR RETAINER
14 = CRUISE CONTROL SERVO CONNECTOR
15 = CRUISE SERVO

Pictorial View:

1 = ENGINE HARNESS
2 = OXYGEN SENSOR CONNECTOR
3 = RETAINER BOLT
4 = OXYGEN SENSOR
5 = RETAINER

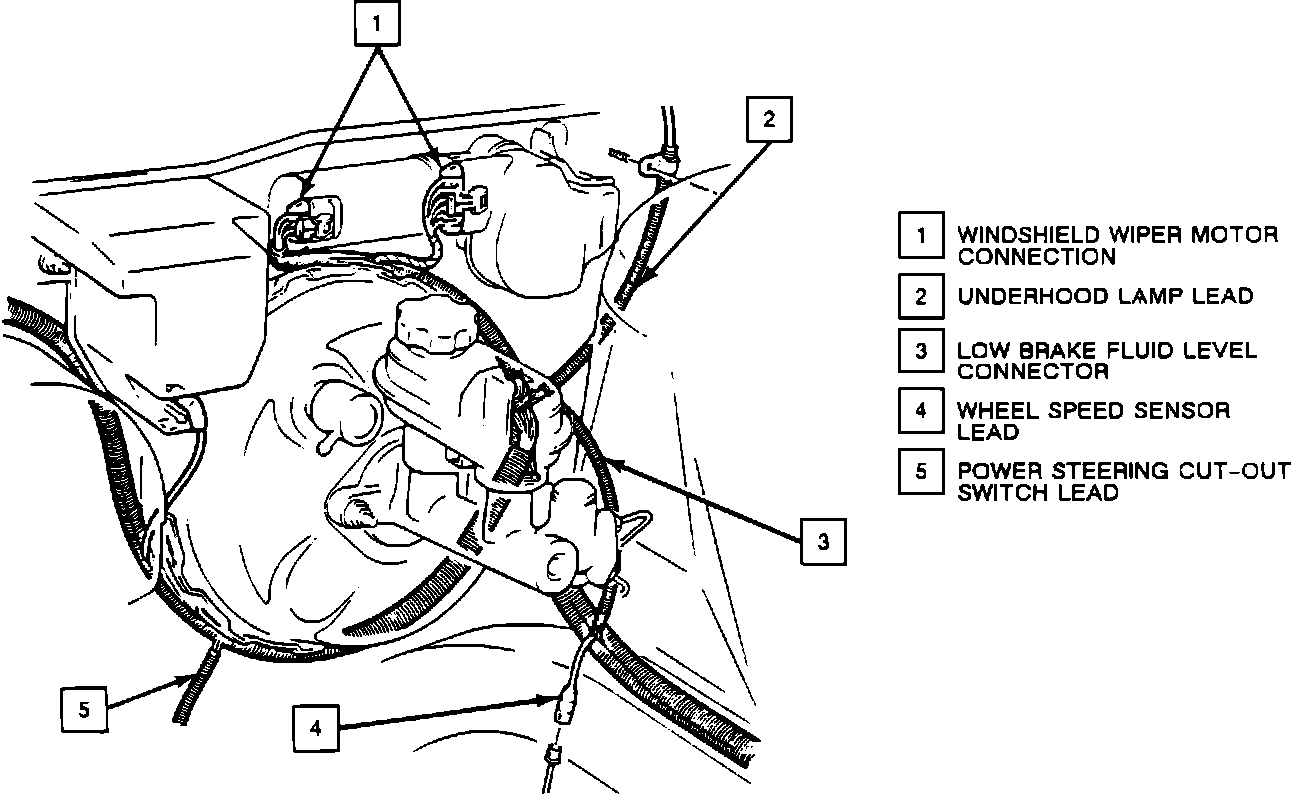

Pictorial View:

1 = WINDSHIELD WIPER MOTOR CONNECTION
2 = UNDERHOOD LAMP LEAD
3 = LOW BRAKE FLUID LEVEL CONNECTOR
4 = WHEEL SPEED SENSOR LEAD
5 = POWER STEERING CUT-OUT SWITCH LEAD

Pictorial View:

1 = POWER STEERING PRESSURE SWITCH CONNECTOR
2 = POWER STEERING PRESSURE SWITCH
3 = STEERING RACK

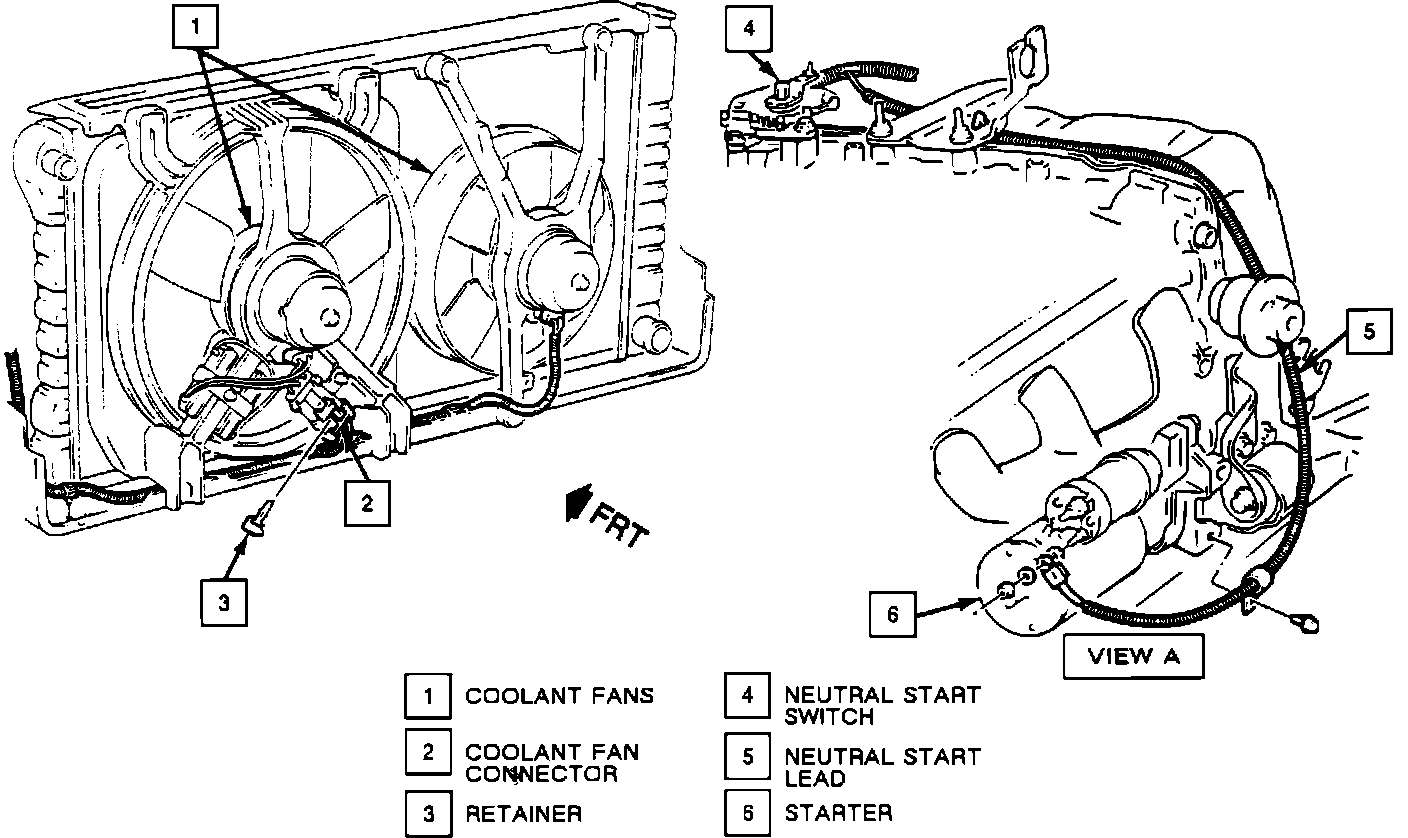

Pictorial View:

1 = COOLANT FANS
2 = COOLANT FAN CONNECTOR
3 = RETAINER
4 = NEUTRAL START SWITCH
5 = NEUTRAL START LEAD
6 = STARTER

Pictorial View:

1 = POSITIVE BOOSTER CABLE
2 = GENERATOR
3 = NUT
4 = RETAINER BOLT
5 = STARTER
6 = POSITIVE BATTERY CABLE
7 = NUT
