Ground Distribution
>>
G202
G202

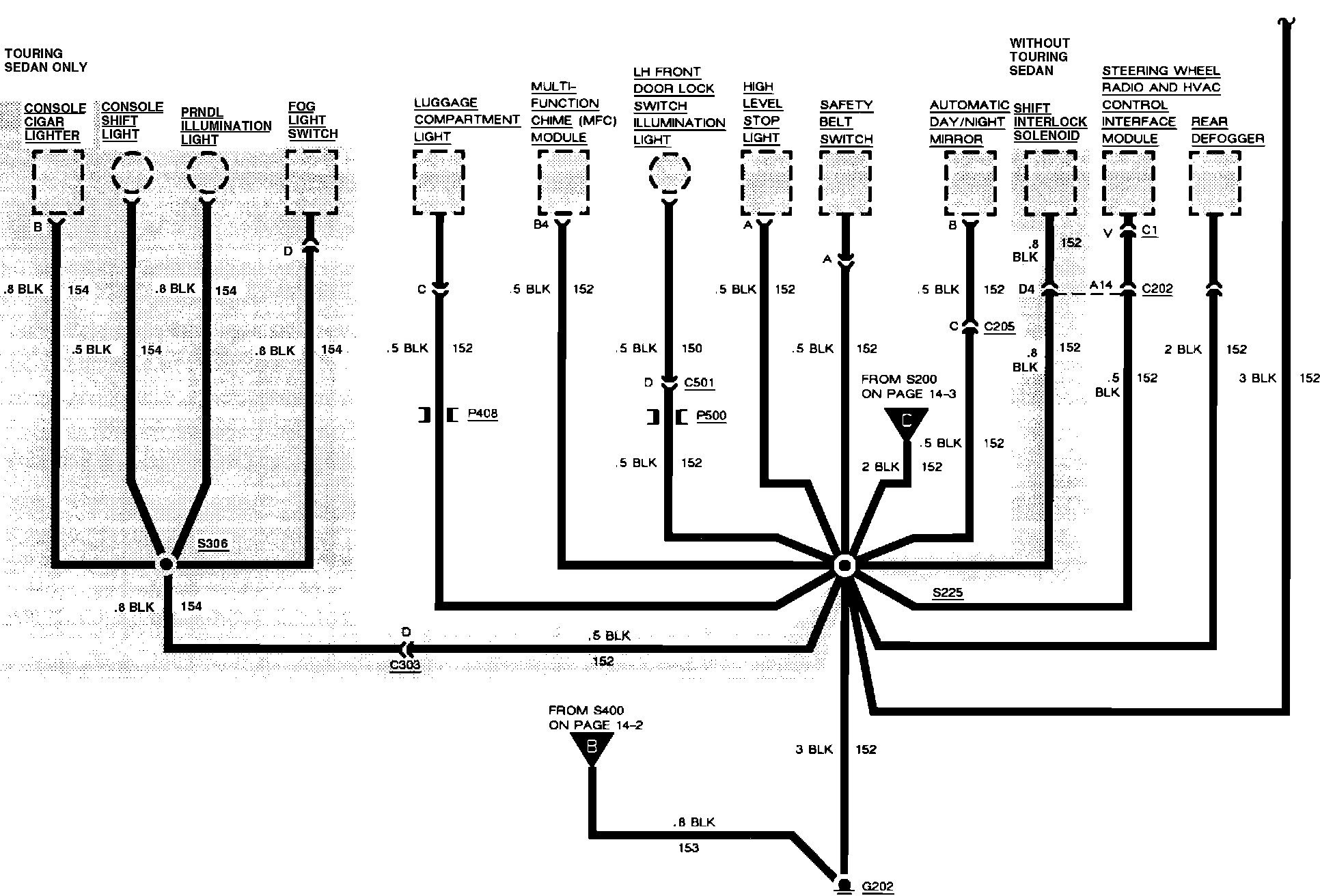

Ground Distribution. G202:

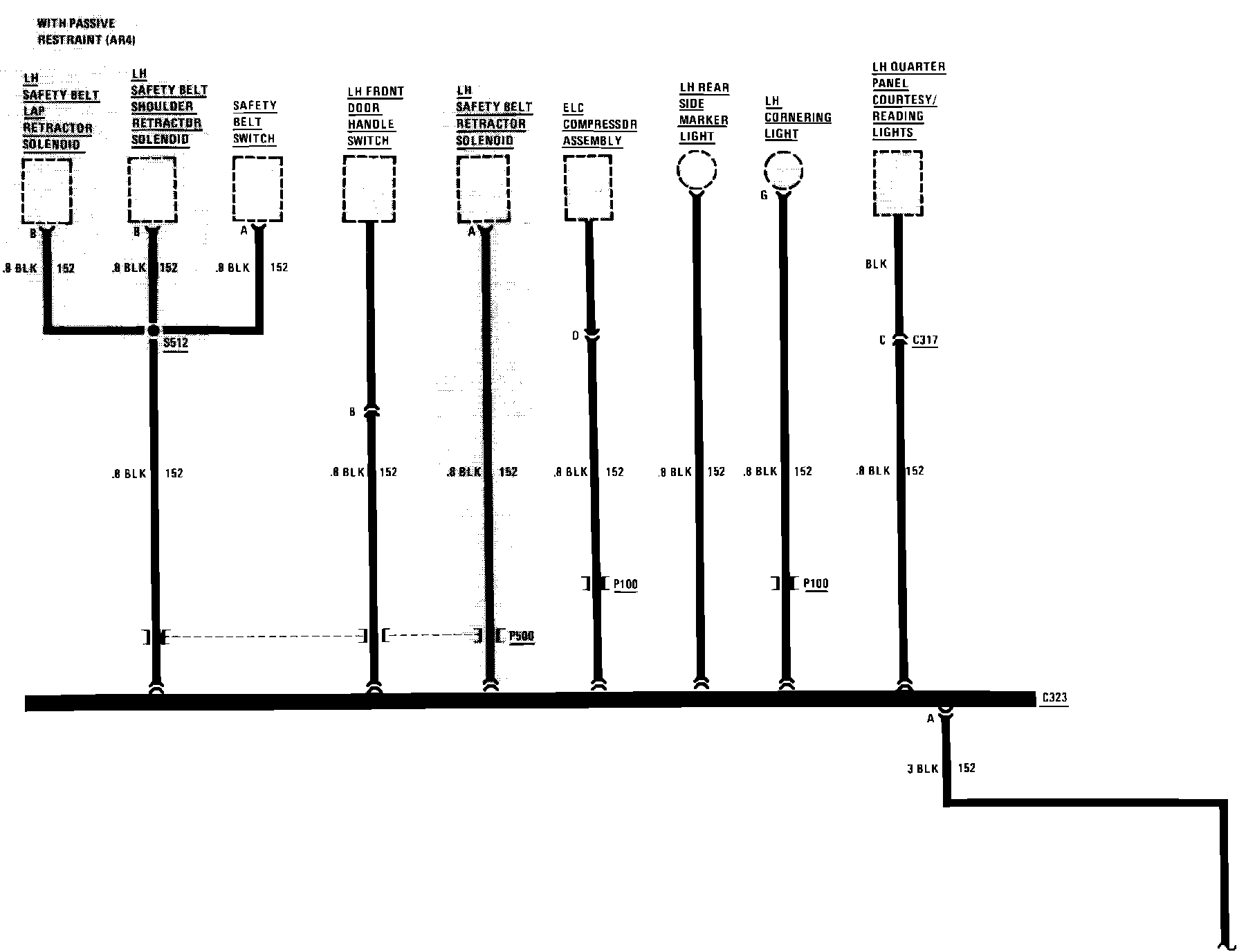

Ground Distribution. G202 & G403:

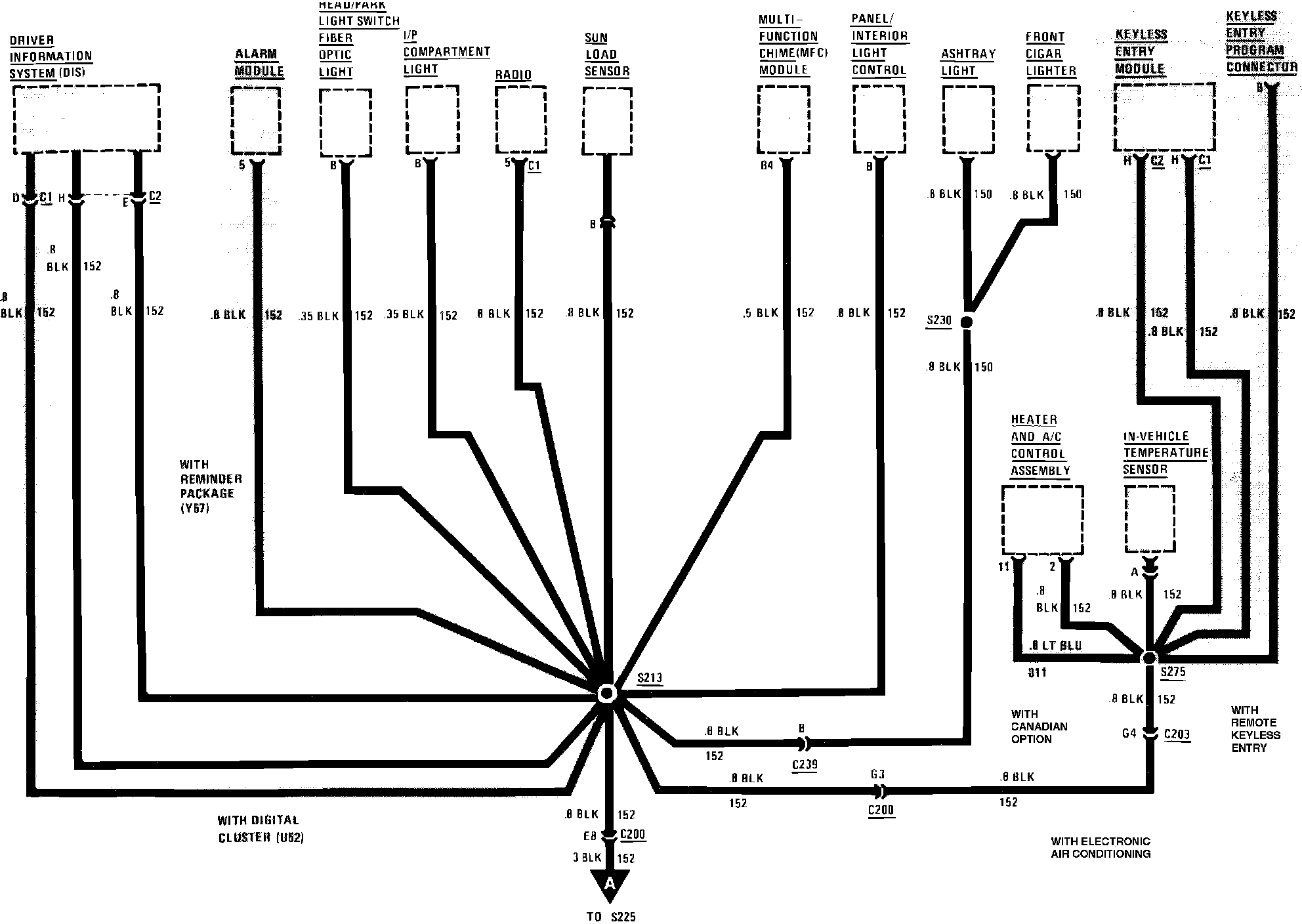

Ground Distribution. G202 & G403:

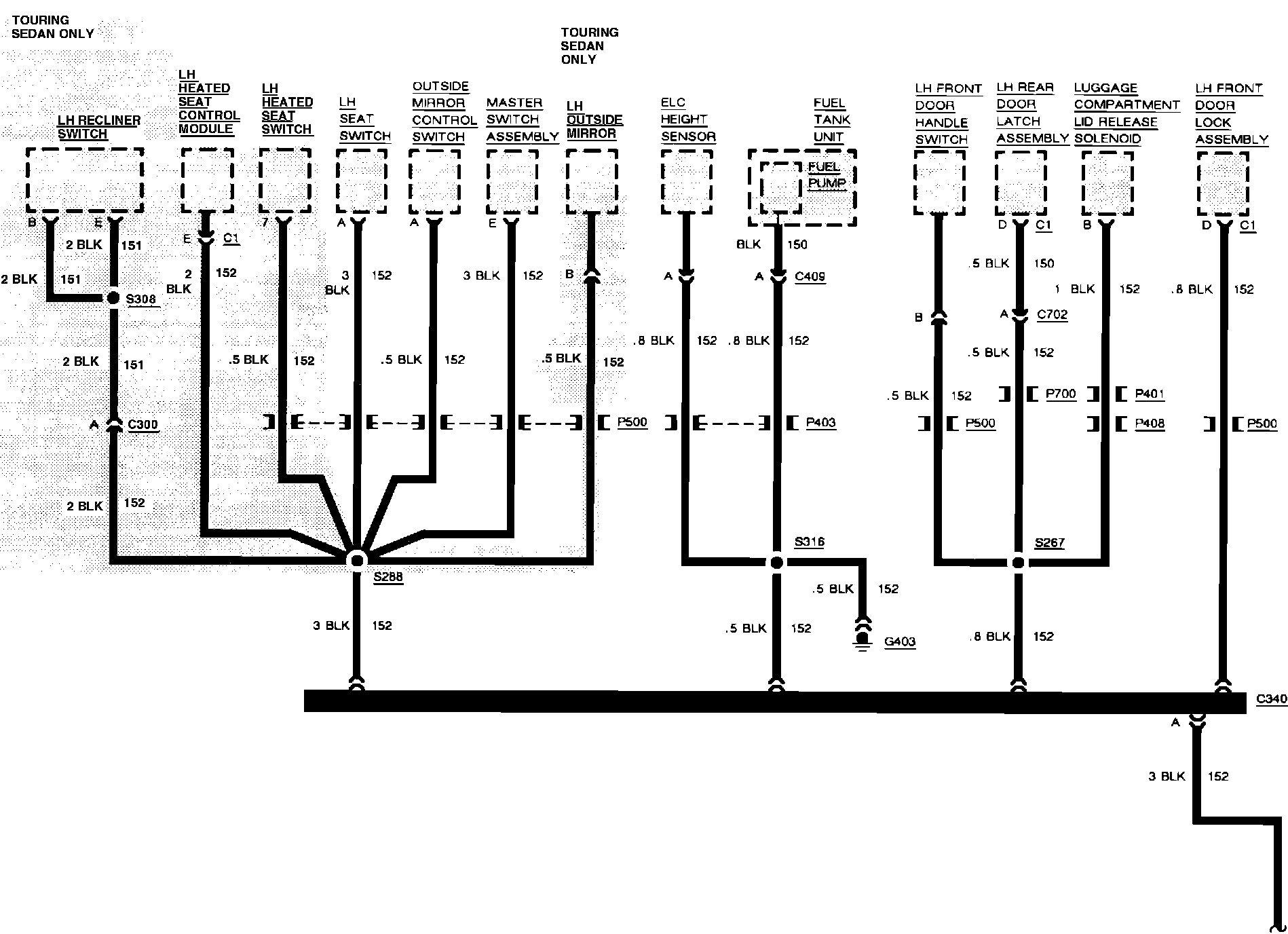

Ground Distribution. G202:
Ground Distribution. G202:
Ground Distribution. G202:
