Wiper Blade - Correct Orientation


91olds02

NUMBER: 91-T-102

CORP.REF.NO: 111501R

DATE: April 1991

SECTION: 8E


SUBJECT: WINDSHIELD WIPER BLADE ORIENTATION


MODELS/YEARS: 1991 NINETY-EIGHT

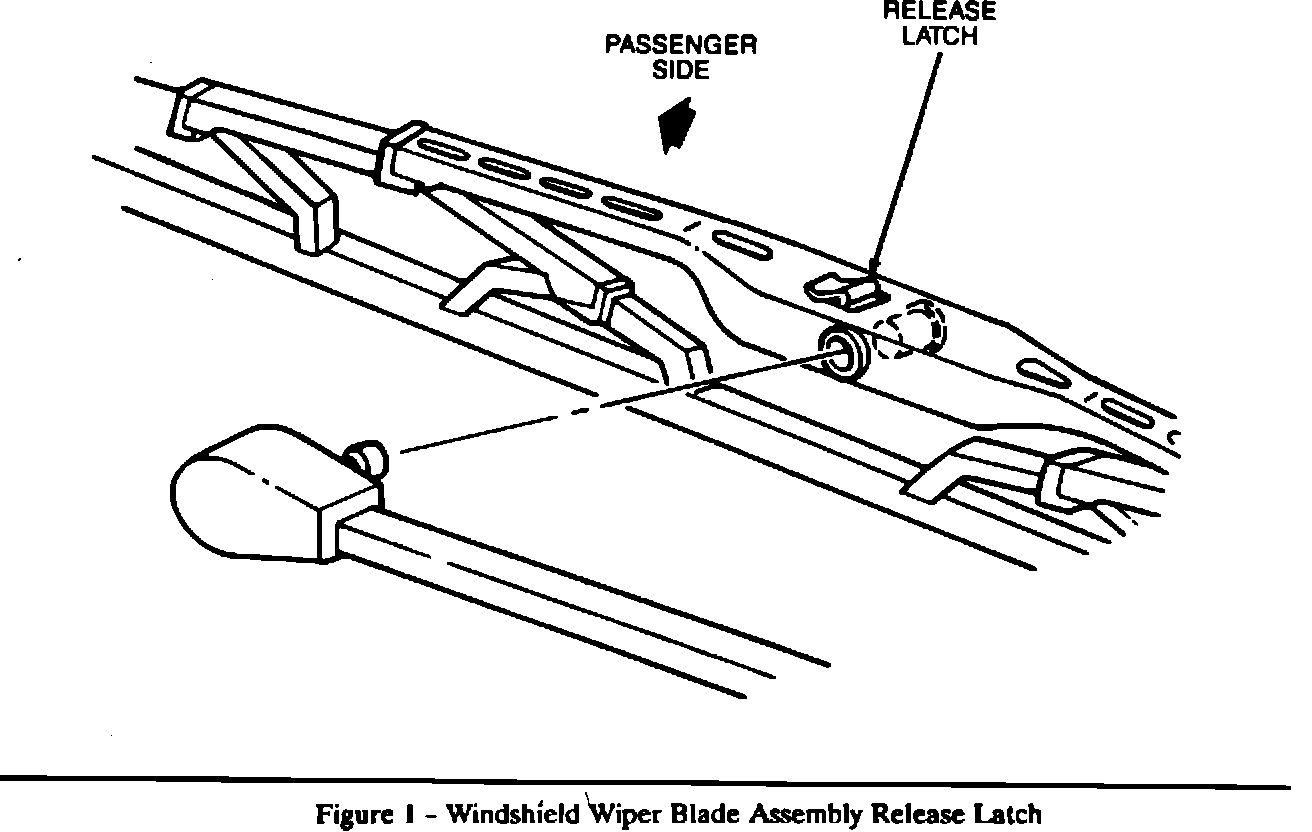

Figure 1 - Wiper Blade Release Latch:





In order to achieve maximum wiping performance, correct blade orientation must be maintained. When property installed, the windshield wiper blade assembly release latch will point toward the passenger side of the vehicle. Refer to the Illustration below. We do not recommend the practice of switching the blade orientation.
