Home >> Oldsmobile >> 1991 >> Toronado V6-3800 3.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Headlamp >> System Diagram

System Diagram

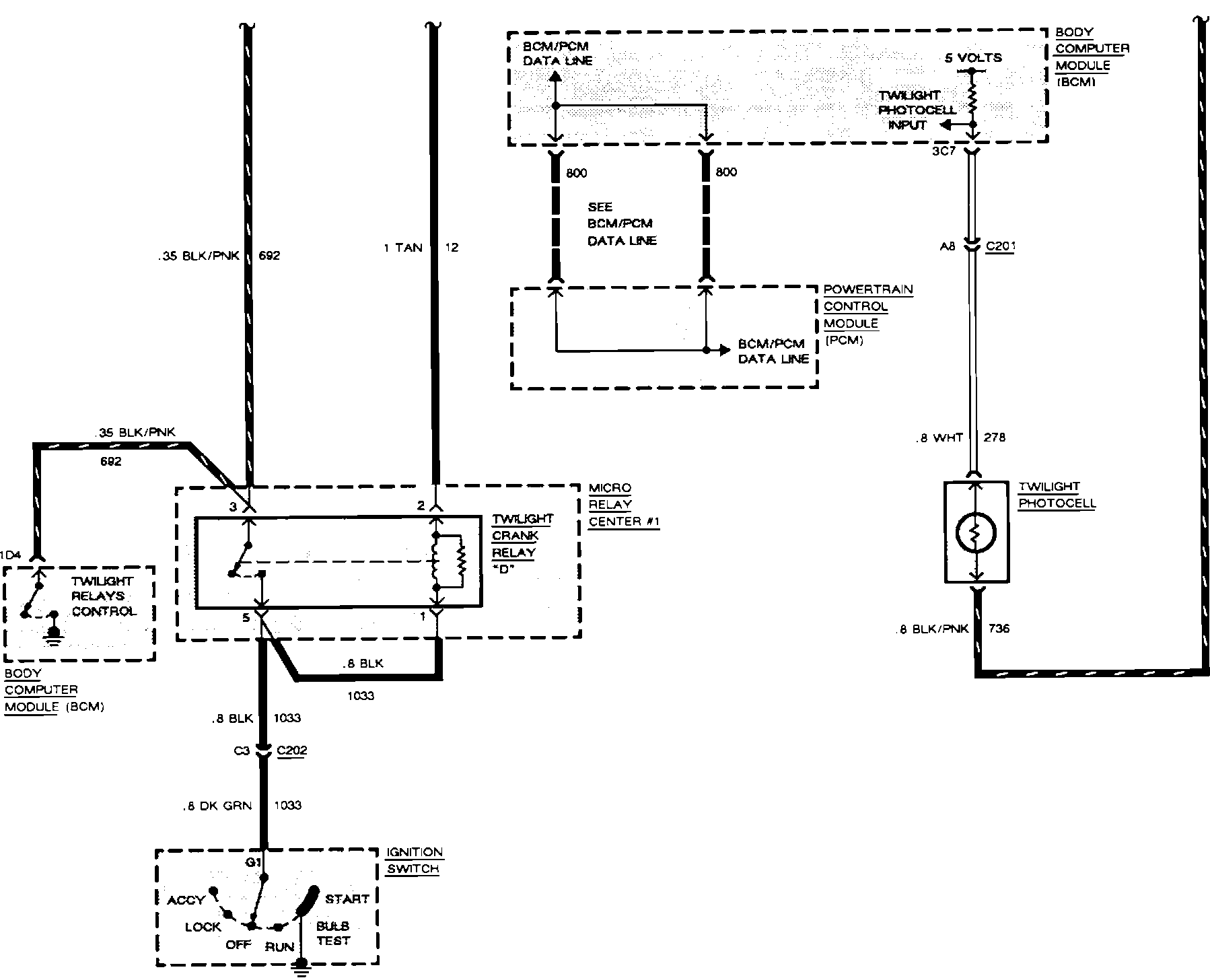

Headlights With Sentinel:

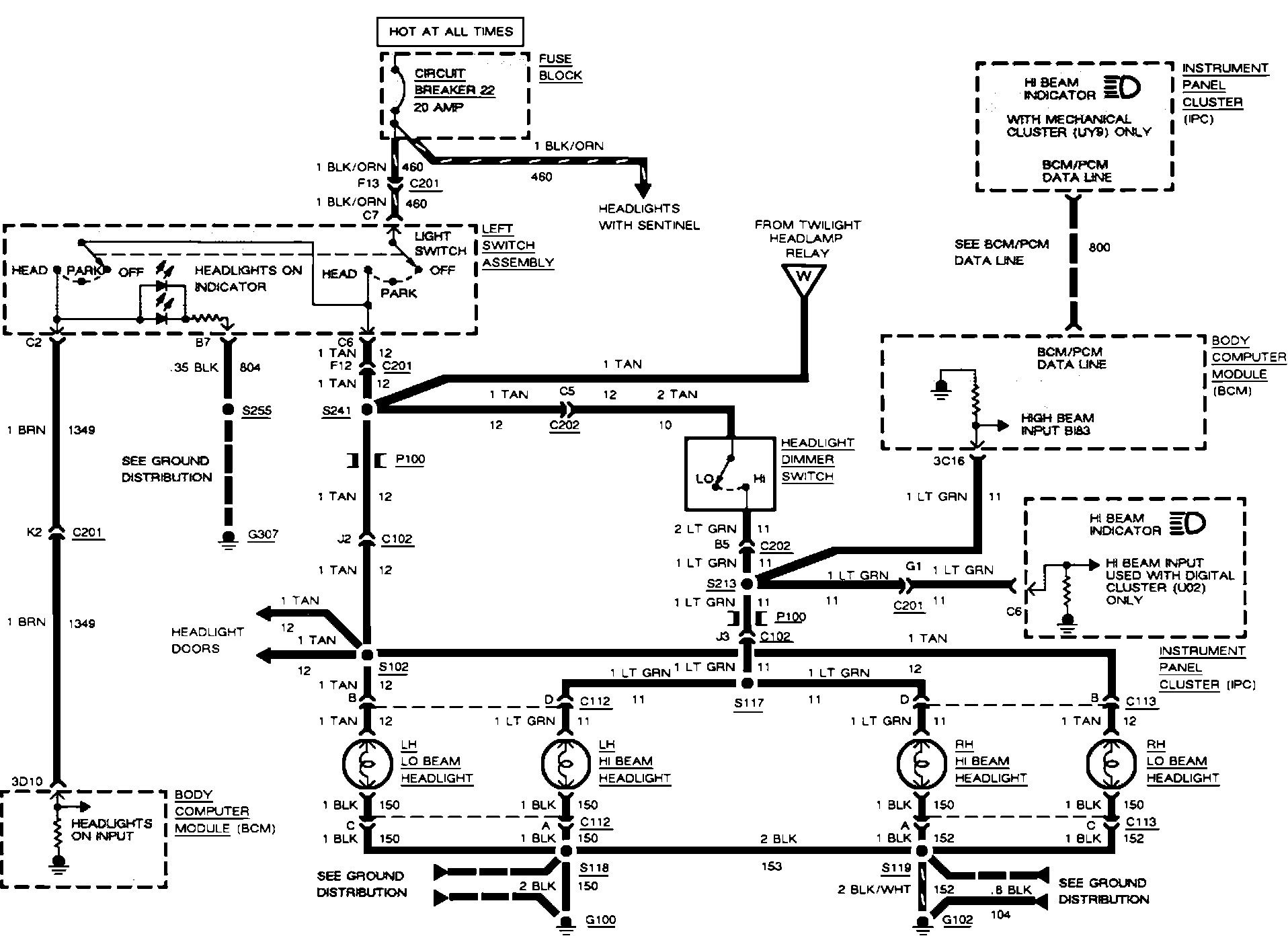

Headlights With Sentinel:



Headlights With Sentinel:
