Operation CHARM
: Car repair manuals for everyone.
Home
>>
Oldsmobile
>>
1991
>>
Toronado V6-3800 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Turn Signals
>>
Turn, Hazard & Stop
Turn, Hazard & Stop

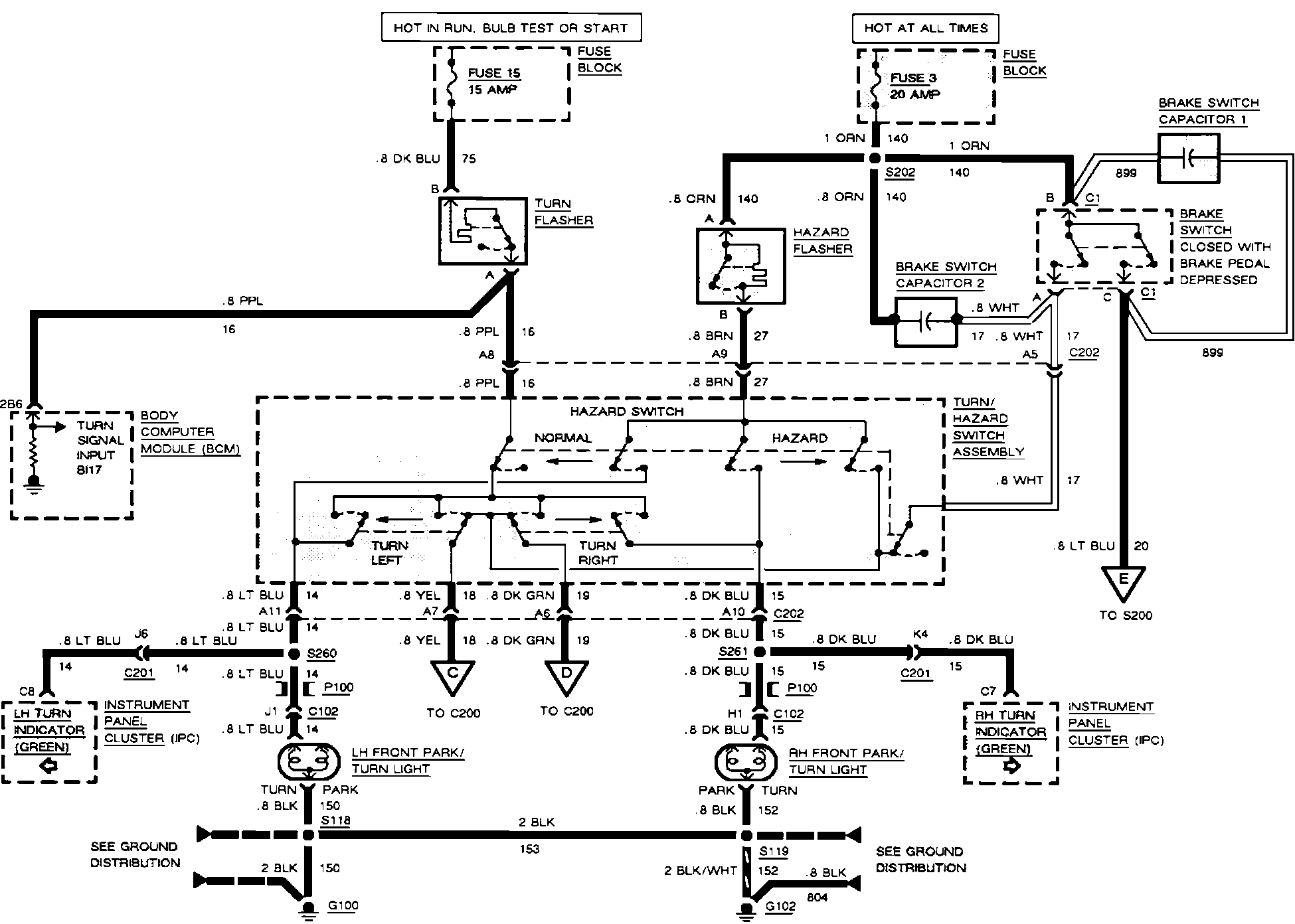

Exterior Lights. Turn, Hazard, Stop & High Center Mounted Stop:

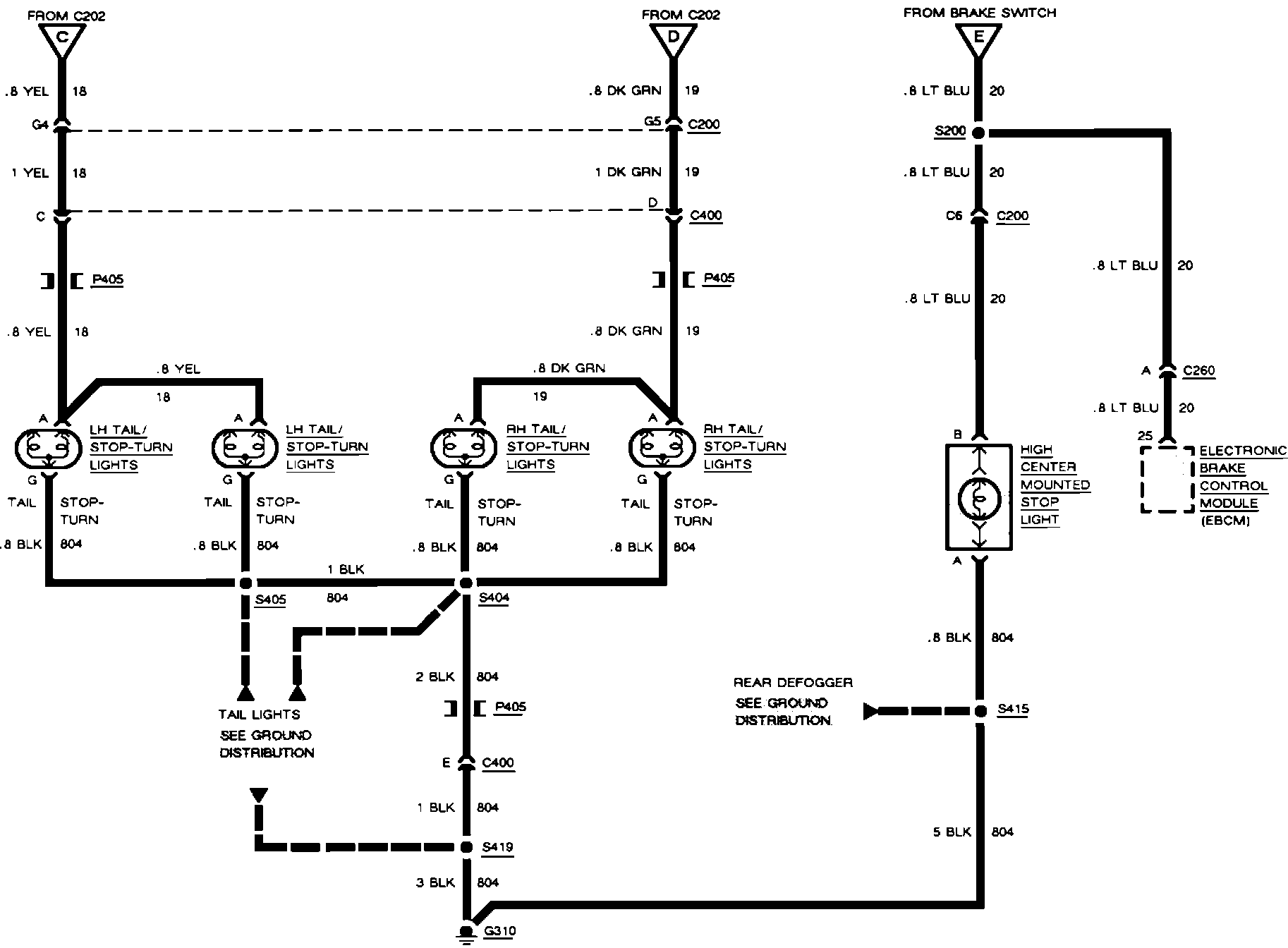

Exterior Lights. Turn, Hazard, Stop & High Center Mounted Stop:
