Instrument Panel Dimming (with Digital or Mechanical Cluster)

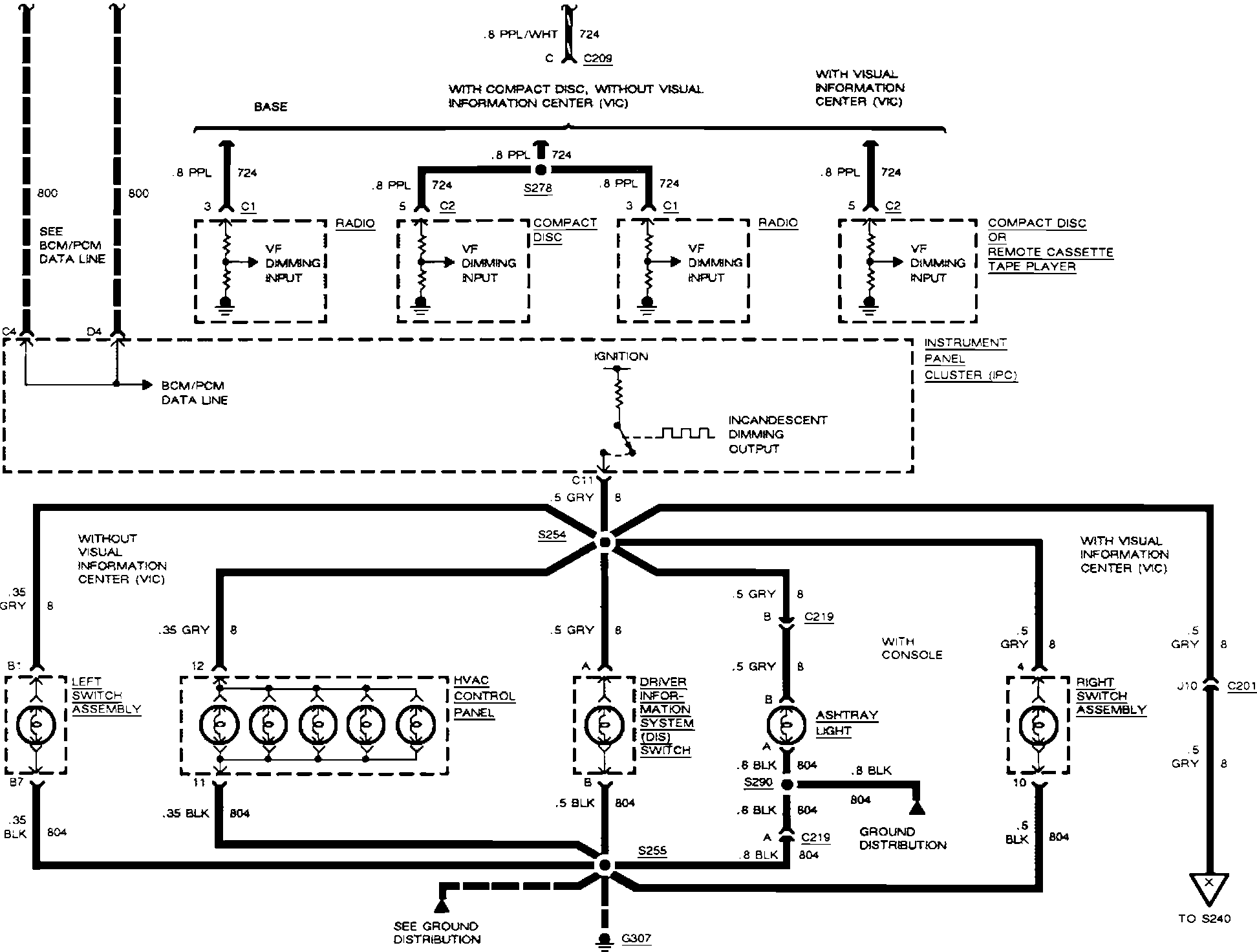

Instrument Panel Dimming: W/Digital Or Mechanical Cluster.:

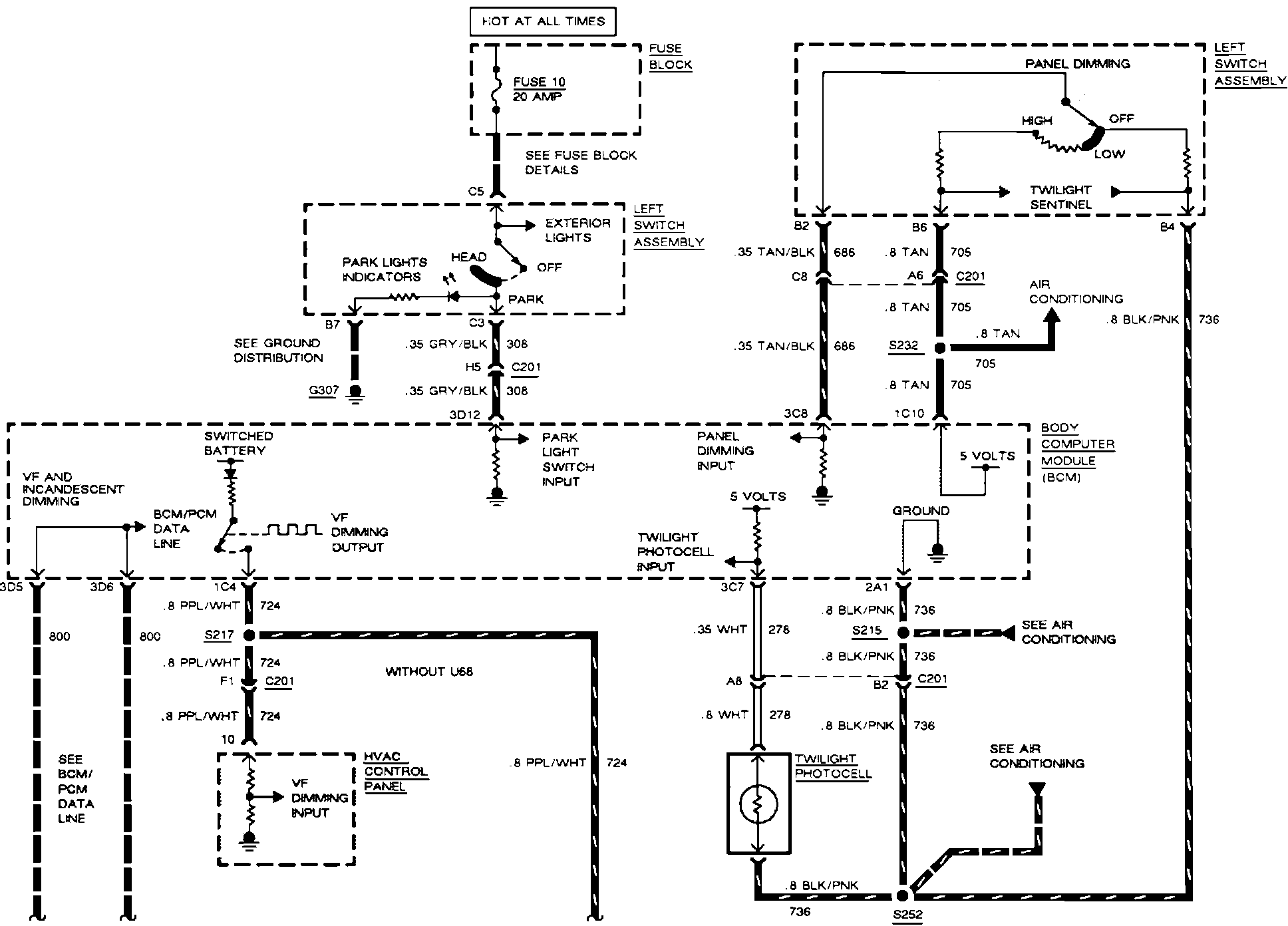

Instrument Panel Dimming: W/Digital Or Mechanical Cluster.:



Instrument Panel Dimming: W/Digital Or Mechanical Cluster.:



Instrument Panel Dimming: W/Digital Or Mechanical Cluster.:
