Dimension & Clearance Specifications - Engine

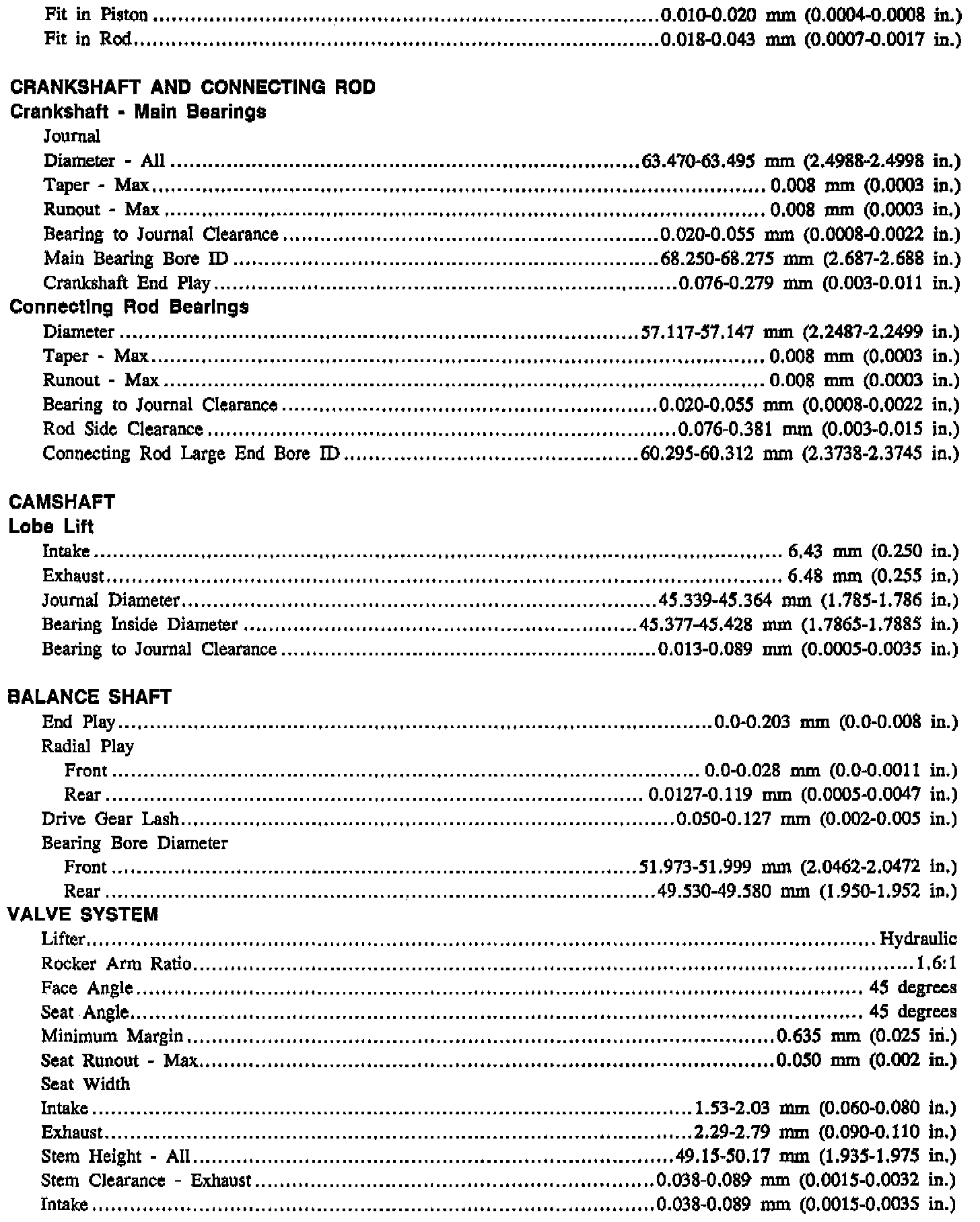

Engine Specifications:

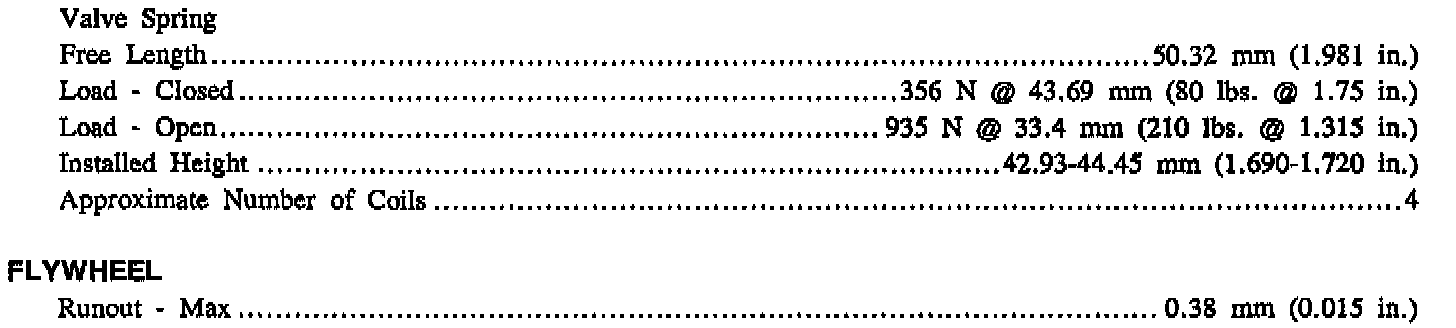

Engine Specifications (continued):





Engine Specifications (continued):
