Operation CHARM: Car repair manuals for everyone.
Home >> Oldsmobile >> 1992 >> Achieva L4-138 2.3L SOHC VIN 3 MFI >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Specifications >> Engine Specifications

Engine Specifications

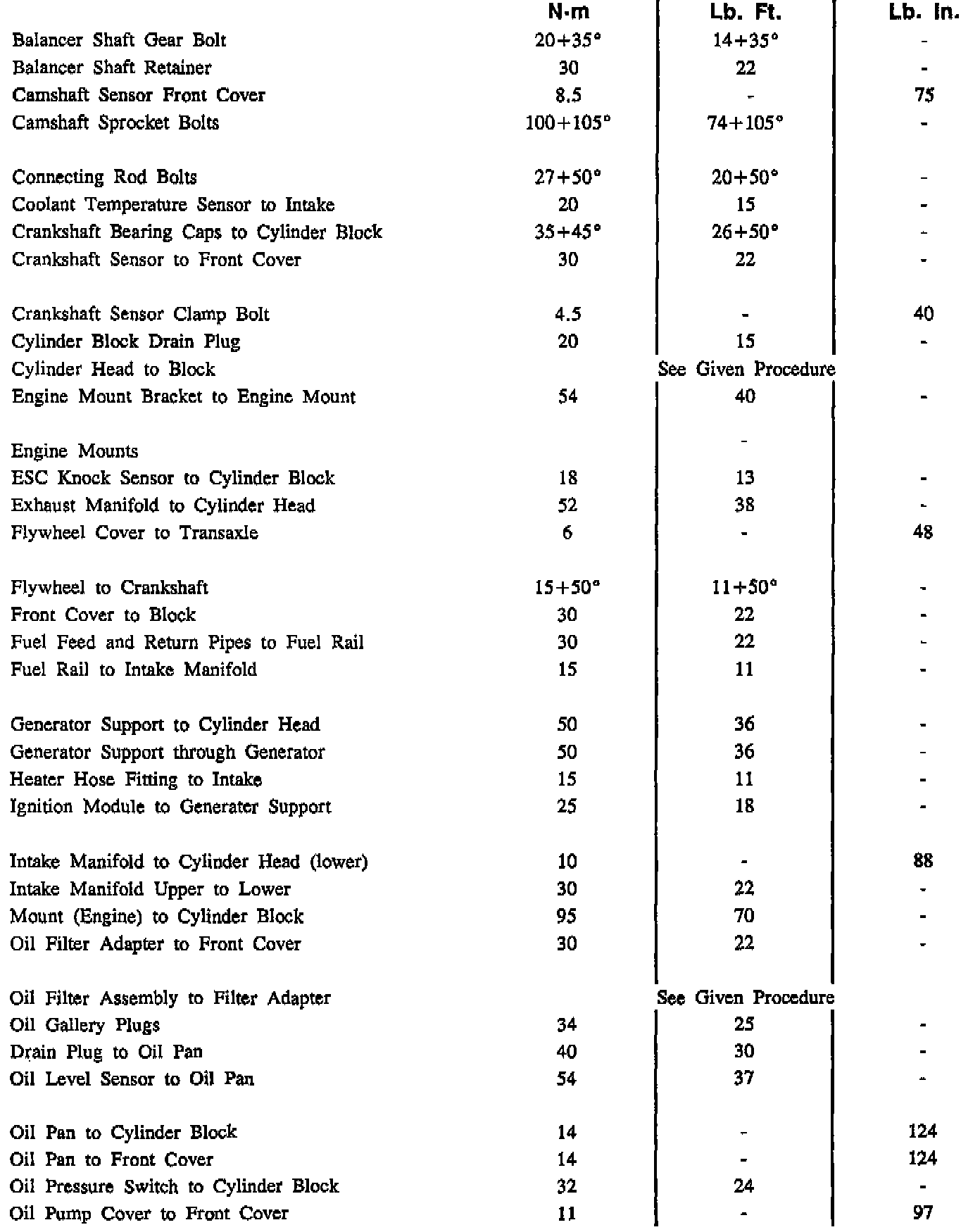

Torque Specifications:

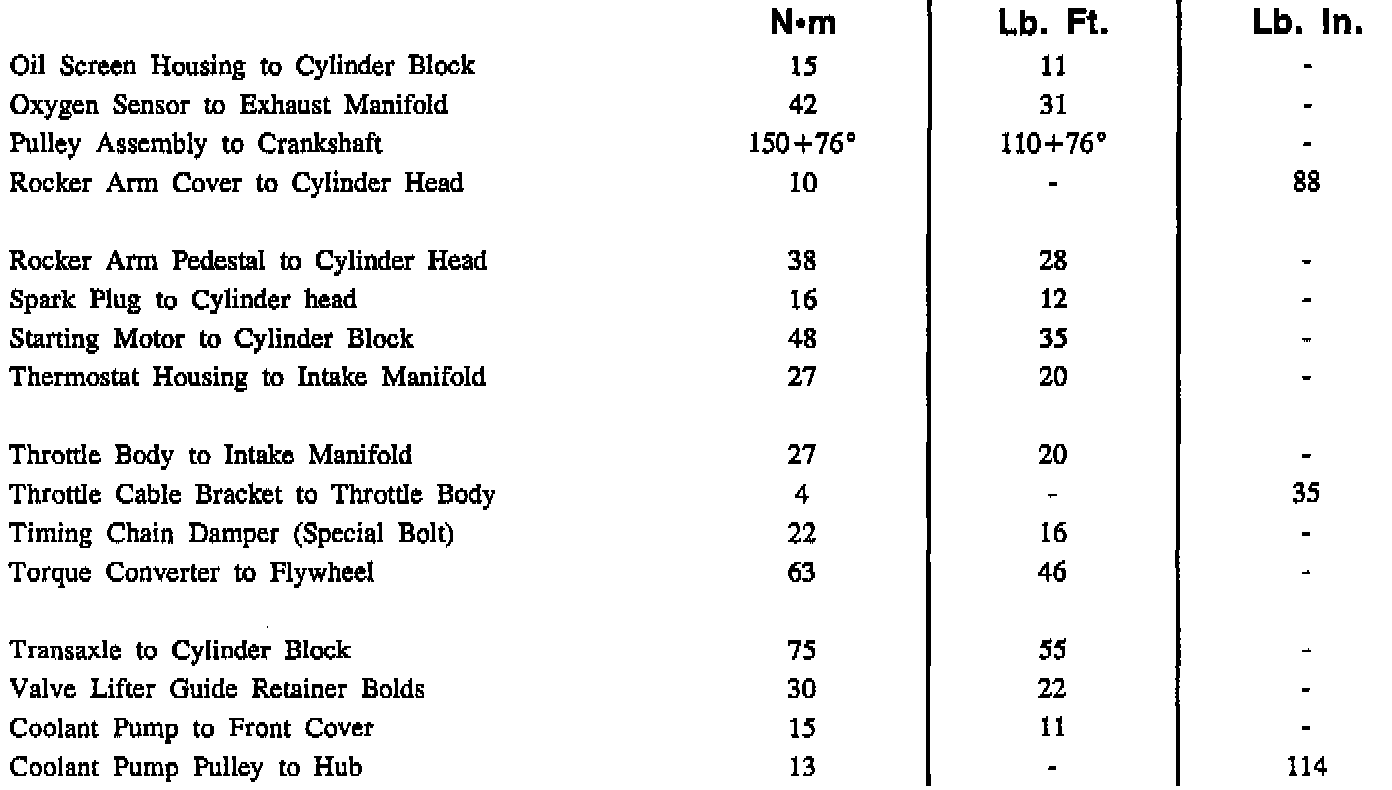

Torque Specifications (continued):





Cylinder Head Bolt Tightening Sequence:





Intake Manifold Sequence:
