Home
>>
Oldsmobile
>>
1992
>>
Achieva L4-138 2.3L VIN D FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Suspension Control Module
Suspension Control Module

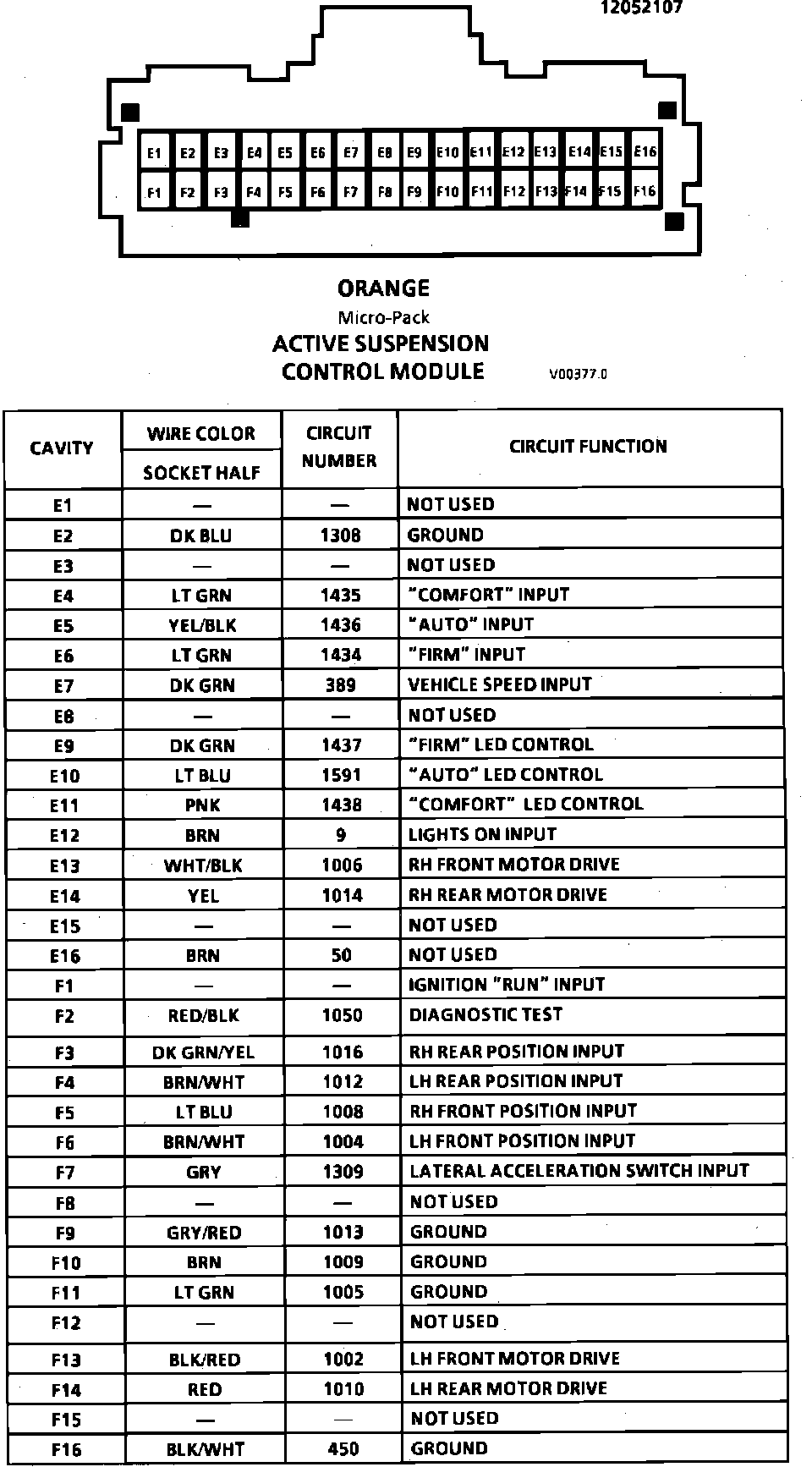

Active Suspension Control Module Connector Face:
