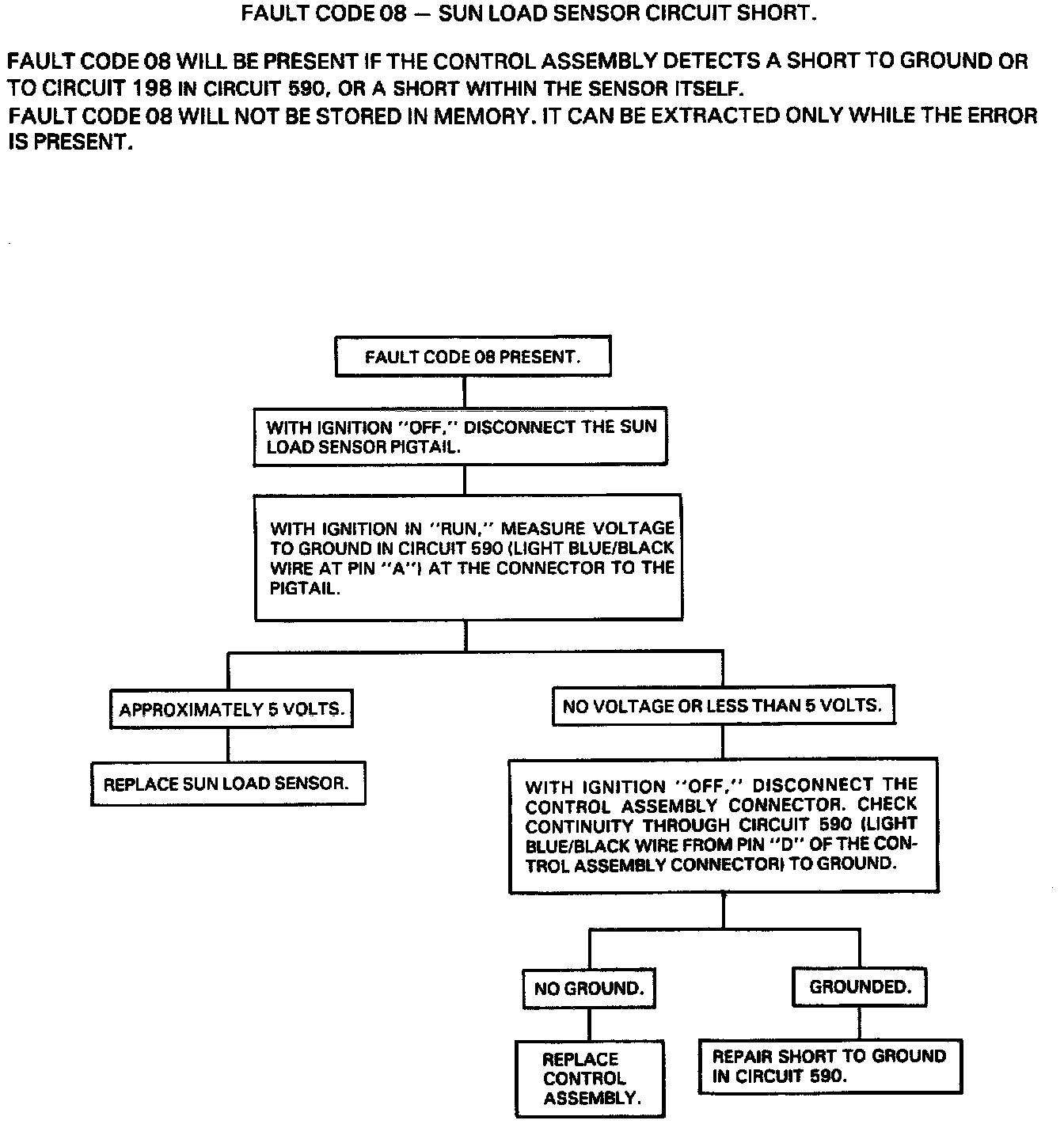

DTC 08

CIRCUIT DESCRIPTION

The sun load sensor (4) is a reverse bias photodiode which measures sun load. In "AUTO" the sun load sensor (4) is an input to control air delivery. in bright sun light, the influence of the sun load sensor (4) is comparable to lowering the guide temperature setting by as much as three degrees.
