LH Lower Tail/Turn/Stoplamp
LH Lower Tail/Turn/Stoplamp

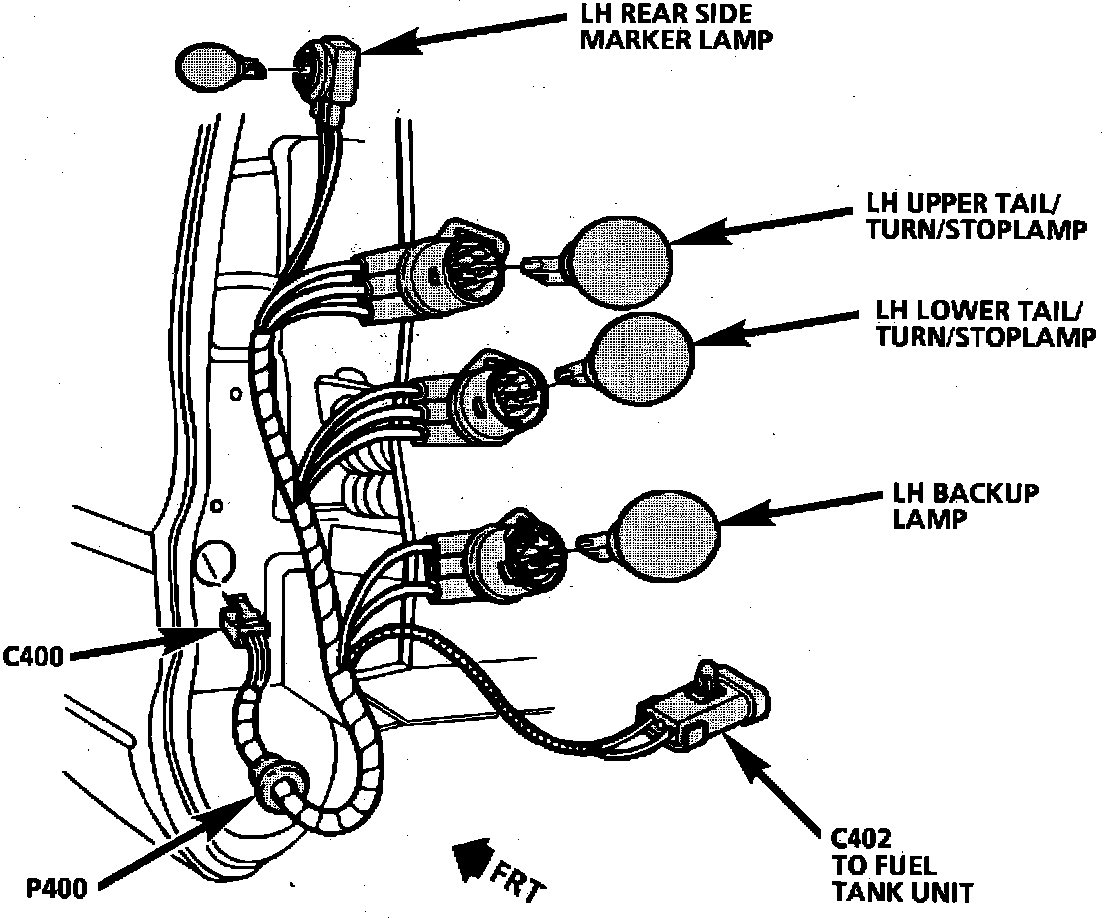

Component Location View. LH Taillamp Harness (Wagon):
LH rear of Vehicle
