A/C - Evaporator Leaks Into Passenger Compartment

NUMBER:
92-T-152

CORP.REF.NO:
231207R

DATE:
December 1992

SECTION:
1A



SUBJECT:
A/C EVAPORATOR CASE DRAIN DRIPS INTO PASSENGER SIDE COMPARTMENT - INSTALL NEW RUBBER DRAIN TUBE

MODELS/YEARS:
1992 CUSTOM CRUISER



CONDITION:
Condensate water from the evaporator drain tube can leak into the passenger compartment (passenger side floor area).

CAUSE:
Under conditions of extreme humidity, air flow through the engine compartment can allow a small amount of condensate water to work past the seal of the evaporator drain tube. The water then slowly drips or seeps into the passenger side front compartment.

If there is a large volume of water, use normal diagnostic procedures to determine the cause of the leak.

CORRECTION:

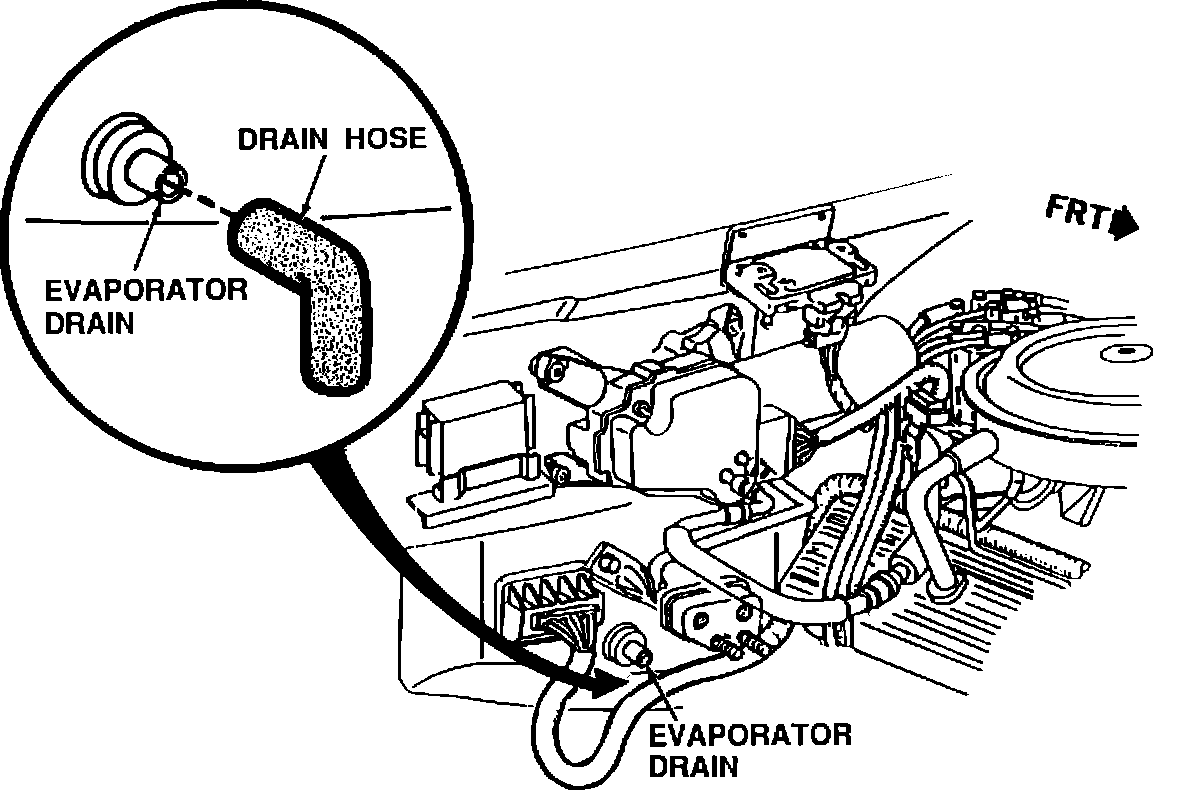

Inspect the evaporator drain tube for blockage, clear as required. Install the 90 degree rubber drain tube P/N 22542866 over the existing tube, pointed downward, as illustrated. This will allow the water to drain down away from the evaporator drain opening. This part is currently available from GMSPO.

Labor Operation No.:
T7985
Labor Time:
0.2 hour
Trouble Code:
92
