Operation CHARM
: Car repair manuals for everyone.
Home
>>
Oldsmobile
>>
1992
>>
Cutlass Ciera V6-3300 3.3L
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Seat Belt Systems
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

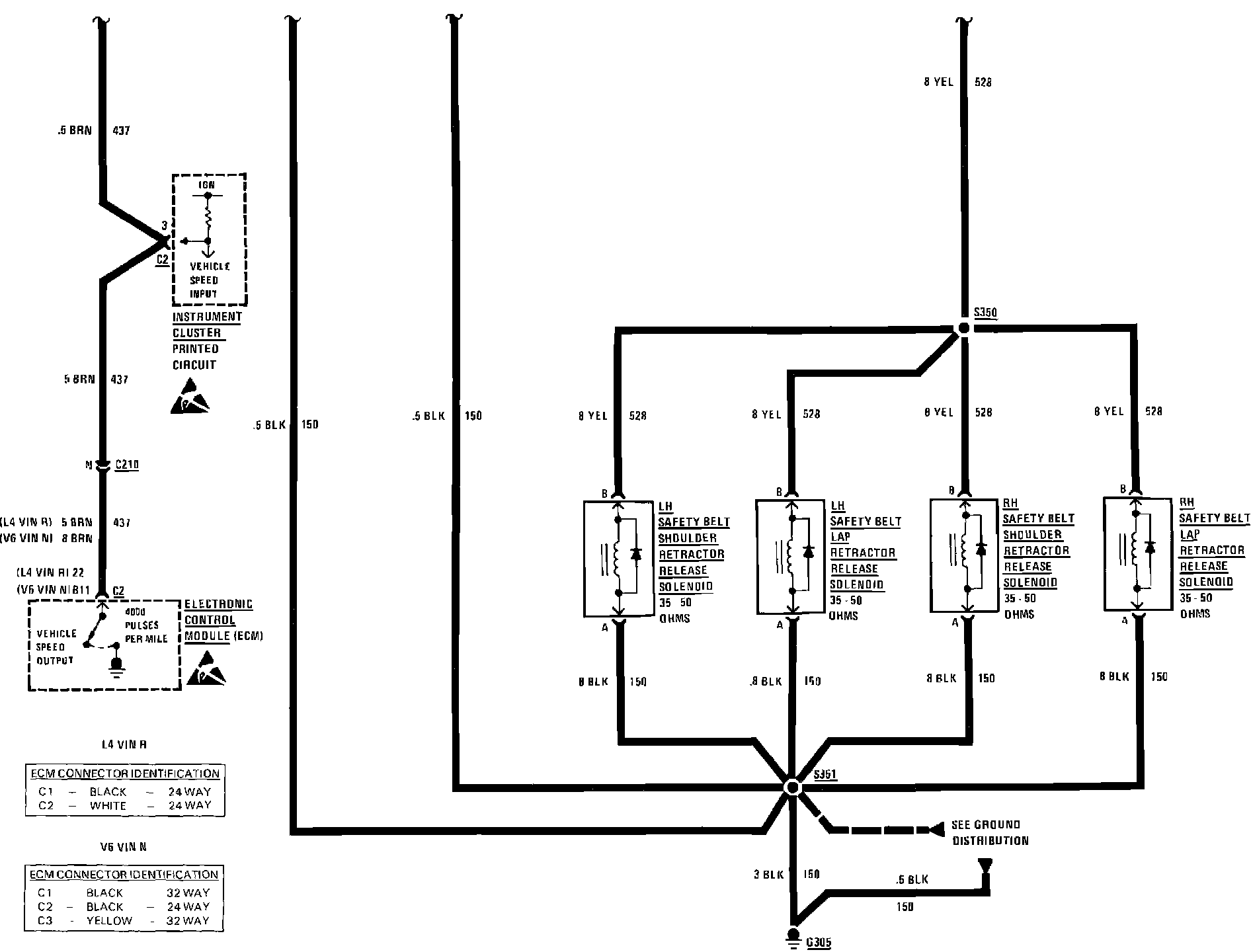

Automatic Safety Belts (Part 1 of 2):
Automatic Safety Belts (Part 2 of 2):
