Home
>>
Oldsmobile
>>
1992
>>
Cutlass Supreme FWD V6-189 3.1L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Lighting and Horns
>>
Fog/Driving Lamp Switch
Fog/Driving Lamp Switch

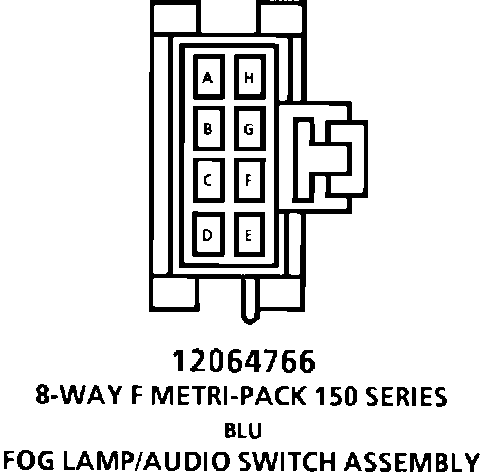

Fog Lamp/Audio Switch Assembly Connector Face:
