Operation CHARM
: Car repair manuals for everyone.
Home
>>
Oldsmobile
>>
1992
>>
Cutlass Supreme FWD V6-189 3.1L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Doors
>>
With Keyless Entry
With Keyless Entry

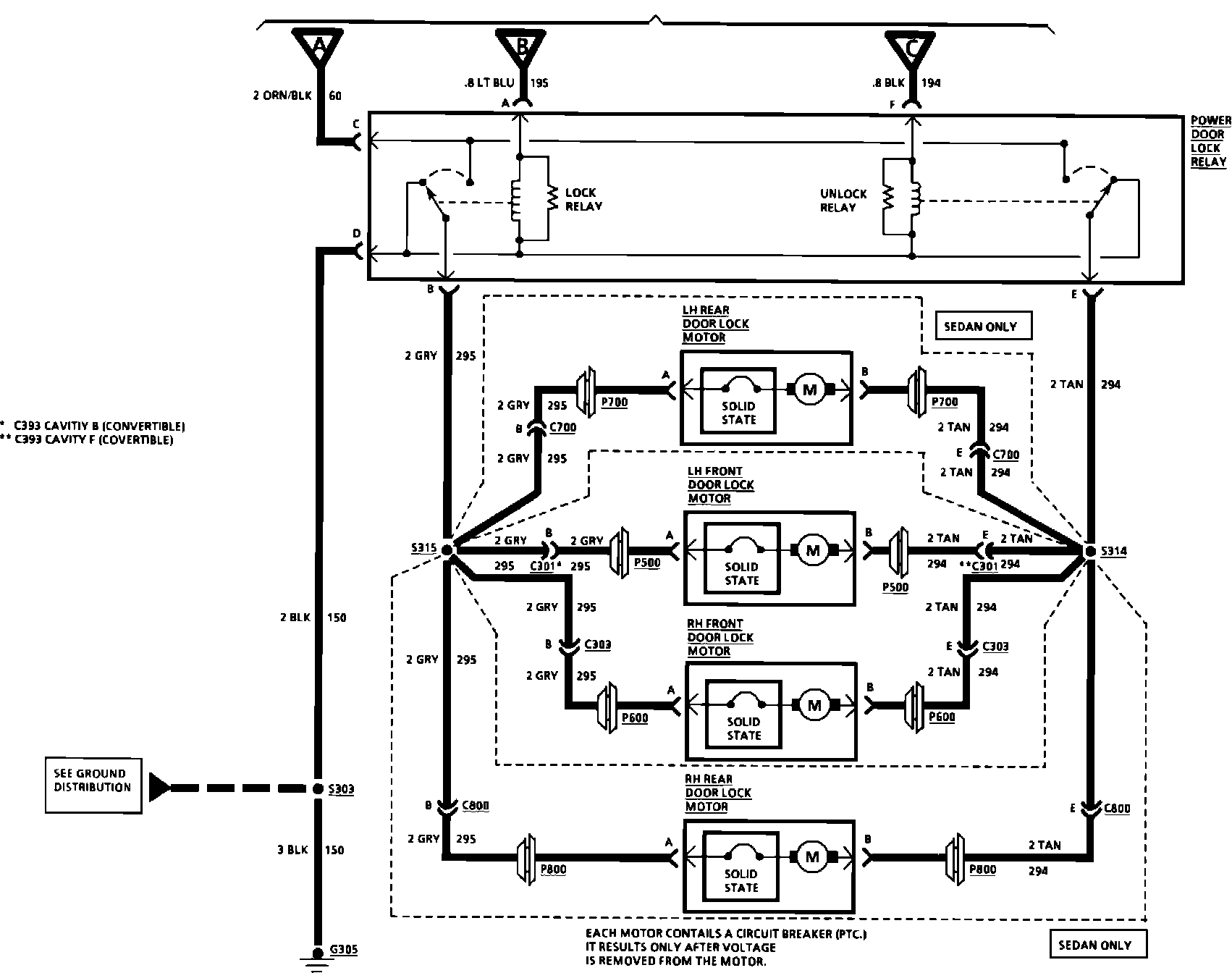

Power Door Locks:

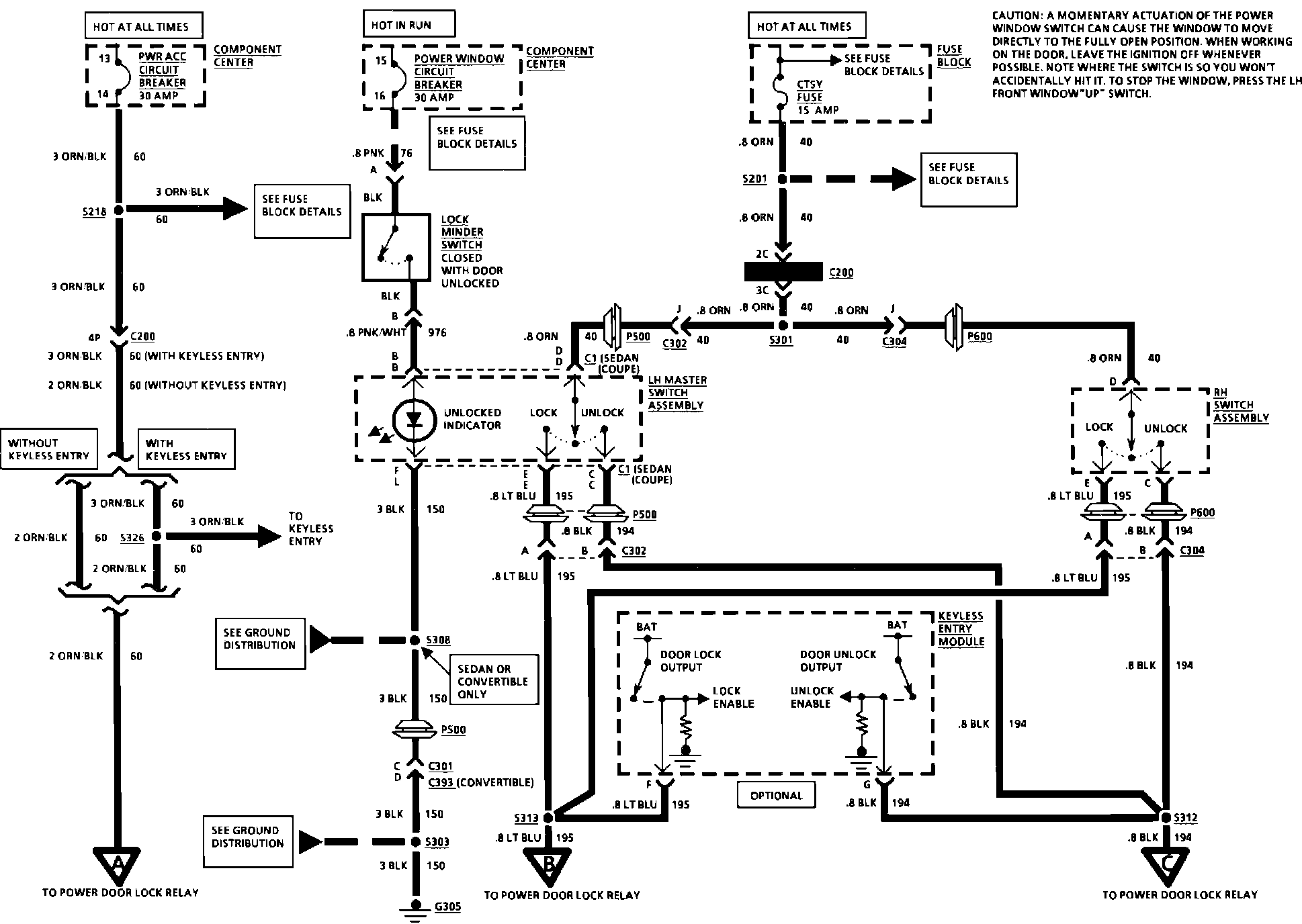

Power Door Locks (without Keyless Entry):
